Description

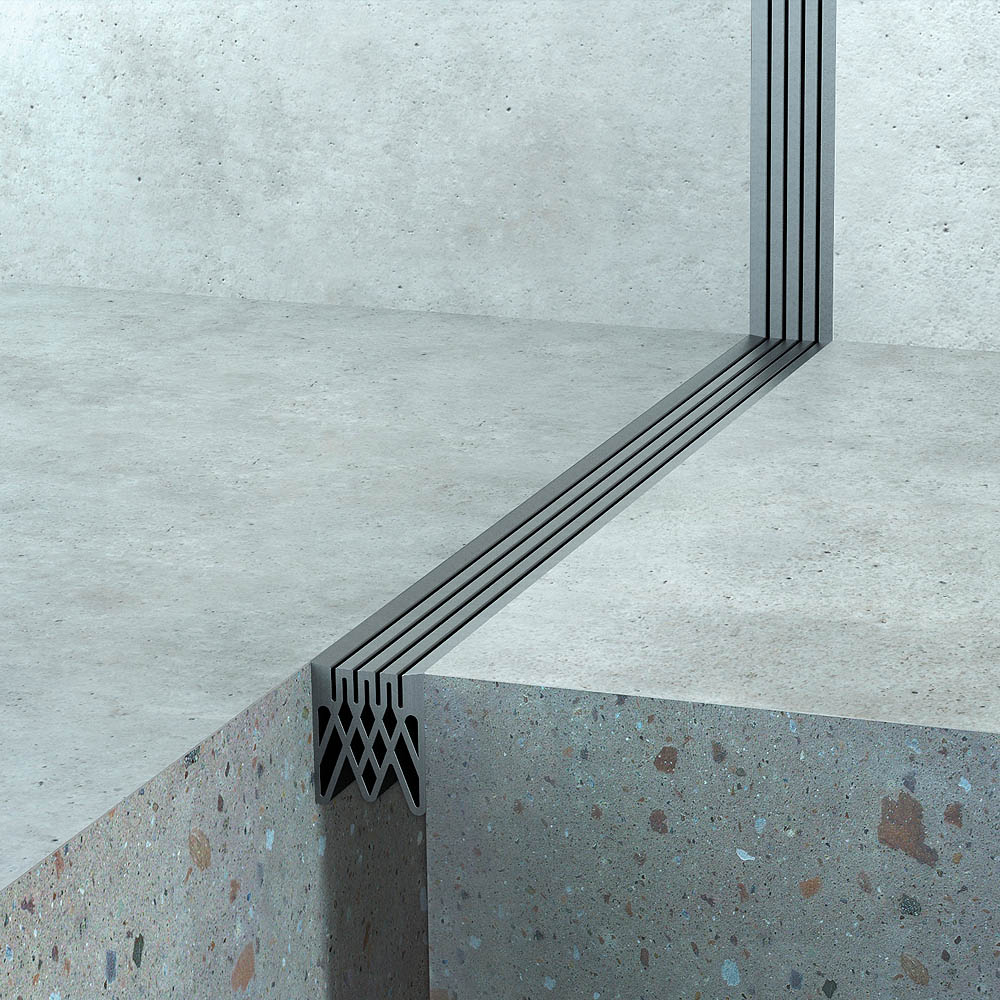

The FlexAtec 1200-A01-A02 is an ADA-compliant expansion joint with a ribbed slip-resistant surface and 120-minute fire resistance with a fire barrier (optional).

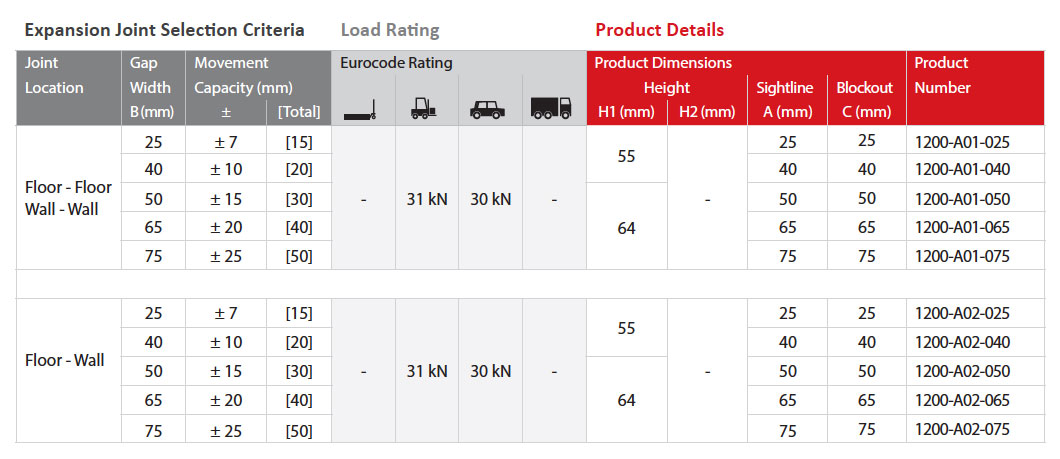

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |

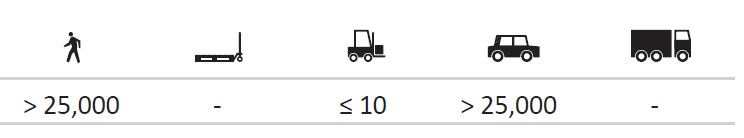

Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

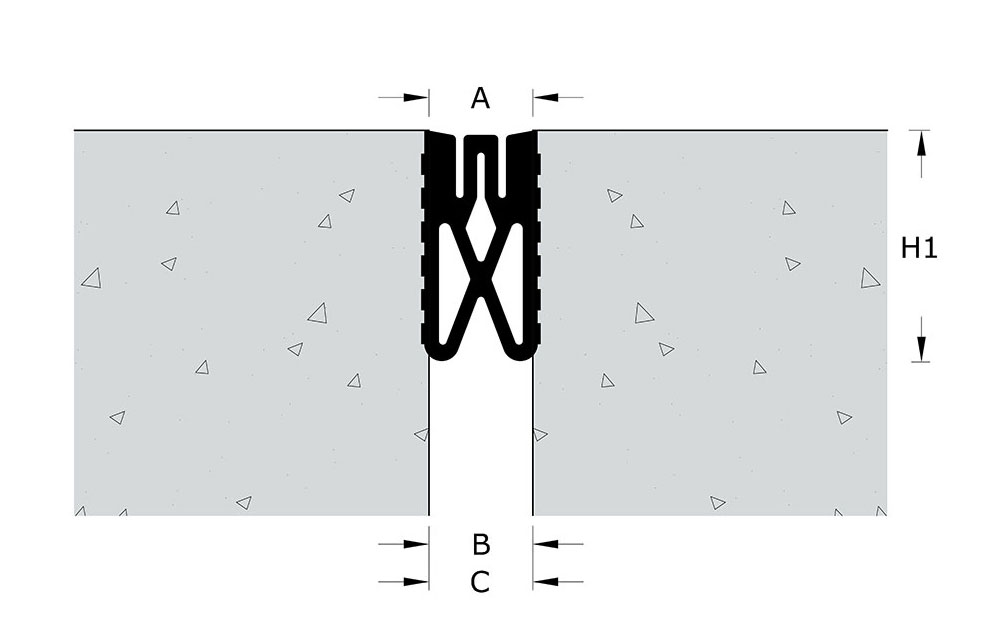

| Floor – Floor Wall – Wall |
25 | ± 7 | [15] | – | 31 kN | 30 kN | – | 55 | – | 25 | 25 | 1200-A01-025 |
| 40 | ± 10 | [20] | 40 | 40 | 1200-A01-040 | |||||||
| 50 | ± 15 | [30] | 64 | 50 | 50 | 1200-A01-050 | ||||||
| 65 | ± 20 | [40] | 65 | 65 | 1200-A01-065 | |||||||
| 75 | ± 25 | [50] | 75 | 75 | 1200-A01-075 | |||||||

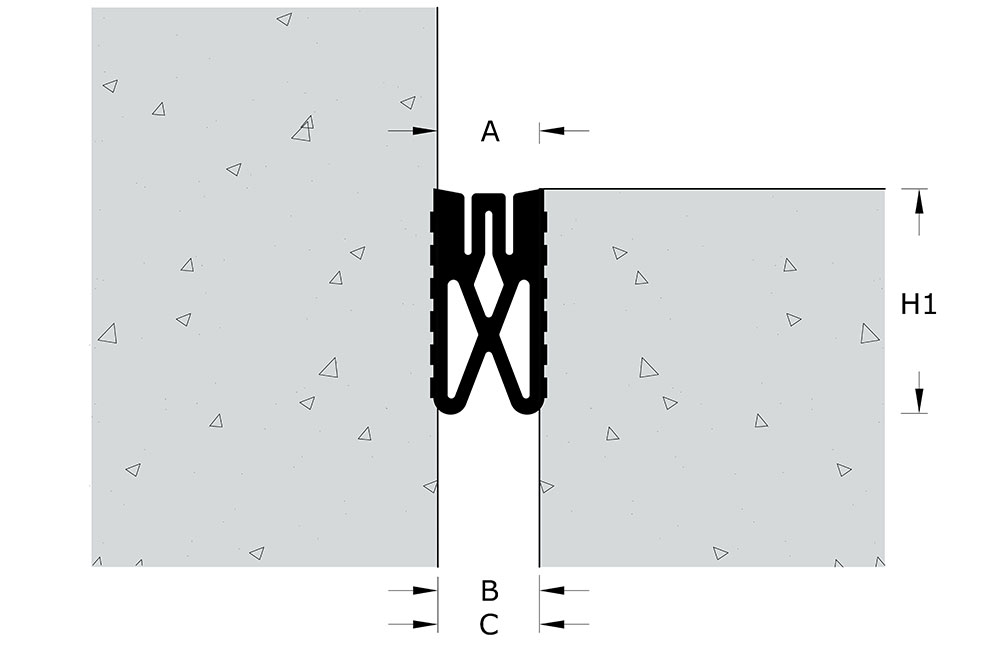

| Floor – Wall | 25 | ± 7 | [15] | – | 31 kN | 30 kN | – | 55 | – | 25 | 25 | 1200-A02-025 |
| 40 | ± 10 | [20] | 40 | 40 | 1200-A02-040 | |||||||
| 50 | ± 15 | [30] | 64 | 50 | 50 | 1200-A02-050 | ||||||
| 65 | ± 20 | [40] | 65 | 65 | 1200-A02-065 | |||||||
| 75 | ± 25 | [50] | 75 | 75 | 1200-A02-075 | |||||||
