Description
MaxAtec 130-A01: aluminium single-seal EPDM floor expansion joint. Gap widths 25–50 mm, ADA, fire-rated up to 240 min. Stainless steel or brass capping.

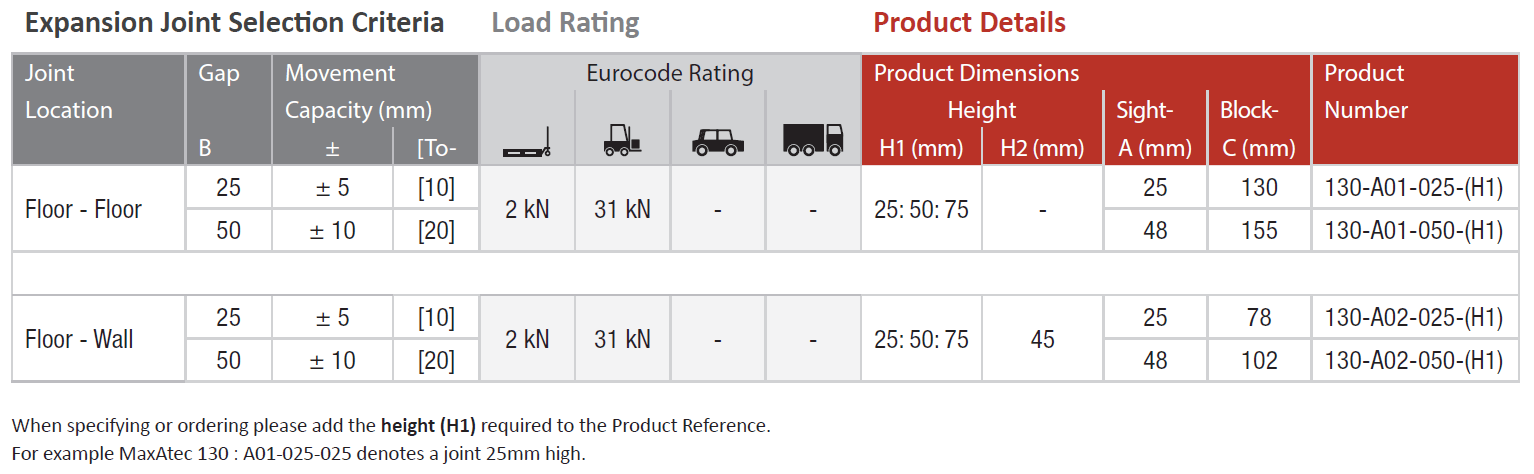

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

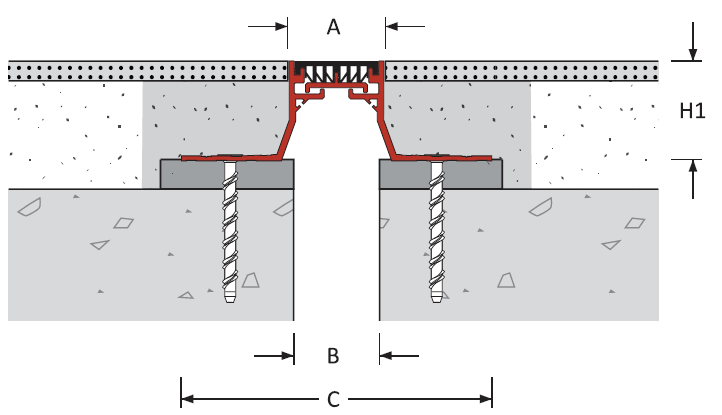

| Floor – Floor | 025 | ± 5 | [10] | 2 kN | 31 kN | – | – | 25: 50: 75 | – | 25 | 130 | 130-A01-025-(H1) |
| 050 | ± 10 | [20] | 48 | 155 | 130-A01-050-(H1) | |||||||

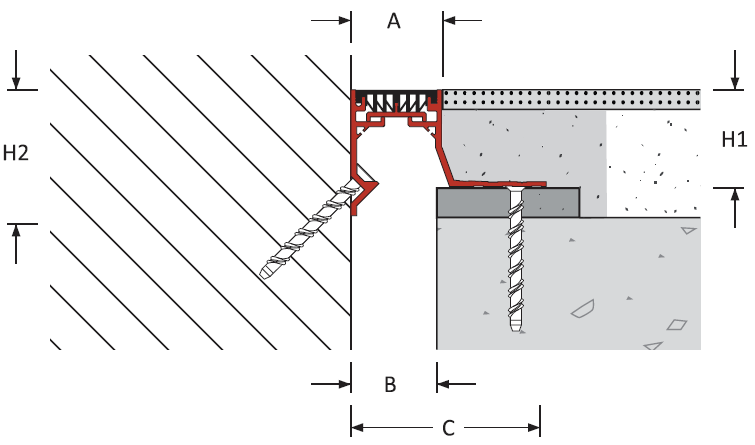

| Floor – Wall | 025 | ± 5 | [10] | 2 kN | 31 kN | – | – | 25: 50: 75 | 45 | 25 | 78 | 130-A02-025-(H1) |
| 050 | ± 10 | [20] | 48 | 102 | 130-A02-050-(H1) | |||||||
When specifying or ordering please add the height (H1) required to the Product Reference.
For example MaxAtec 130 : A01-025-025 denotes a joint 25mm high.
