Description

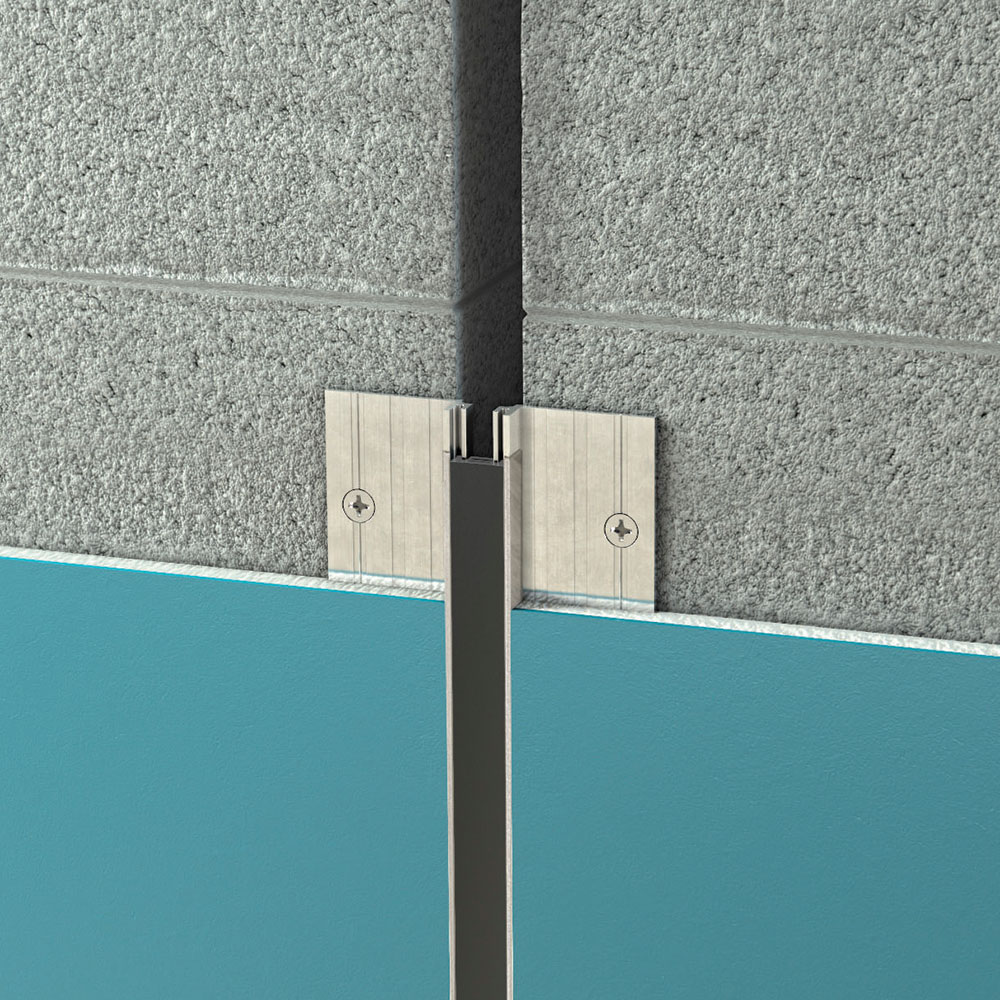

MaxAtec 130-S07/S09: stainless steel-capped aluminium wall expansion joint with EPDM seal and smooth surface. ASTM E-1399 Class I & II rated.

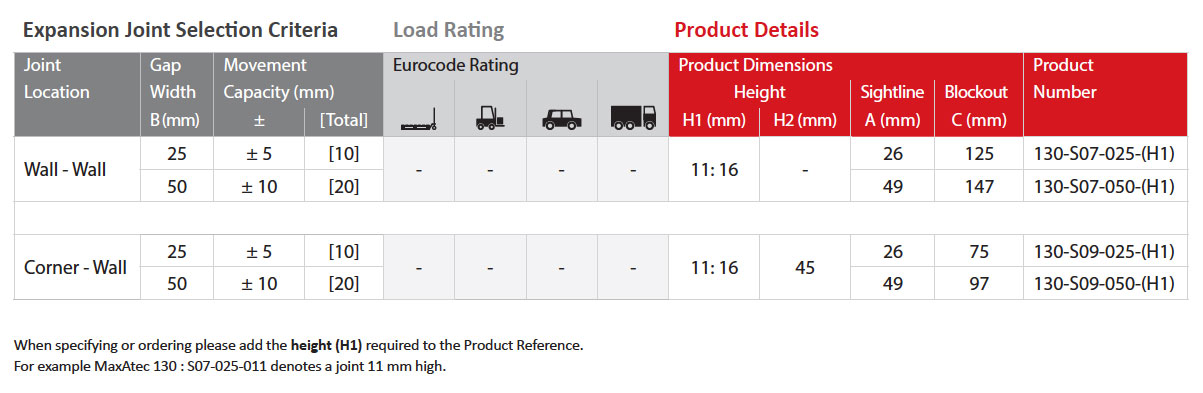

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

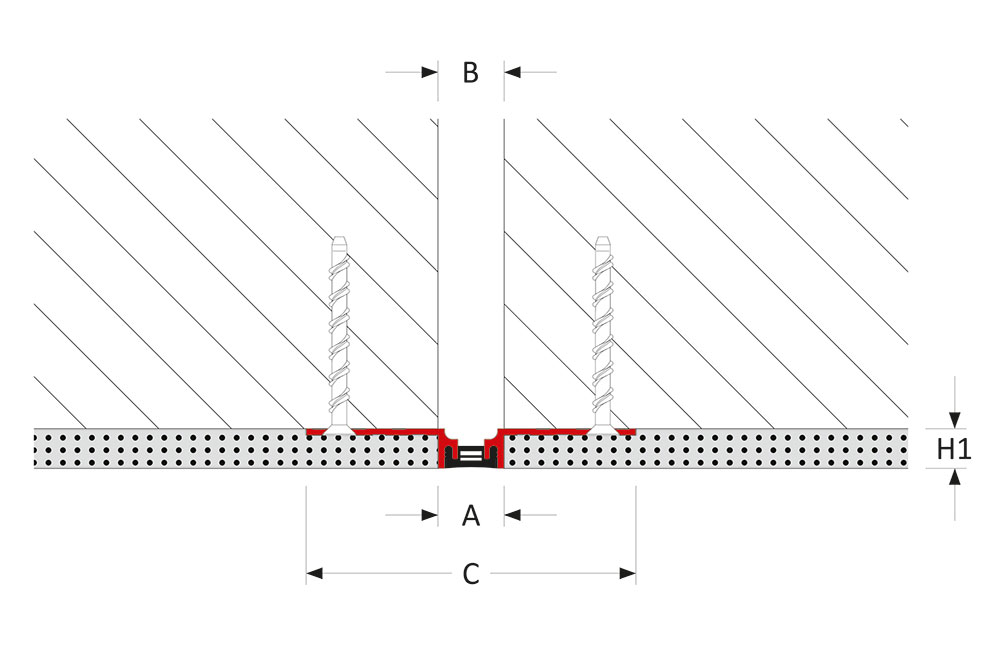

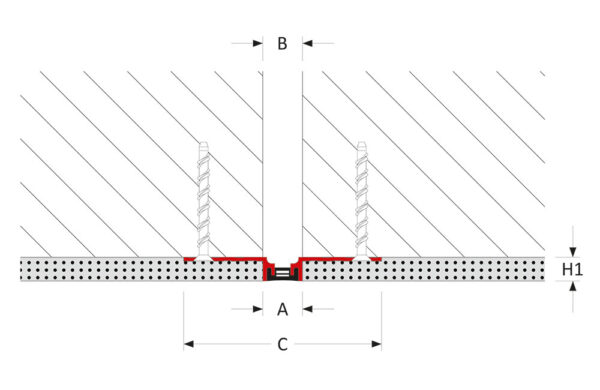

| Wall – Wall | 025 | ± 5 | [10] | – | – | – | – | 11: 16 | – | 26 | 125 | 130-S07-025-(H1) |
| 050 | ± 10 | [20] | 49 | 147 | 130-S07-050-(H1) | |||||||

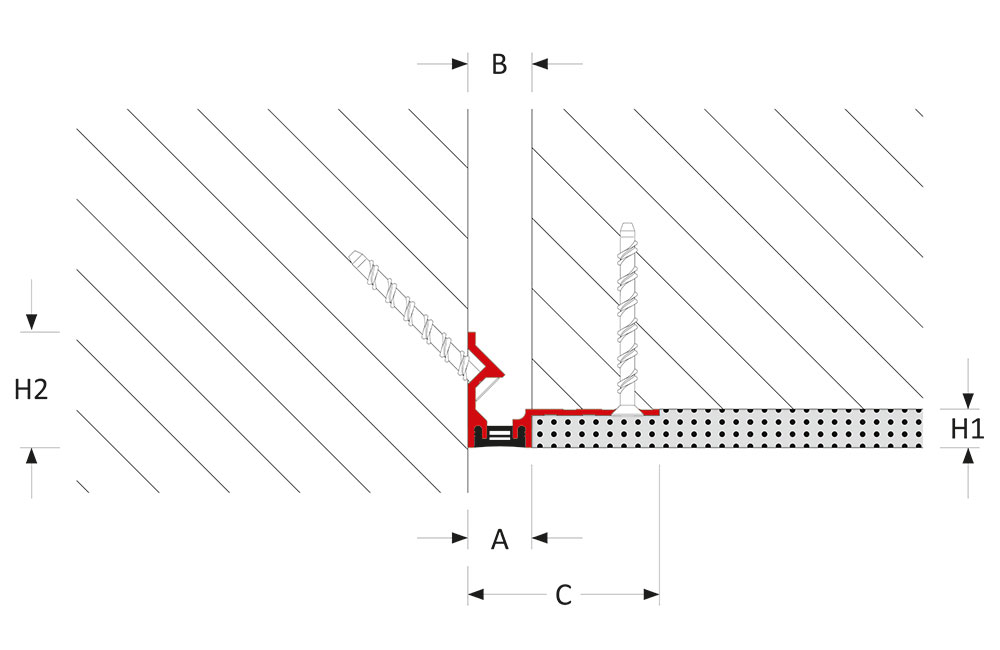

| Corner – Wall | 025 | ± 5 | [10] | – | – | – | – | 11: 16 | 45 | 26 | 75 | 130-S09-025-(H1) |
| 050 | ± 10 | [20] | 49 | 97 | 130-S09-050-(H1) | |||||||
When specifying or ordering please add the height (H1) required to the Product Reference.
For example MaxAtec 130 : S07-025-011 denotes a joint 11 mm high.
