Description

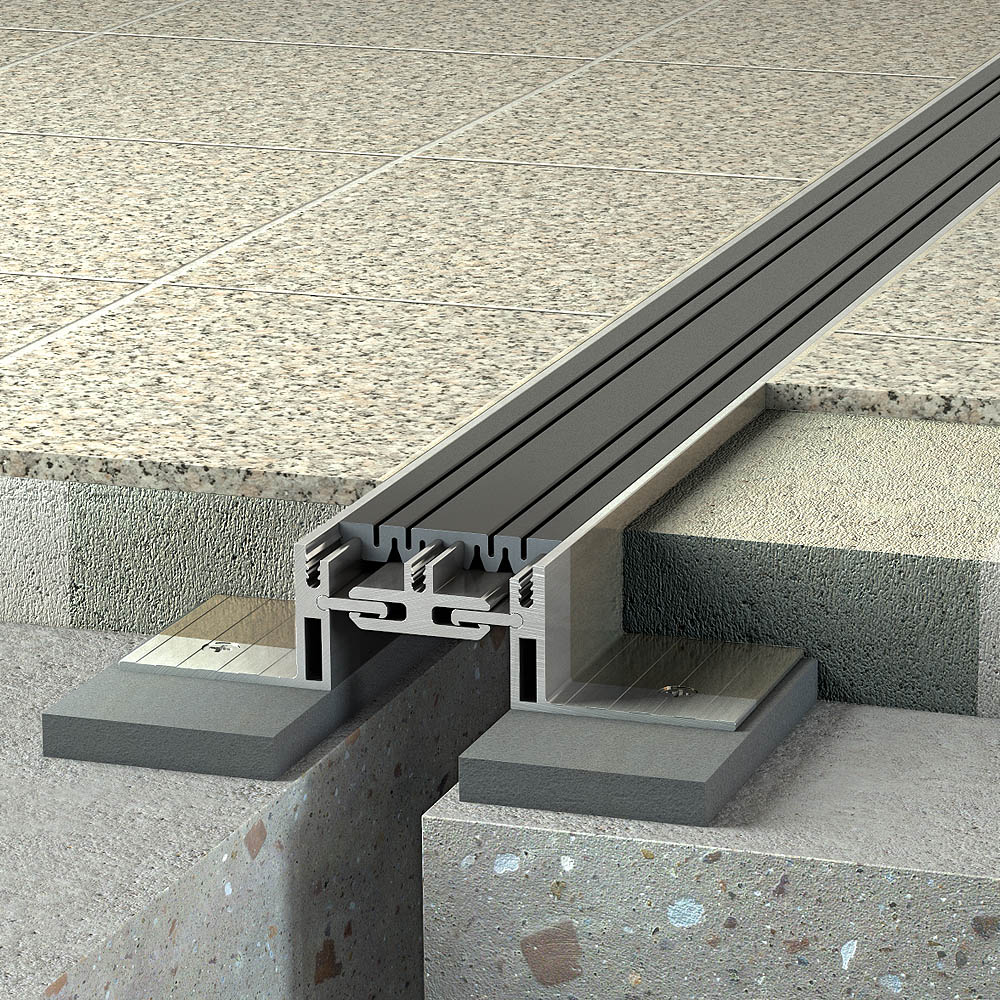

MaxAtec 140-A01: single-seal floor joint with ribbed slip-resistant surface. Gap widths 25–100 mm, high movement capacity, fire-rated up to 240 min.

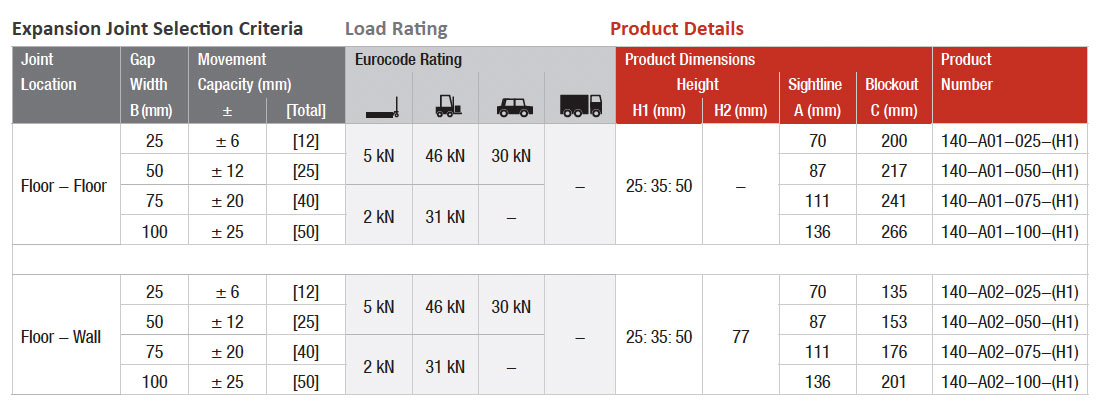

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |

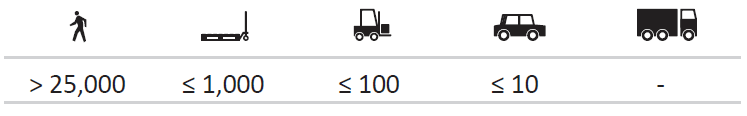

Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

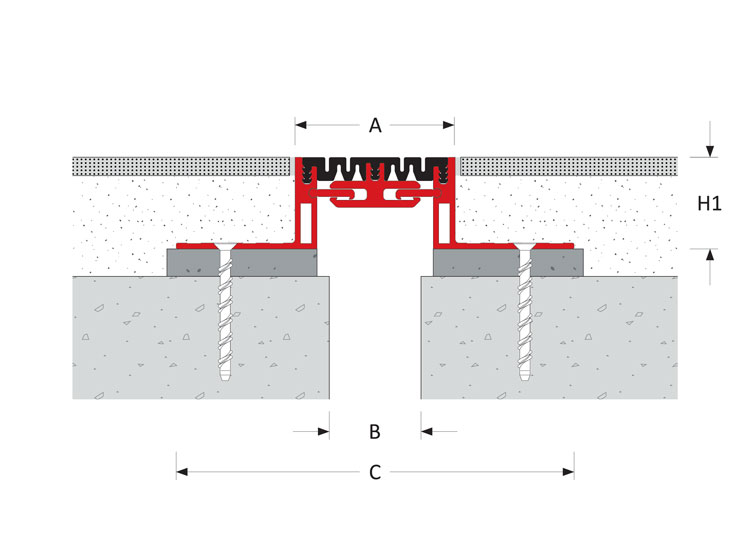

| Floor – Floor | 025 | ± 6 | [12] | 5 kN | 46 kN | 30 kN | – | 25: 35: 50 | – | 70 | 200 | 140-A01-025-(H1) |
| 050 | ± 12 | [25] | 87 | 217 | 140-A01-050-(H1) | |||||||
| 075 | ± 20 | [40] | 2 kN | 31 kN | – | 111 | 241 | 140-A01-075-(H1) | ||||
| 100 | ± 25 | [50] | 136 | 266 | 140-A01-100-(H1) | |||||||

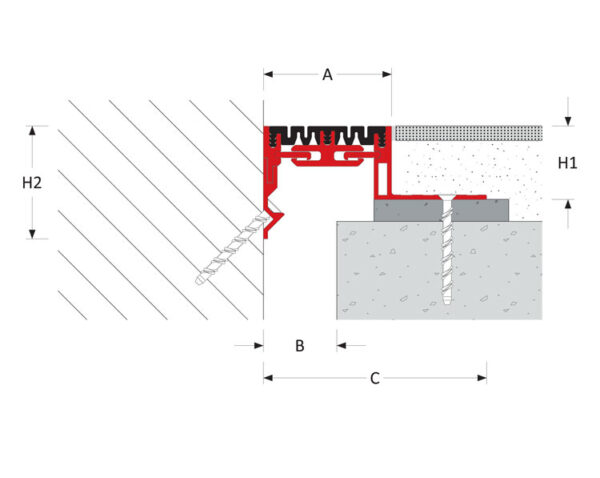

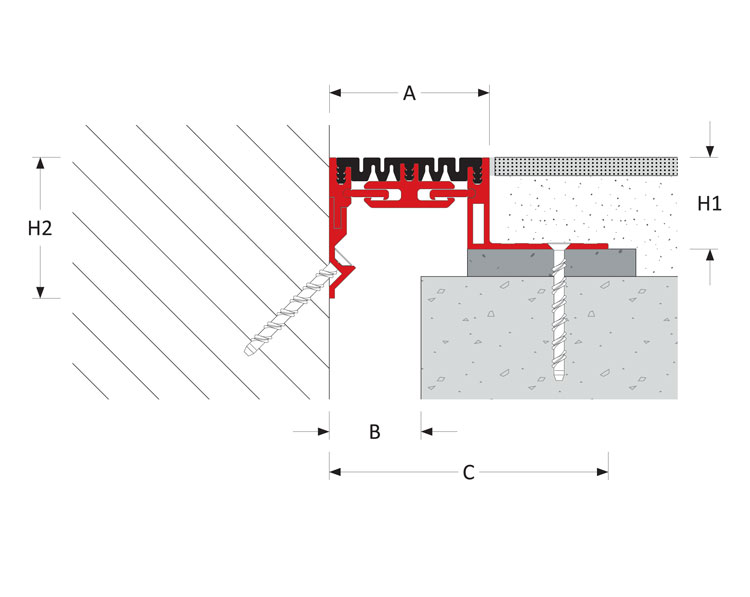

| Floor – Wall | 025 | ± 6 | [12] | 5 kN | 46 kN | 30 kN | – | 25: 35: 50 | 77 | 70 | 135 | 140-A02-025-(H1) |
| 050 | ± 12 | [25] | 87 | 153 | 140-A02-050-(H1) | |||||||
| 075 | ± 20 | [40] | 2 kN | 31 kN | – | 111 | 176 | 140-A02-075-(H1) | ||||
| 100 | ± 25 | [50] | 136 | 201 | 140-A02-100-(H1) | |||||||
