Description

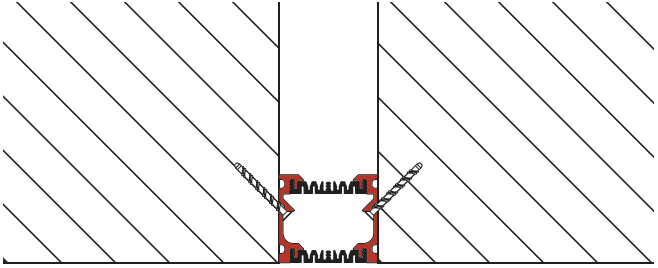

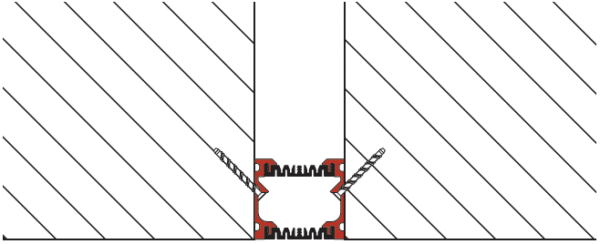

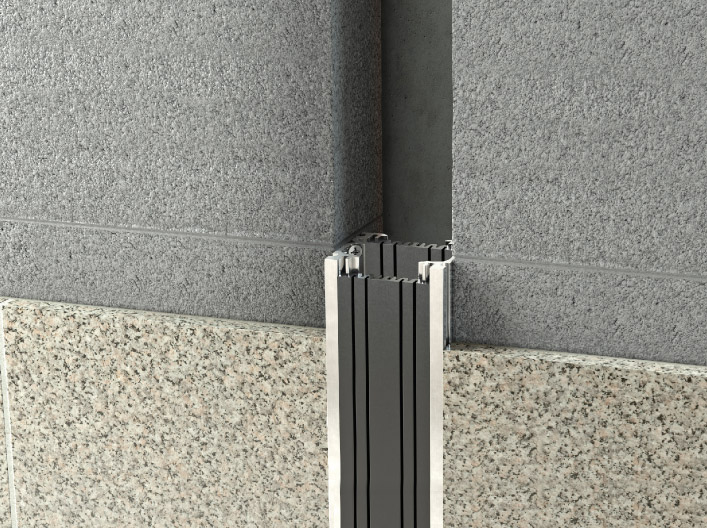

MaxAtec 161-A07/A09 – single-seal wall expansion joint with high and seismic movement capacity. Gap widths between 100–150 mm, 120-min with a fire barrier.

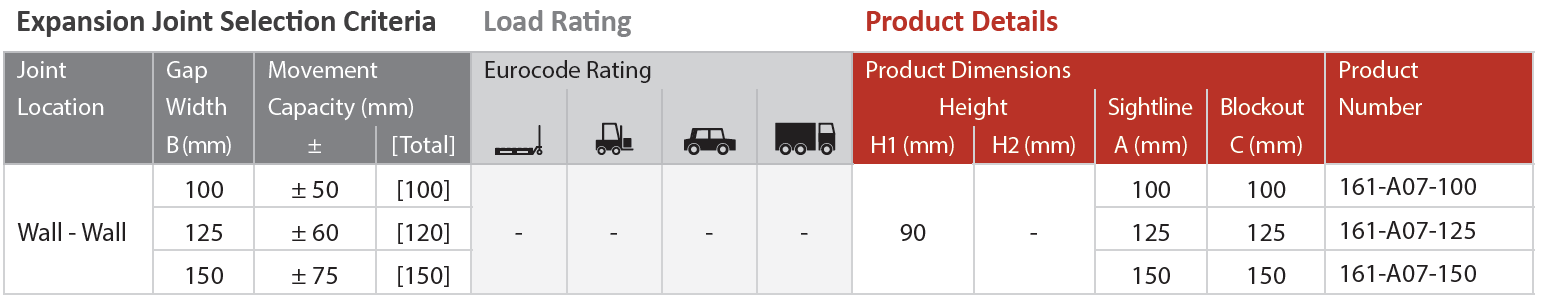

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||
| Wall – Wall | 100 | ± 50 | [100] | – | – | – | – | 90 | – | 100 | 100 | 161-A07-100 |
| 125 | ± 60 | [120] | 125 | 125 | 161-A07-125 | |||||||
| 150 | ± 75 | [150] | 150 | 150 | 161-A07-150 | |||||||
