Description

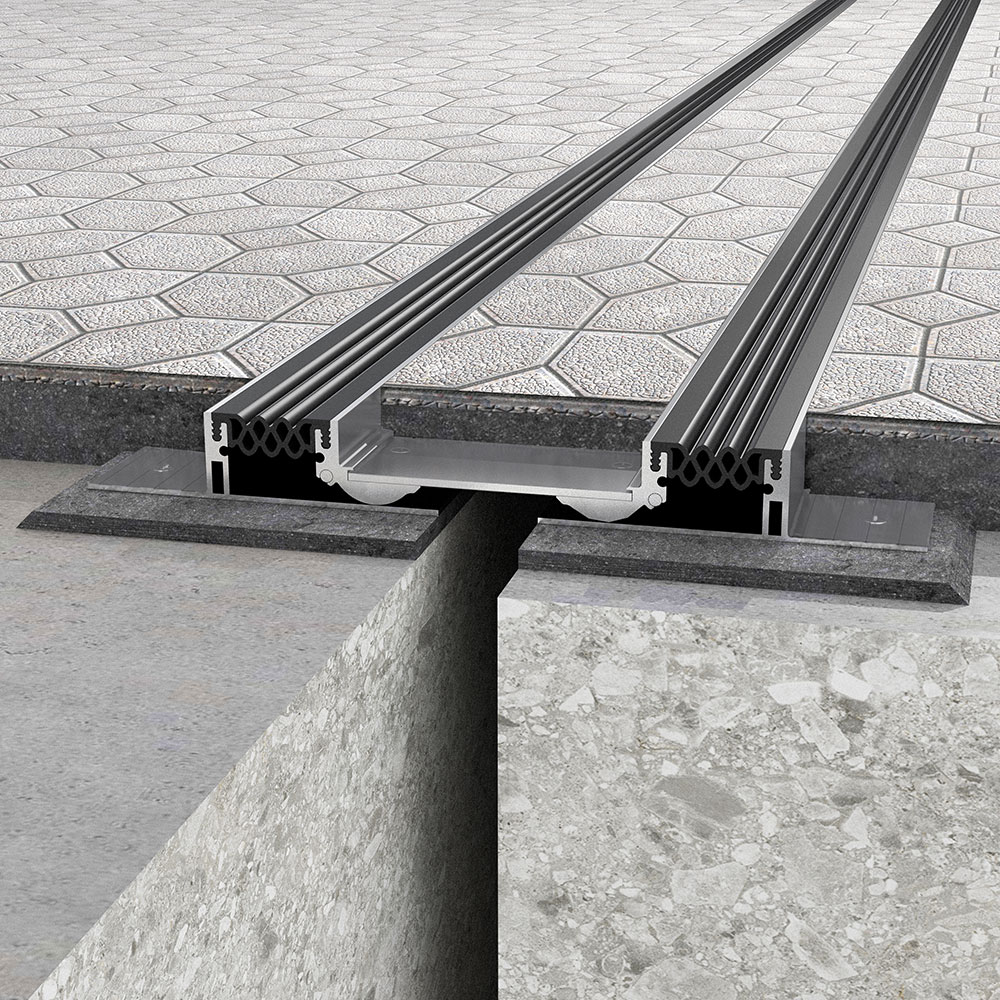

MaxAtec 205-A01/A02: recessed floor expansion joint, gap widths 50–150 mm, ribbed slip-resistant surface, ADA compliant, ASTM E-1399 rated.

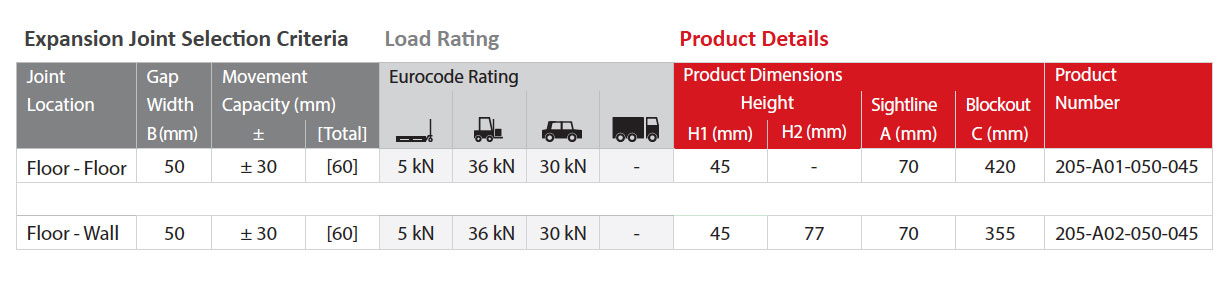

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

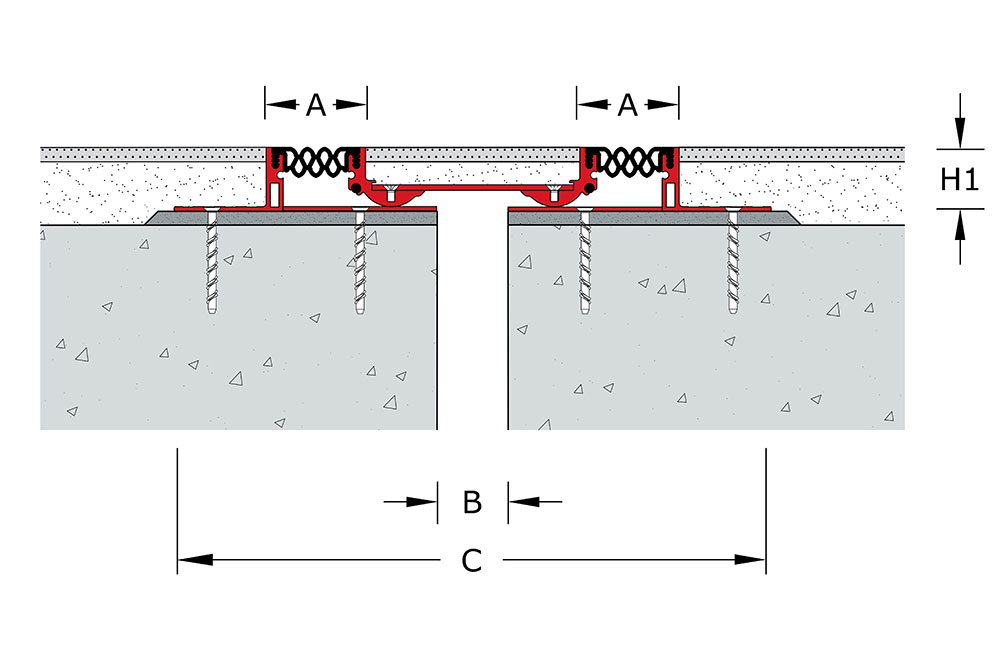

| Floor – Floor | 050 | ± 30 | [60] | 5 kN | 36 kN | 30 kN | – | 45 | – | 70 | 420 | 205-A01-050-045 |

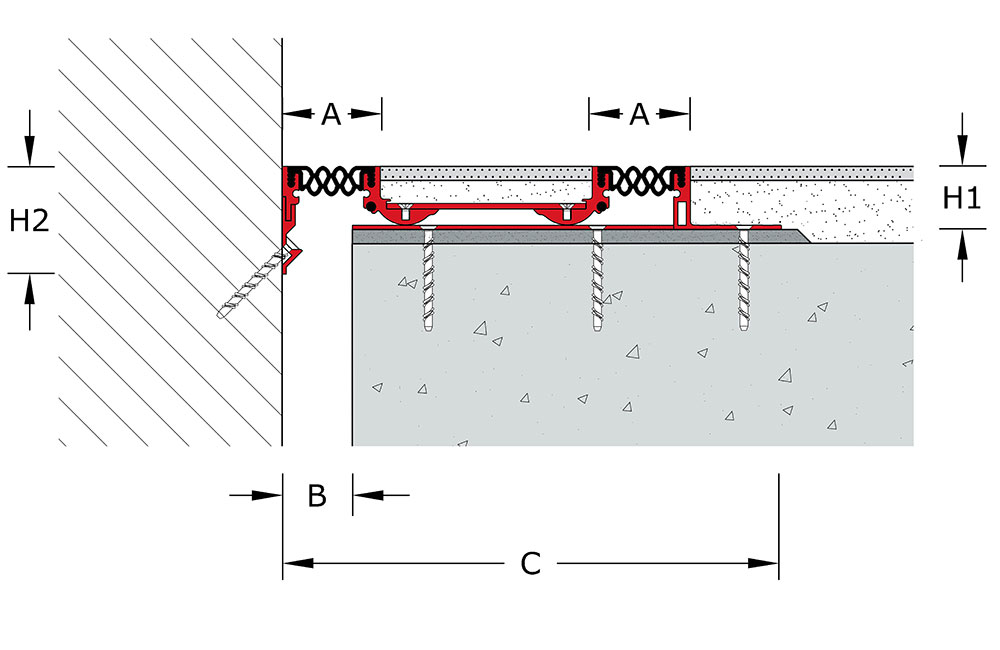

| Floor – Wall | 050 | ± 30 | [60] | 5 kN | 36 kN | 30 kN | – | 45 | 77 | 70 | 355 | 205-A02-050-045 |
