MegAtec 340-A07-A09 - metal expansion joint

MegAtec 340-A07-A09

MegAtec 340-A07-A09

Surface
Raised surface

Movement
Seismic movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind
Class III: Seismic

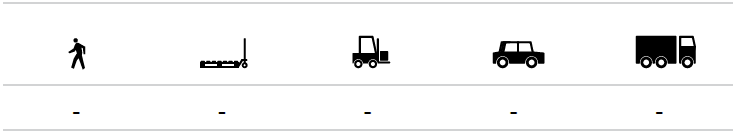

Traffic Frequency per day

Downloads

Request Price/Sample

Category: MegAtec Wall Tag: MegAtec

Description
Additional information

Description

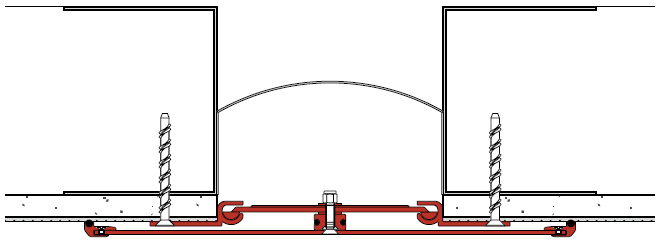

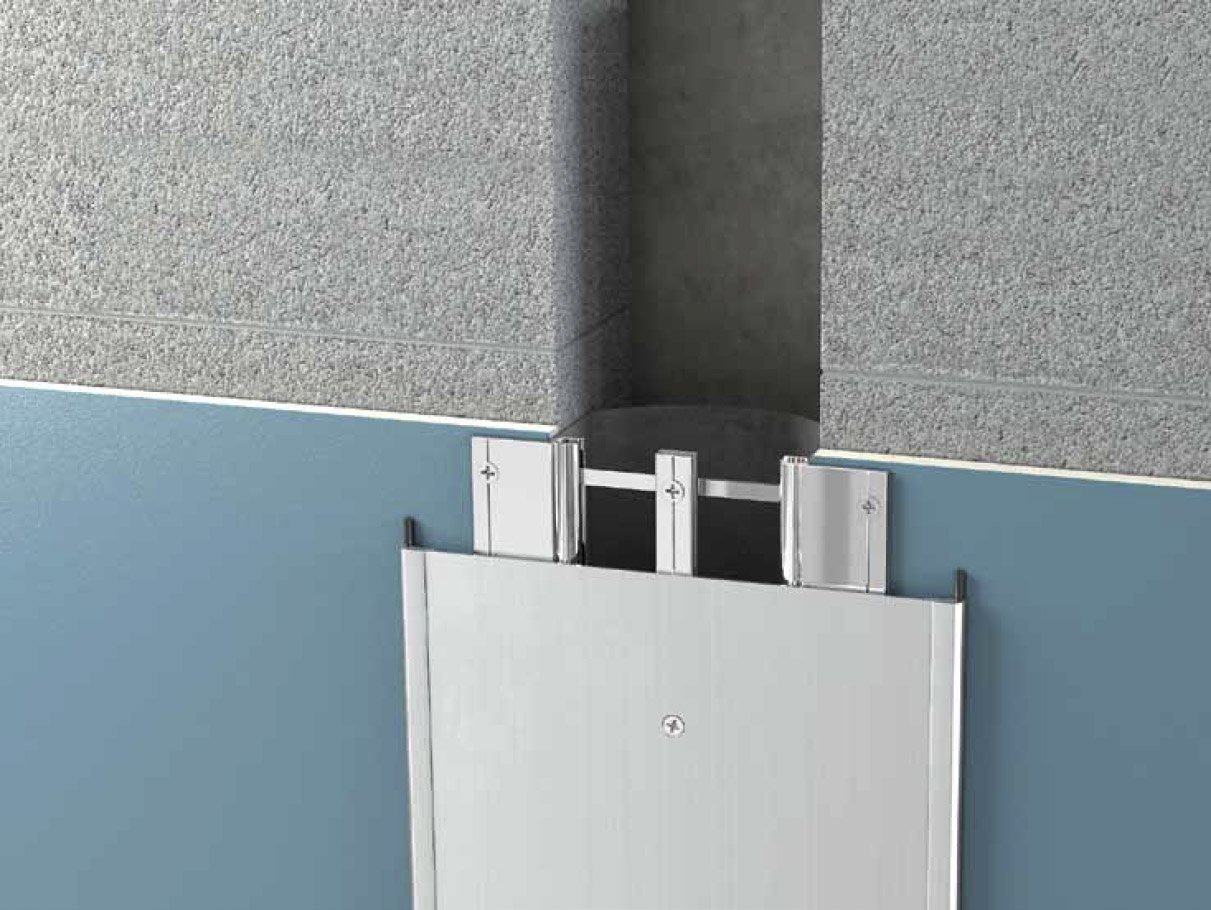

MegAtec 340-A07/A09 is a metal expansion joint for wall to wall and corner wall applications.

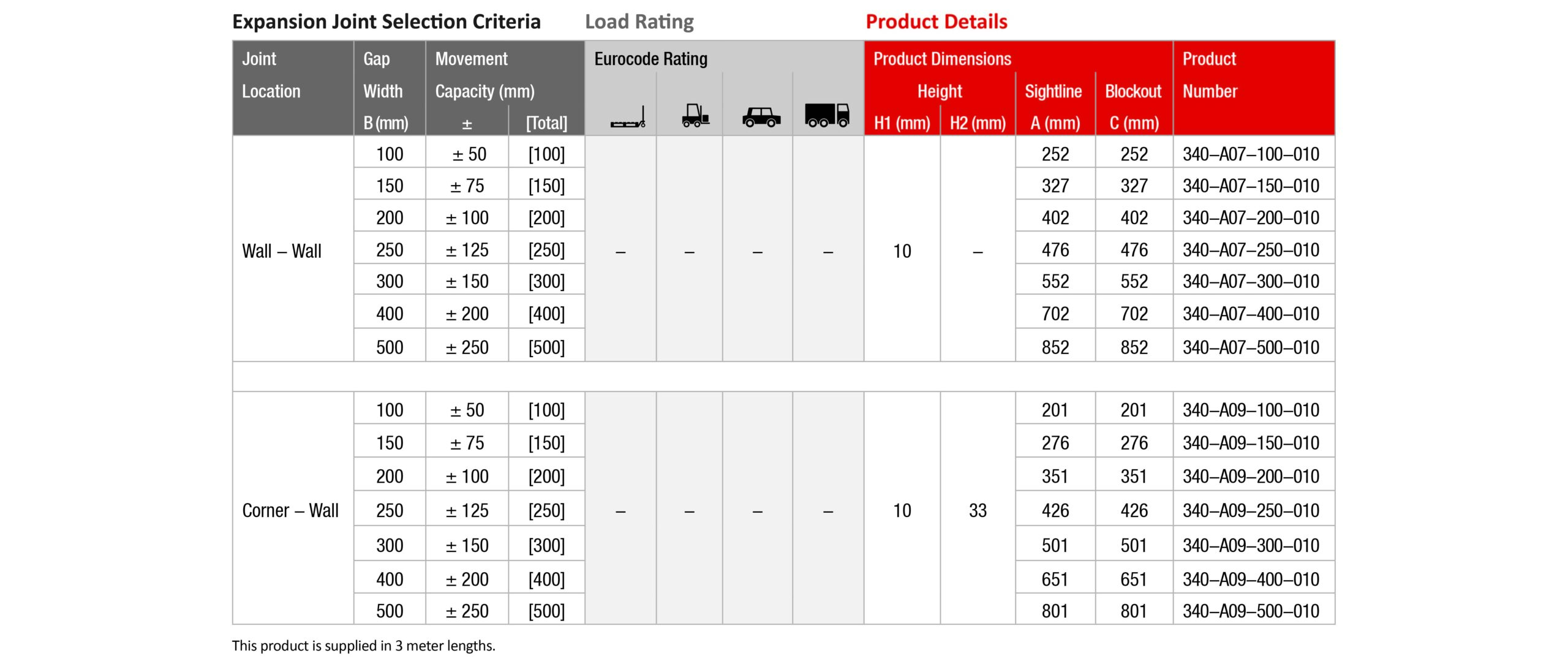

Expansion Joint Selection Criteria				Load Rating				Product Details
Joint Location	Gap Width B (mm)	Movement Capacity (mm)		Eurocode Rating				Product Dimensions Height		Sightline A (mm)	Blockout C (mm)	Product Number
Joint Location	Gap Width B (mm)	±	[Total]					H1 (mm)	H2 (mm)	Sightline A (mm)	Blockout C (mm)	Product Number
Wall – Wall	100	± 50	[100]	–	–	–	–	10	–	252	252	340-A07-100-010
	150	± 75	[150]							327	327	340-A07-150-010
	200	± 100	[200]							402	402	340-A07-200-010
	250	± 125	[250]							476	476	340-A07-250-010
	300	± 150	[300]							552	552	340-A07-300-010
	400	± 200	[400]							702	702	340-A07-400-010
	500	± 250	[500]							852	852	340-A07-500-010

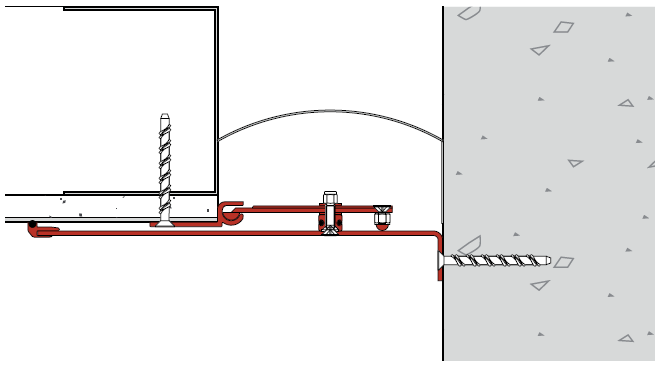

Corner – Wall	100	± 50	[100]	–	–	–	–	10	33	201	201	340-A09-100-010
	150	± 75	[150]							276	276	340-A09-150-010
	200	± 100	[200]							351	351	340-A09-200-010
	250	± 125	[250]							426	426	340-A09-250-010
	300	± 150	[300]							501	501	340-A09-300-010
	400	± 200	[400]							651	651	340-A09-400-010
	500	± 250	[500]							801	801	340-A09-500-010

This product is supplied in 3 meter lengths.

Additional information

Gap width(s)	100, 150, 200, 250, 300, 400, 500 mm
Height(s)	10 mm
Metal type(s)	Aluminium (6063 T5 & T6)
Colours	20/25 micron clear satin Anodised finish aluminium
Fire barrier	120 minutes
Waterproofing	Moisture barrier
Pre-assembly in factory	Contact Vexcolt
