MegAtec 350 A01 | Heavy-Duty Seismic Floor Expansion Joint

  1. Home
  2. MegAtec
  3. MegAtec 350-A01-A02
MegAtec 350-A01-A02
MegAtec 350-A01-A02 - Image 2
MegAtec 350-A01-A02 - Image 3

MegAtec 350-A01-A02

Surface
Smooth transit
Hairline serrated surface for improved slip resistance
Americans with Disabilities Act (ADA) compliant across the entire movement cycle

Movement
Seismic movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind
Class III: Seismic

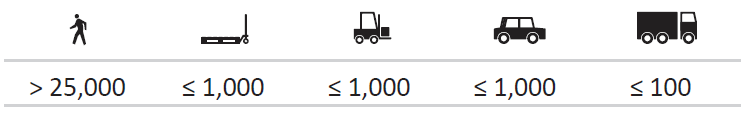

Traffic Frequency per day

Downloads





Specials
Custom-made solutions are available for this product.

Request Price/Sample

Request a Vexcolt sample

Category: Tag:

Description

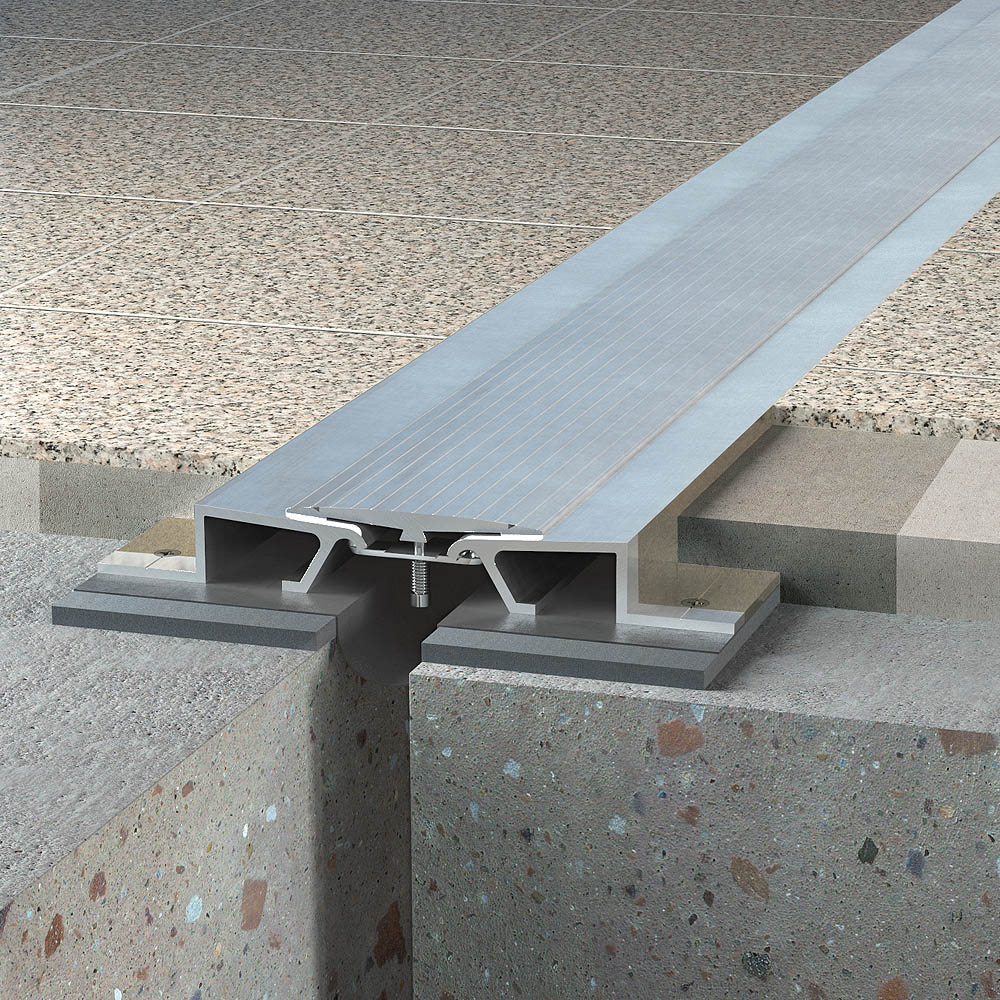

MegAtec 350 A01 is a heavy-duty aluminium floor expansion joint for 50–150 mm joint widths, offering seismic capacity, smooth transit and high load.

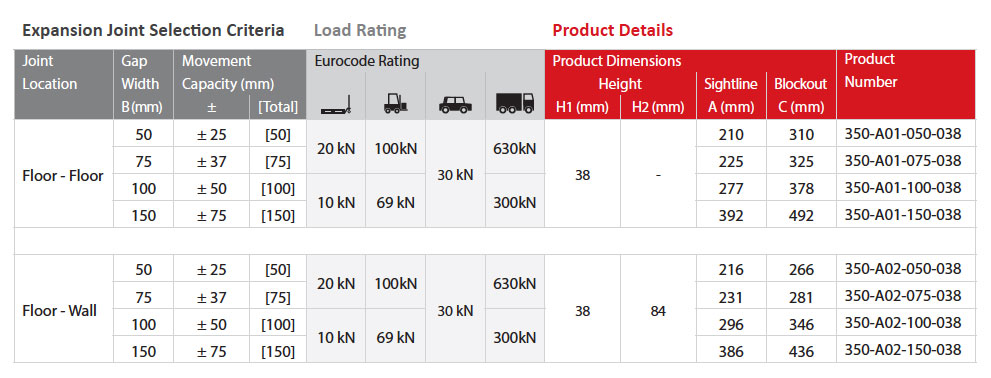

Expansion Joint Selection Criteria Load Rating Product Details
Joint
Location		 Gap
Width
B (mm)		 Movement
Capacity (mm)		 Eurocode Rating Product Dimensions
Height		 Sightline
A (mm)		 Blockout
C (mm)		 Product
Number
± [Total] Pallet truck Reach truck Car Truck H1 (mm) H2 (mm)

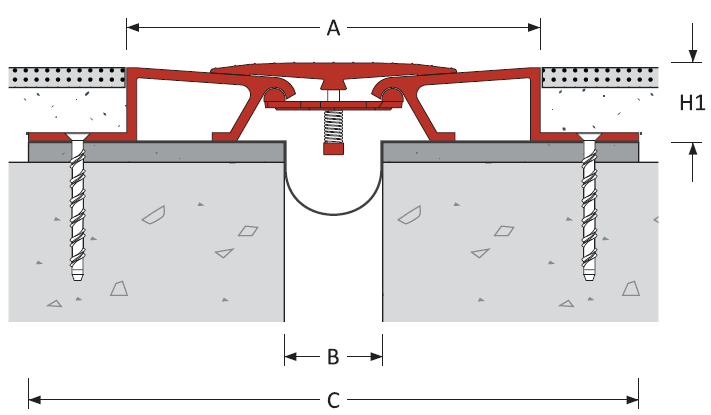

Floor – Floor 050 ± 25 [50] 20 kN 100kN 30 kN 630kN 38 – 210 310 350-A01-050-038
075 ± 37 [75] 225 325 350-A01-075-038
100 ± 50 [100] 10 kN 69 kN 300kN 277 378 350-A01-100-038
150 ± 75 [150] 392 492 350-A01-150-038

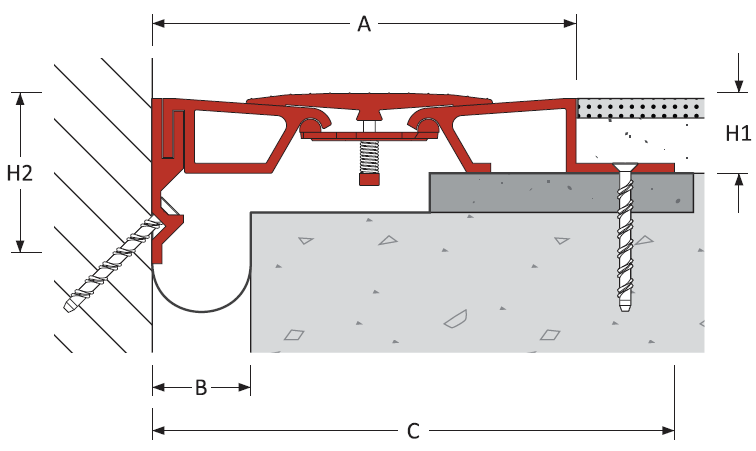

Floor – Wall 050 ± 25 [50] 20 kN 100kN 30 kN 630kN 38 84 216 266 350-A02-050-038
075 ± 37 [75] 231 281 350-A02-075-038
100 ± 50 [100] 10 kN 69 kN 300kN 296 346 350-A02-100-038
150 ± 75 [150] 386 436 350-A02-150-038

Additional information

Gap width(s)

50, 75, 100, 150 mm
Height(s)

38 mm
Metal type(s)

6063 T5 & T6 Aluminium
Fire barrier

120 minutes
Waterproofing

Moisture barrier
Pre-assembly in factory
