Description

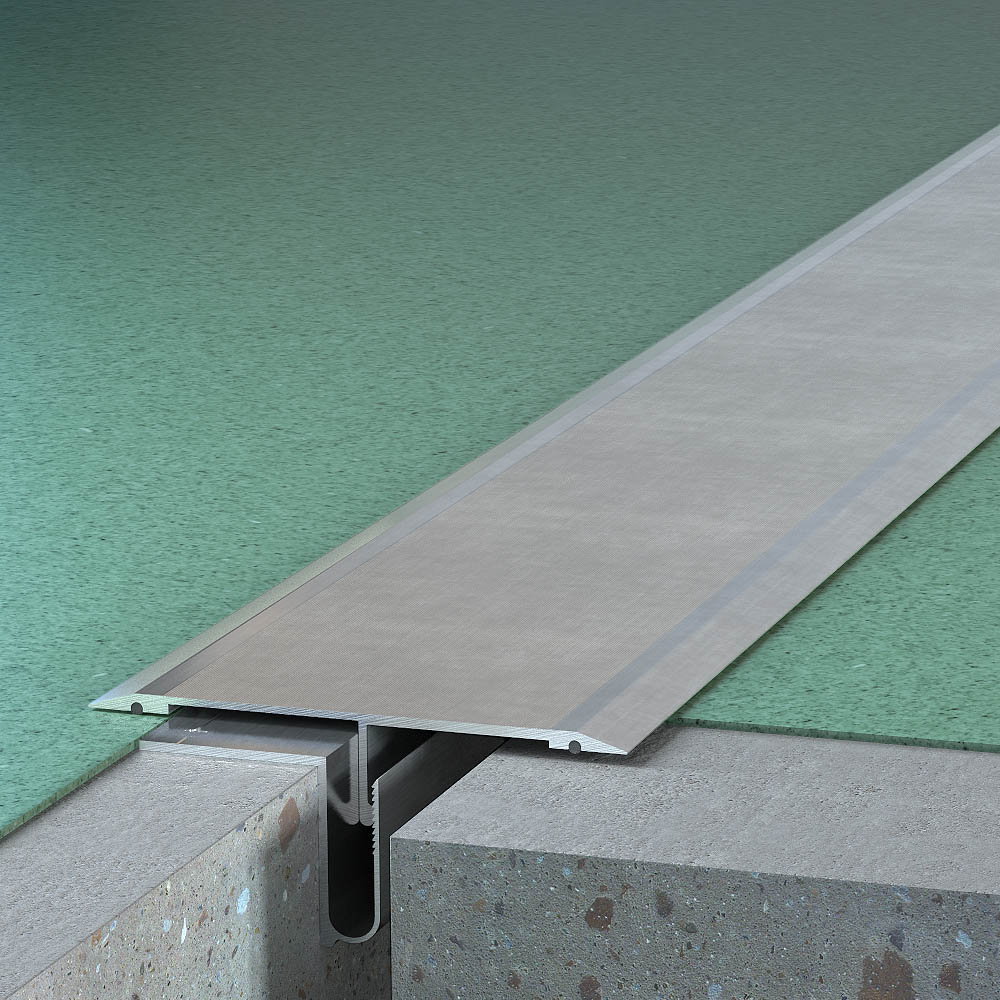

MegAtec 370 A01 A02 is a heavy-duty aluminium floor and wall expansion joint for 25–150 mm gaps, high movement capacity, smooth transit and ADA compliance.

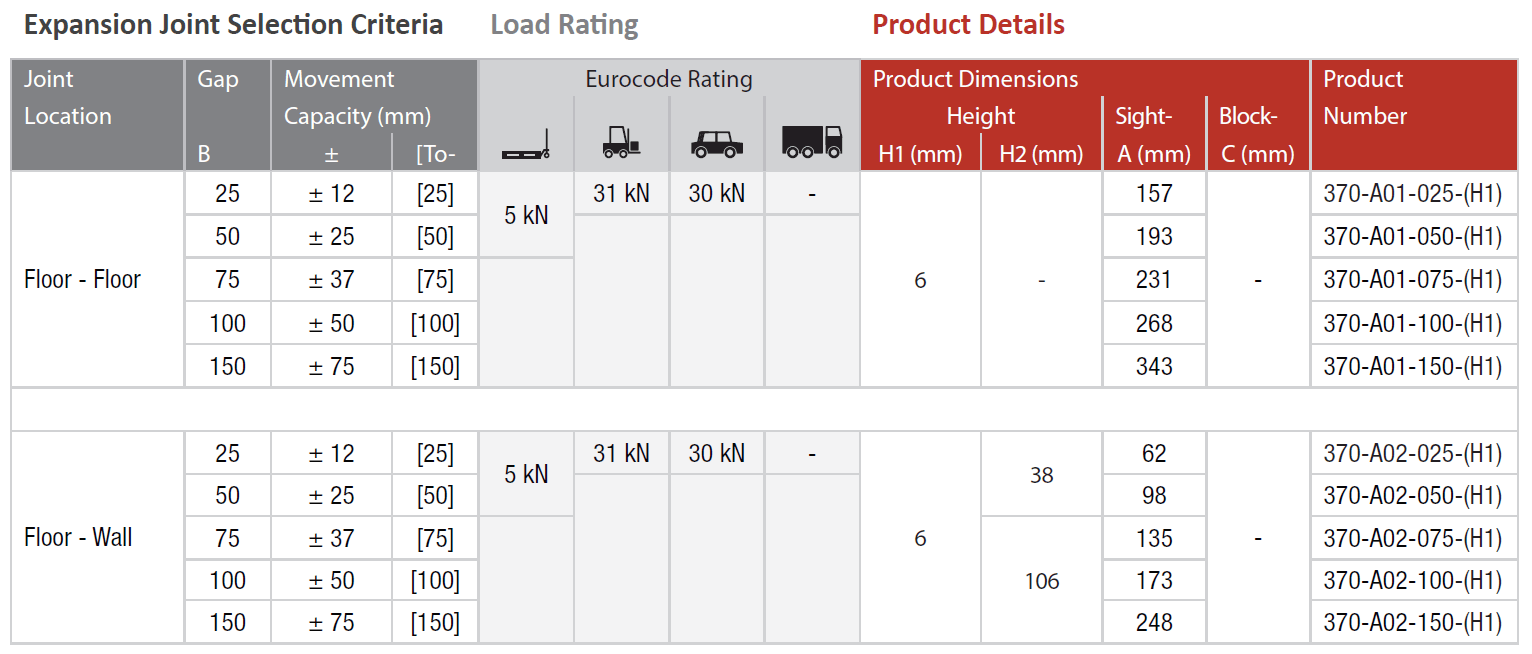

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |

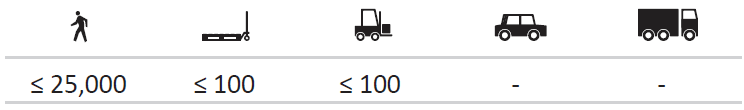

Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

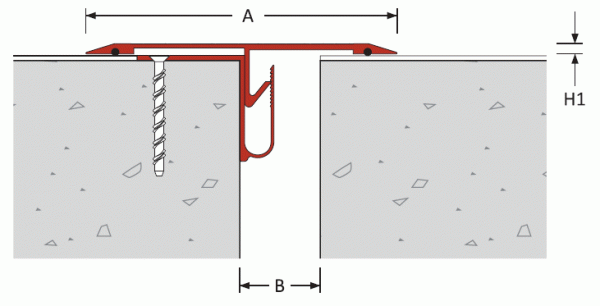

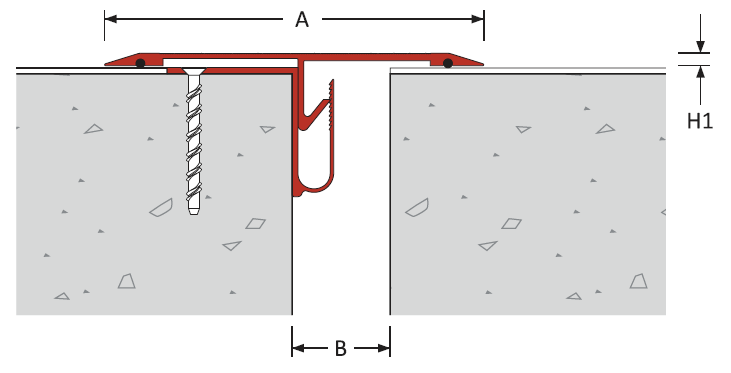

| Floor – Floor | 025 | ± 12 | [25] | 5 kN | 31 kN | 30 kN | – | 6 | – | 157 | – | 370-A01-025-(H1) |
| 050 | ± 25 | [50] | 193 | – | 370-A01-050-(H1) | |||||||
| 075 | ± 37 | [75] | 231 | – | 370-A01-075-(H1) | |||||||
| 100 | ± 50 | [100] | 268 | – | 370-A01-100-(H1) | |||||||
| 150 | ± 75 | [150] | 343 | – | 370-A01-150-(H1) | |||||||

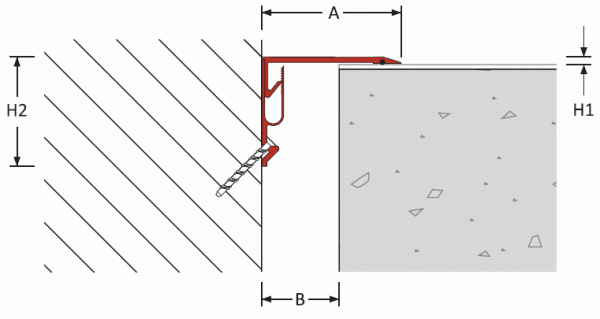

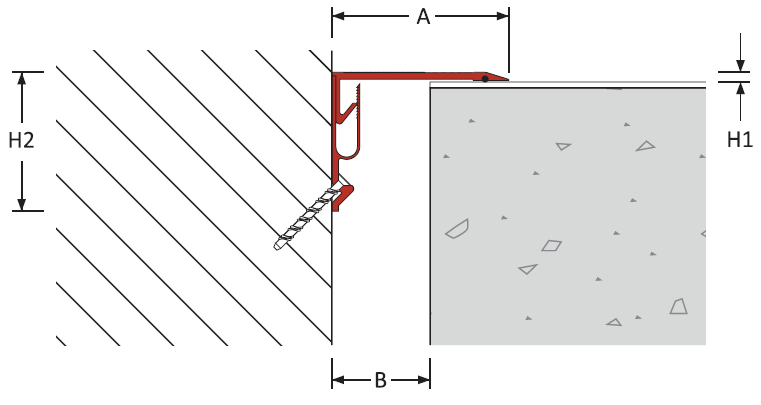

| Floor – Wall | 025 | ± 12 | [25] | 5 kN | 31 kN | 30 kN | – | 6 | 38 | 62 | – | 370-A02-025-(H1) |
| 050 | ± 25 | [50] | 98 | – | 370-A02-050-(H1) | |||||||
| 075 | ± 37 | [75] | 106 | 135 | – | 370-A02-075-(H1) | ||||||
| 100 | ± 50 | [100] | 173 | – | 370-A02-100-(H1) | |||||||
| 150 | ± 75 | [150] | 248 | – | 370-A02-150-(H1) | |||||||
