Description
The MegAtec 362-A07 is a ceiling expansion joint with aluminium cover plate, 120-minute fire barrier, and multi-directional movement accommodation.

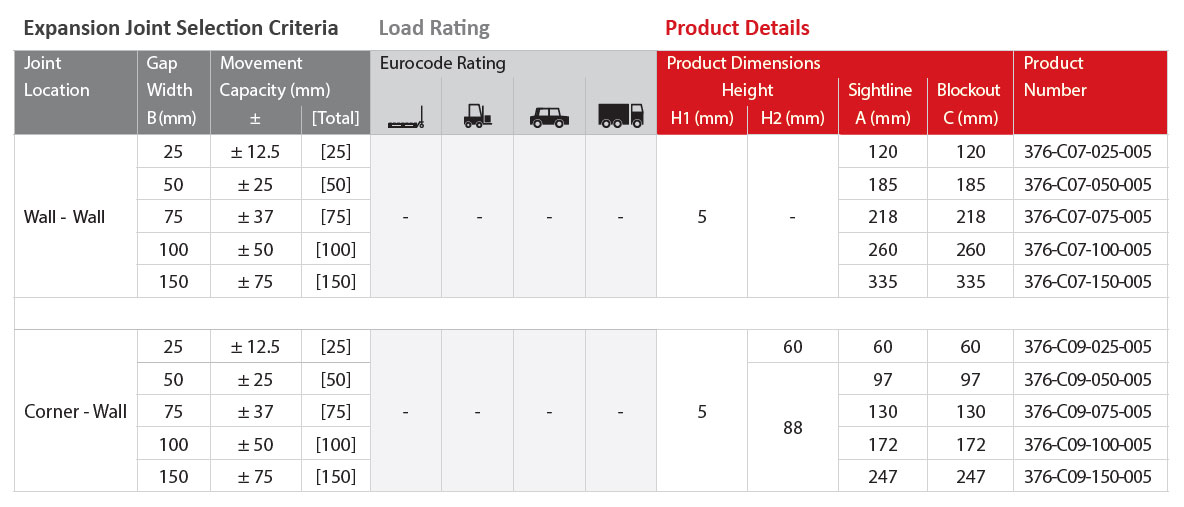

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |

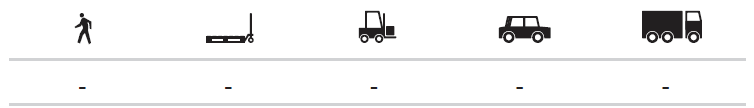

Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

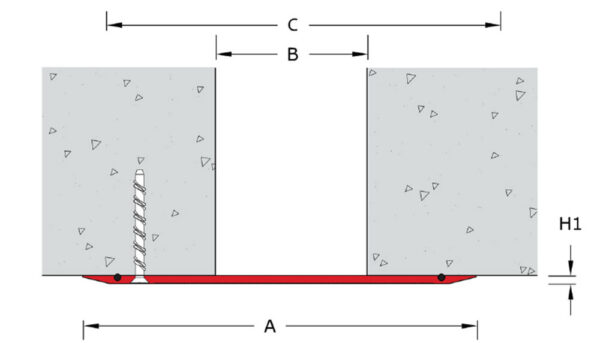

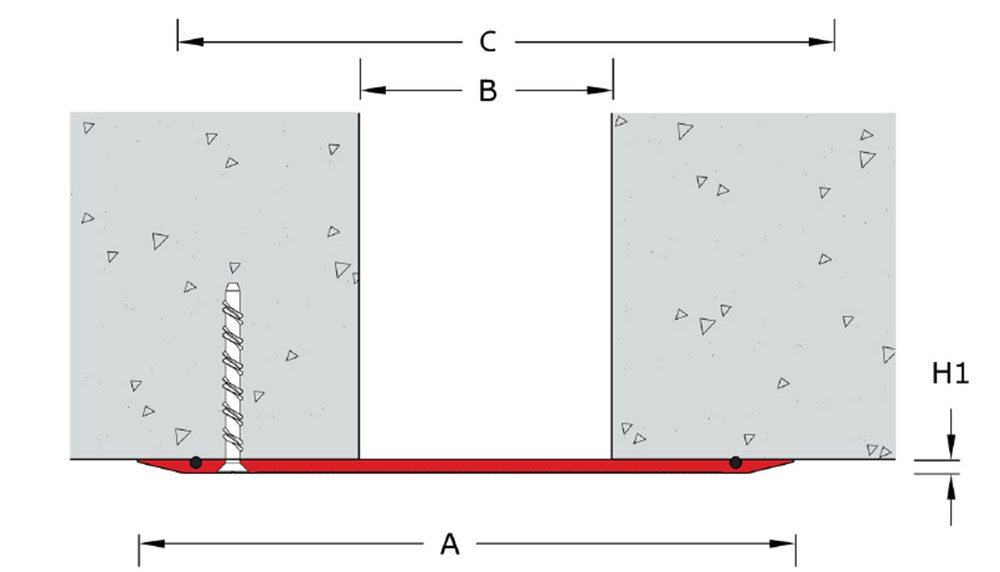

| Wall – Wall | 025 | ± 12.5 | [25] | – | – | – | – | 5 | – | 120 | 120 | 376-C07-025-005 |
| 050 | ± 25 | [50] | 185 | 185 | 376-C07-050-005 | |||||||
| 075 | ± 37 | [75] | 218 | 218 | 376-C07-075-005 | |||||||
| 100 | ± 50 | [100] | 260 | 260 | 376-C07-100-005 | |||||||
| 150 | ± 75 | [150] | 335 | 335 | 376-C07-150-005 | |||||||

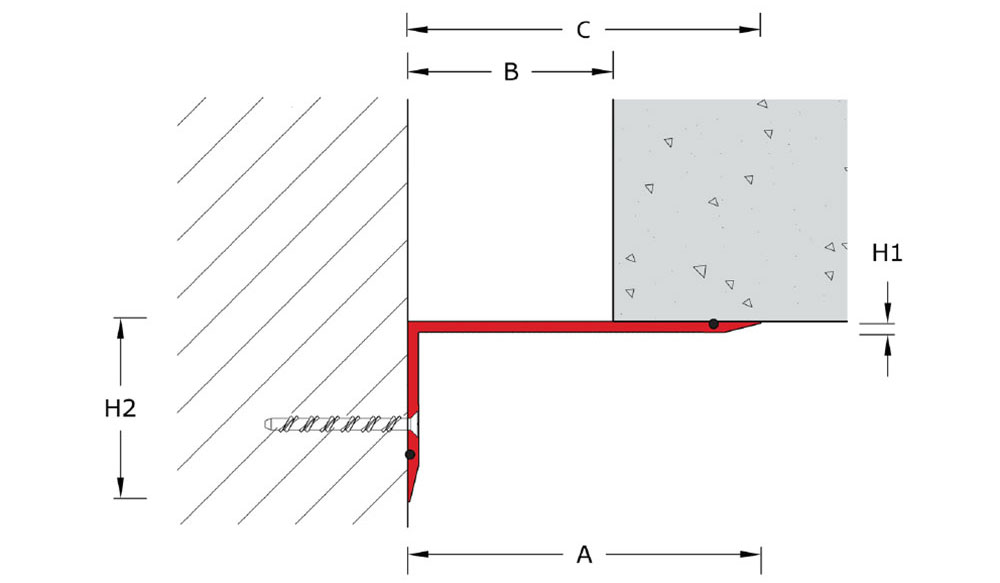

| Corner – Wall | 025 | ± 12.5 | [25] | – | – | – | – | 5 | 60 | 60 | 60 | 376-C09-025-005 |
| 050 | ± 25 | [50] | 88 | 97 | 97 | 376-C09-050-005 | ||||||
| 075 | ± 37 | [75] | 130 | 130 | 376-C09-075-005 | |||||||
| 100 | ± 50 | [100] | 172 | 172 | 376-C09-100-005 | |||||||
| 150 | ± 75 | [150] | 247 | 247 | 376-C09-150-005 | |||||||
