Description

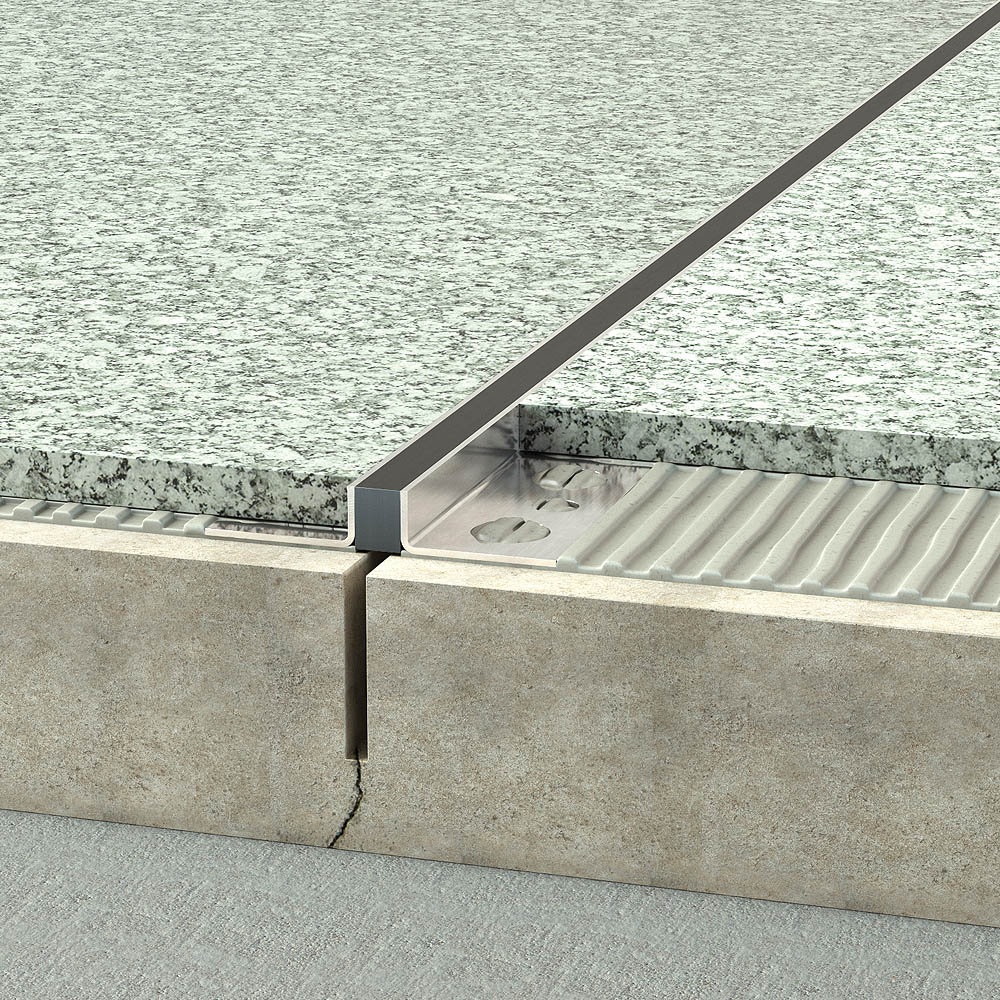

The MicrAtec joint is suitable as movement joint in tiled floors. The brass or stainless steel profile captures movement due to temperature fluctuations and high traffic loads.

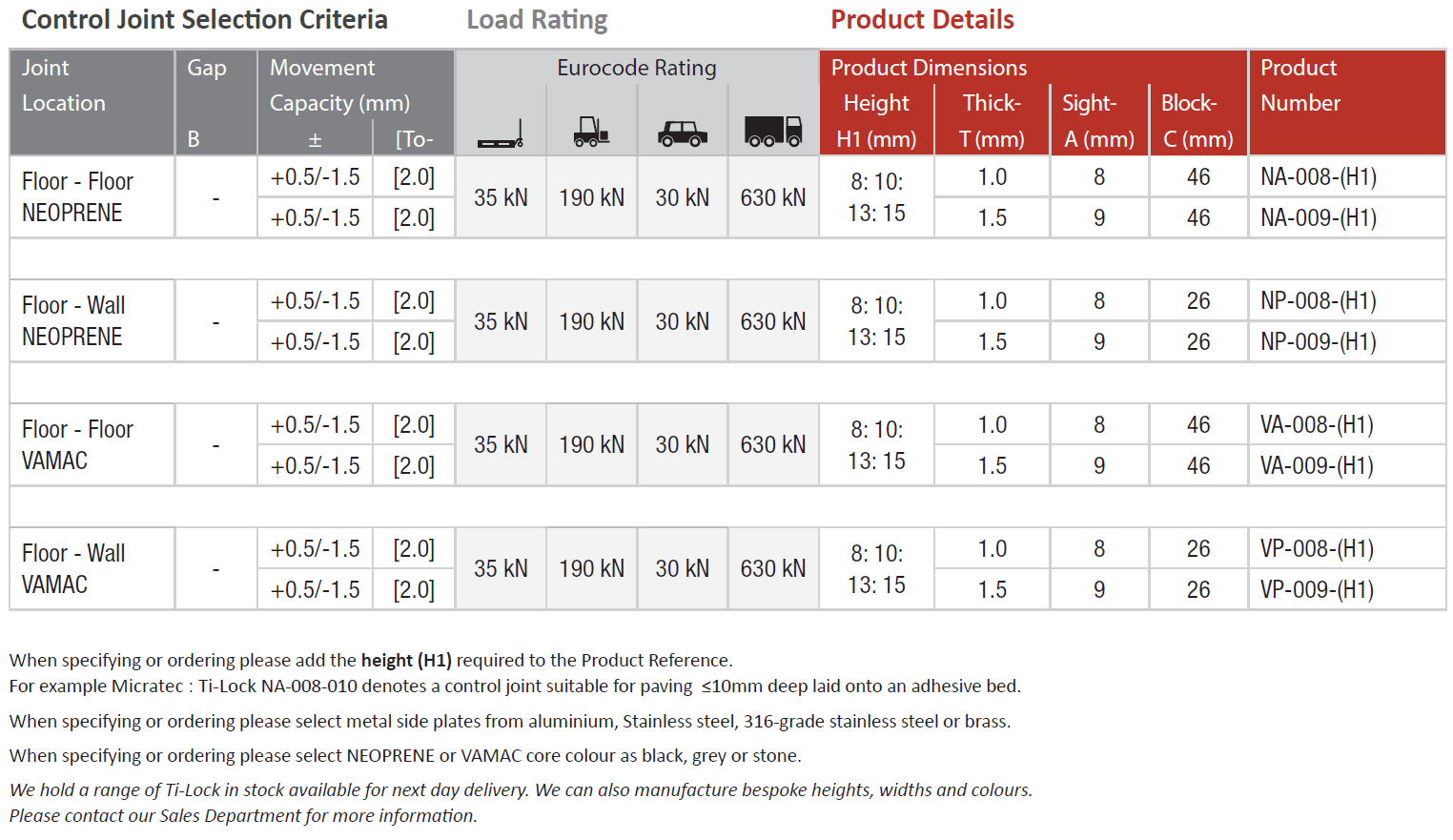

| Control Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap B (mm) |
Movement Capacity (mm) |

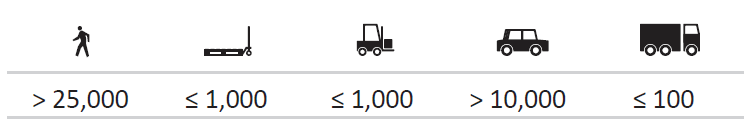

Eurocode Rating | Product Dimensions | Product Number |
|||||||
| ± | [Total] |  |
 |
 |
 |
Height H1 (mm) |
Thick- T (mm) |
Sight- A (mm) |
Block- C (mm) |
|||

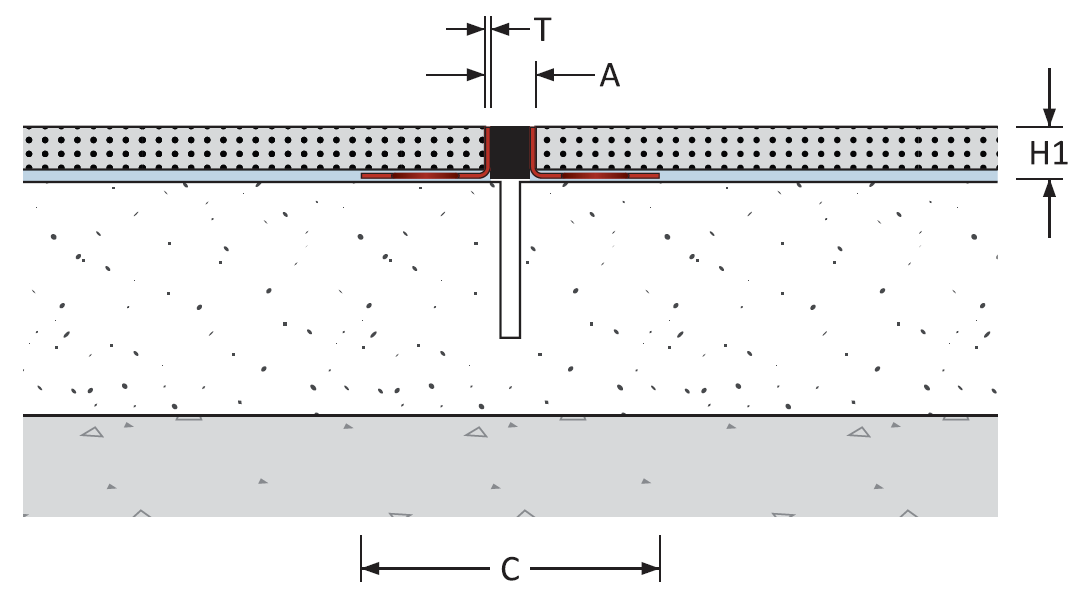

| Floor – Floor NEOPRENE |
– | +0.5/-1.5 | [2.0] | 35 kN | 190 kN | 30 kN | 630 kN | 8: 10: 13: 15 |
1.0 | 8 | 46 | NA-008-(H1) |
| +0.5/-1.5 | [2.0] | 1.5 | 9 | NA-009-(H1) | ||||||||

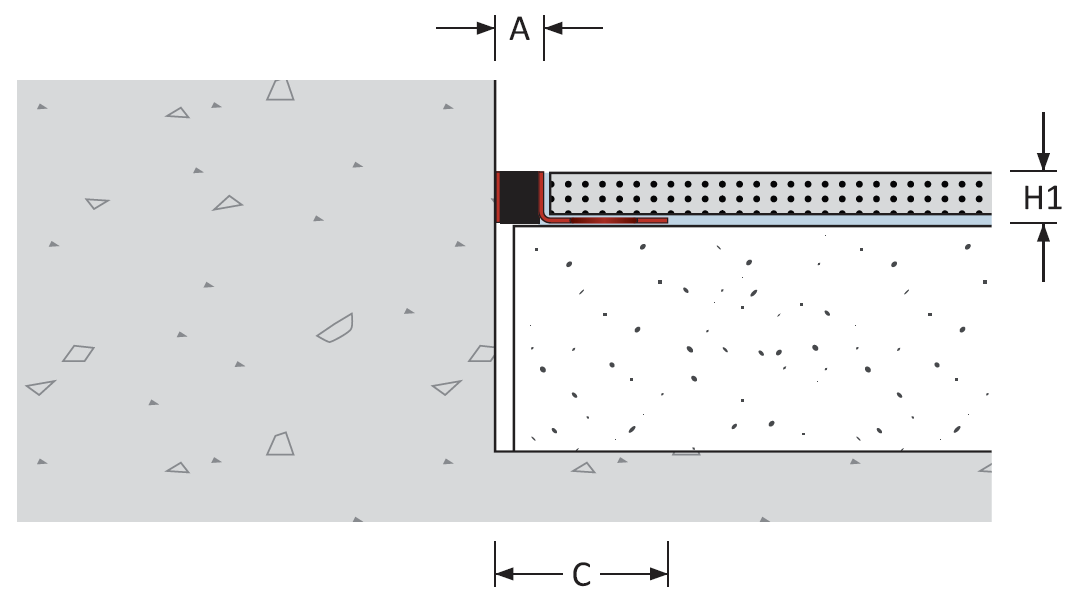

| Floor – Wall NEOPRENE |
– | +0.5/-1.5 | [2.0] | 35 kN | 190 kN | 30 kN | 630 kN | 8: 10: 13: 15 |
1.0 | 8 | 26 | NP-008-(H1) |
| +0.5/-1.5 | [2.0] | 1.5 | 9 | NP-009-(H1) | ||||||||
| Floor – Floor VAMAC |
– | +0.5/-1.5 | [2.0] | 35 kN | 190 kN | 30 kN | 630 kN | 8: 10: 13: 15 |
1.0 | 8 | 46 | VA-008-(H1) |
| +0.5/-1.5 | [2.0] | 1.5 | 9 | VA-009-(H1) | ||||||||
| Floor – Wall VAMAC |
– | +0.5/-1.5 | [2.0] | 35 kN | 190 kN | 30 kN | 630 kN | 8: 10: 13: 15 |
1.0 | 8 | 26 | VP-008-(H1) |
| +0.5/-1.5 | [2.0] | 1.5 | 9 | VP-009-(H1) | ||||||||
When specifying or ordering please add the height (H1) required to the Product Reference.
For example Micratec : Ti-Lock NA-008-010 denotes a control joint suitable for paving ≤10mm deep laid onto an adhesive bed.
When specifying or ordering please select metal side plates from aluminium, Stainless steel, 316-grade stainless steel or brass.
When specifying or ordering please select NEOPRENE or VAMAC core colour as black, grey or stone.
We hold a range of Ti-Lock in stock available for next day delivery. We can also manufacture bespoke heights, widths and colours.
Please contact our Sales Department for more information.
