Description

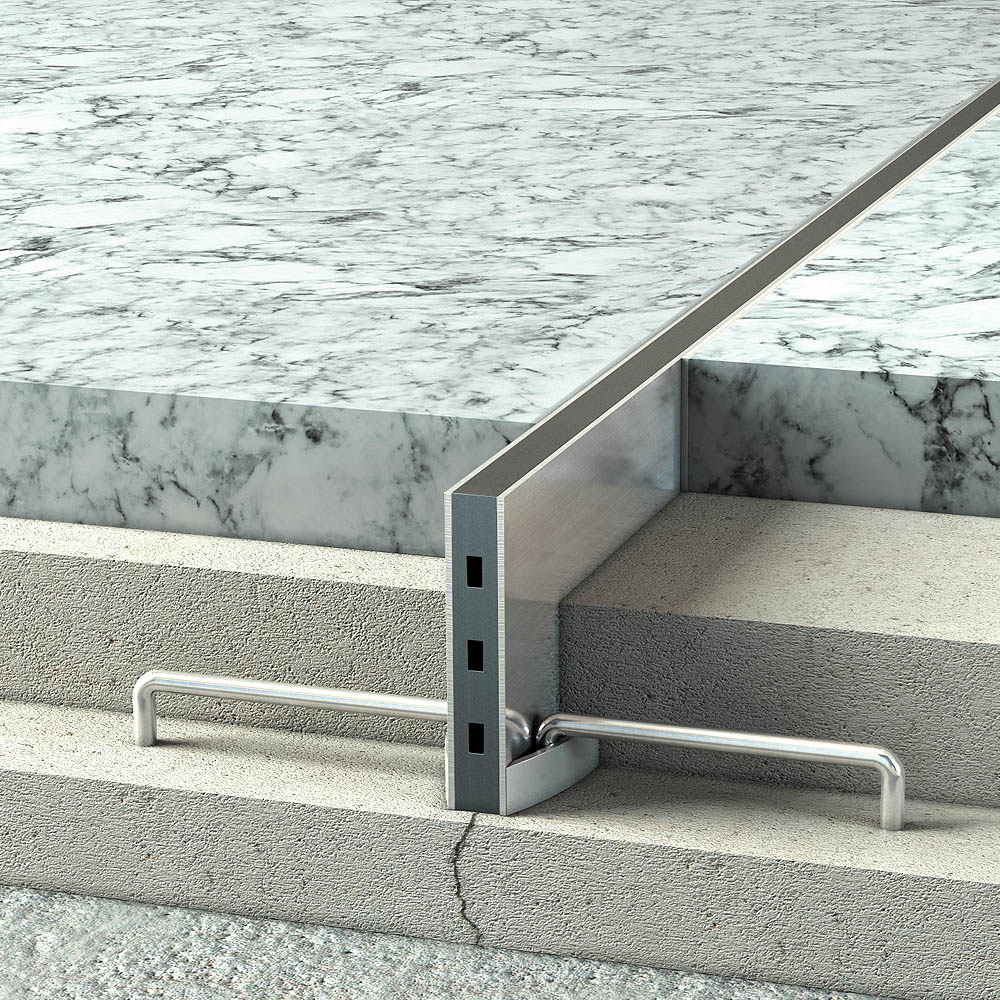

The MicrAtec NS joint is suitable as field dilation in floors with hard finishes. The brass or stainless steel profile absorbs forces caused by shrinkage, expansion due to temperature fluctuations and high traffic loads.

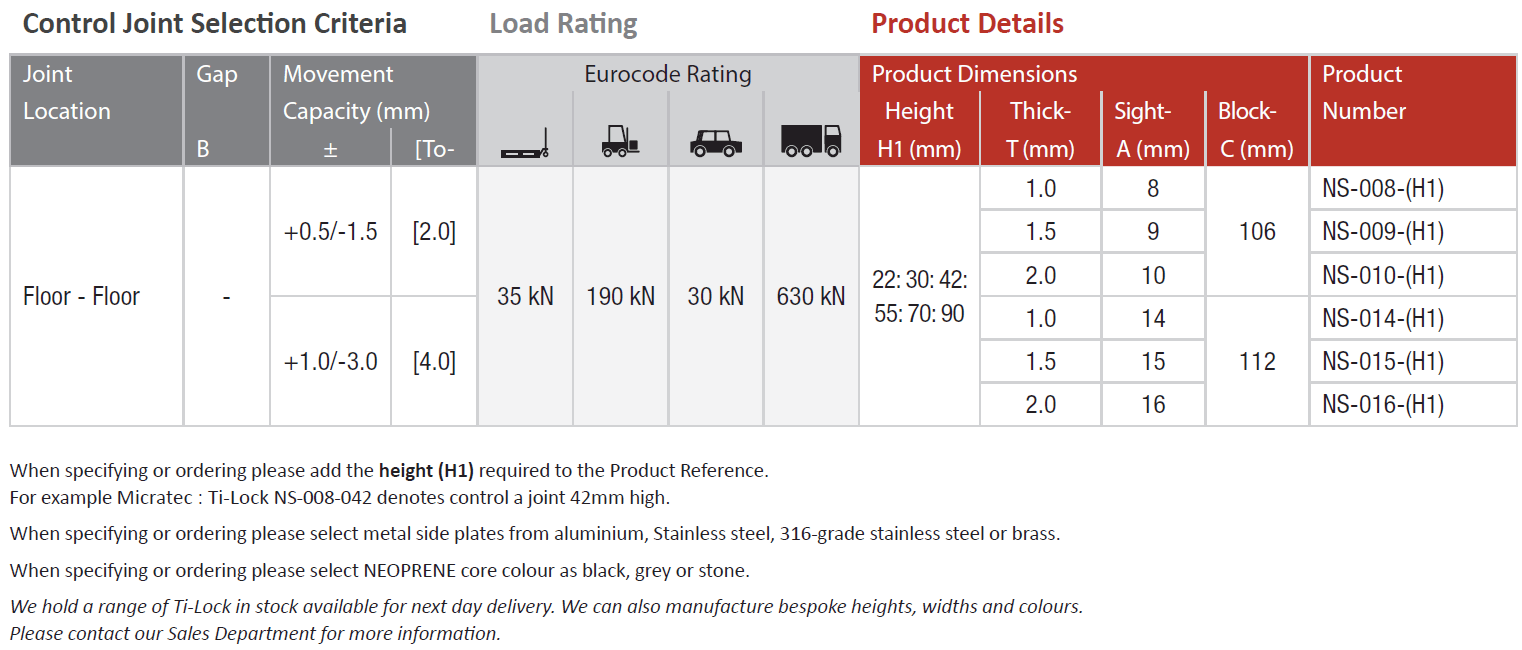

| Control Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions | Product Number |
|||||||
| ± | [Total] |  |
 |
 |
 |

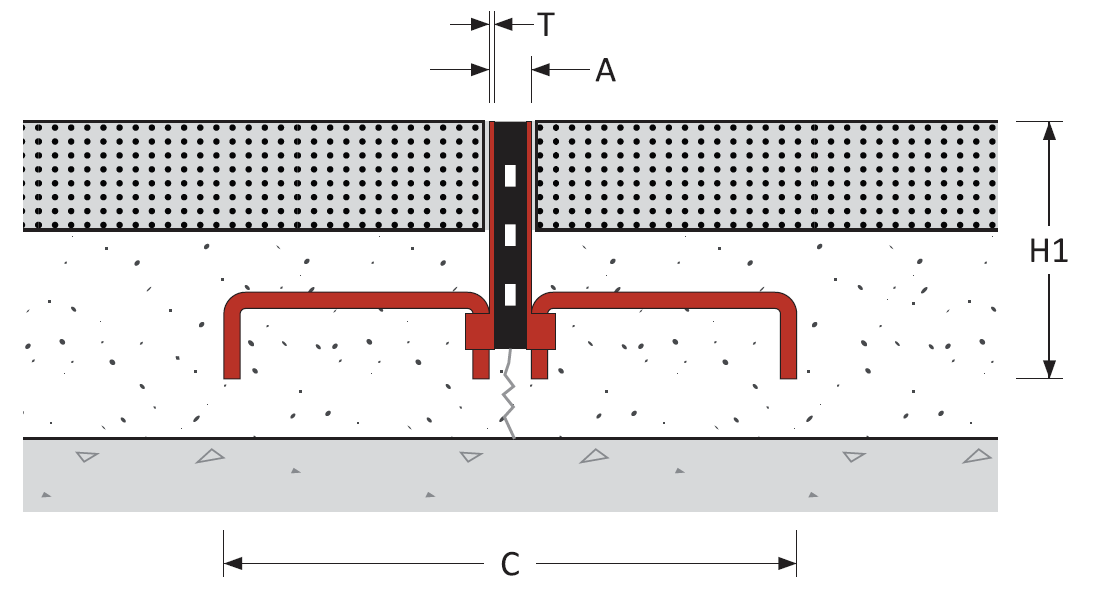

Height H1 (mm) |
Thick- T (mm) |
Sight- A (mm) |
Block- C (mm) |
|||
| Floor – Floor | – | +0.5/-1.5 | [2.0] | 35 kN | 190 kN | 30 kN | 630 kN | 22: 30: 42: 55: 70: 90 |
1.0 | 8 | 106 | NS-008-(H1) |
| 1.5 | 9 | NS-009-(H1) | ||||||||||
| 2.0 | 10 | NS-010-(H1) | ||||||||||
| +1.0/-3.0 | [4.0] | 1.0 | 14 | 112 | NS-014-(H1) | |||||||
| 1.5 | 15 | NS-015-(H1) | ||||||||||
| 2.0 | 16 | NS-016-(H1) | ||||||||||
When specifying or ordering please add the height (H1) required to the Product Reference.
For example Micratec : Ti-Lock NS-008-042 denotes control a joint 42mm high.
When specifying or ordering please select metal side plates from aluminium, Stainless steel, 316-grade stainless steel or brass.
When specifying or ordering please select NEOPRENE core colour as black, grey or stone.
We hold a range of Ti-Lock in stock available for next day delivery. We can also manufacture bespoke heights, widths and colours.
Please contact our Sales Department for more information.
