Description

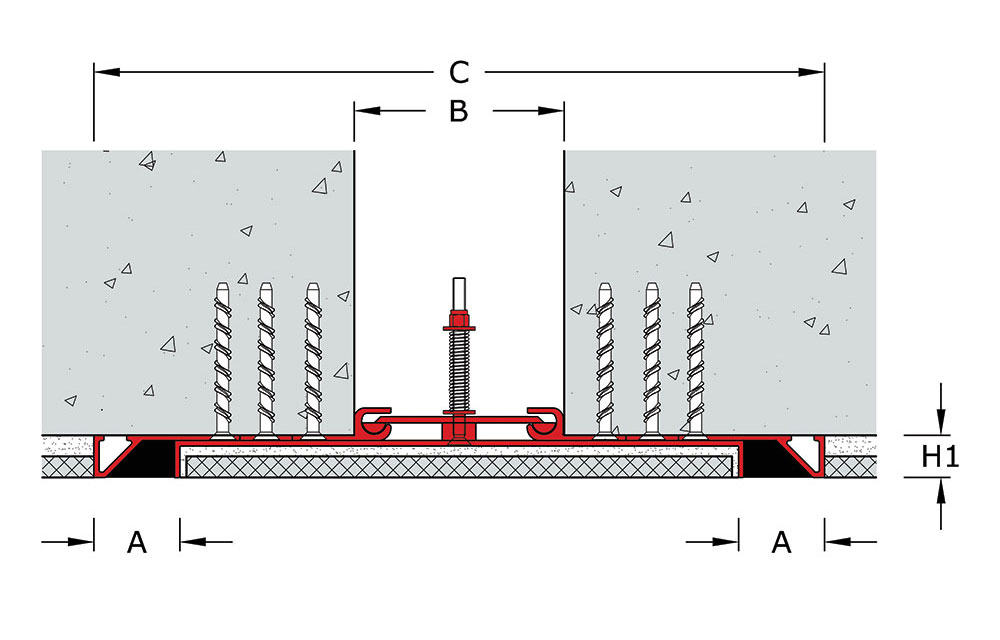

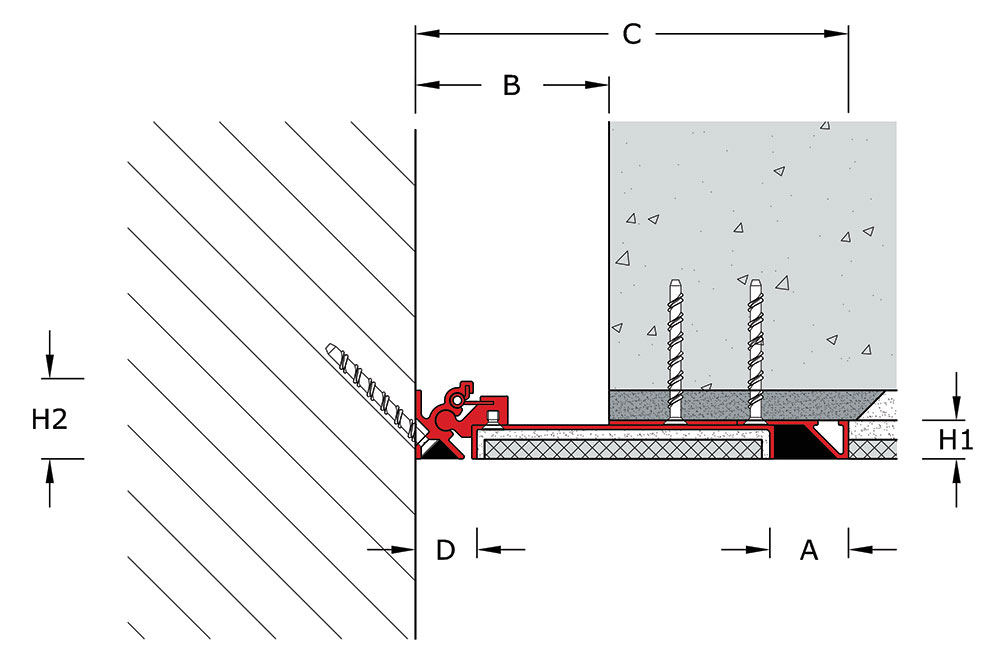

The SeismAtec 427-A07-A09 is a recessed seismic wall expansion joint with smooth surface, ASTM E-1399 Class III rating, 120-minute with a fire barrier.

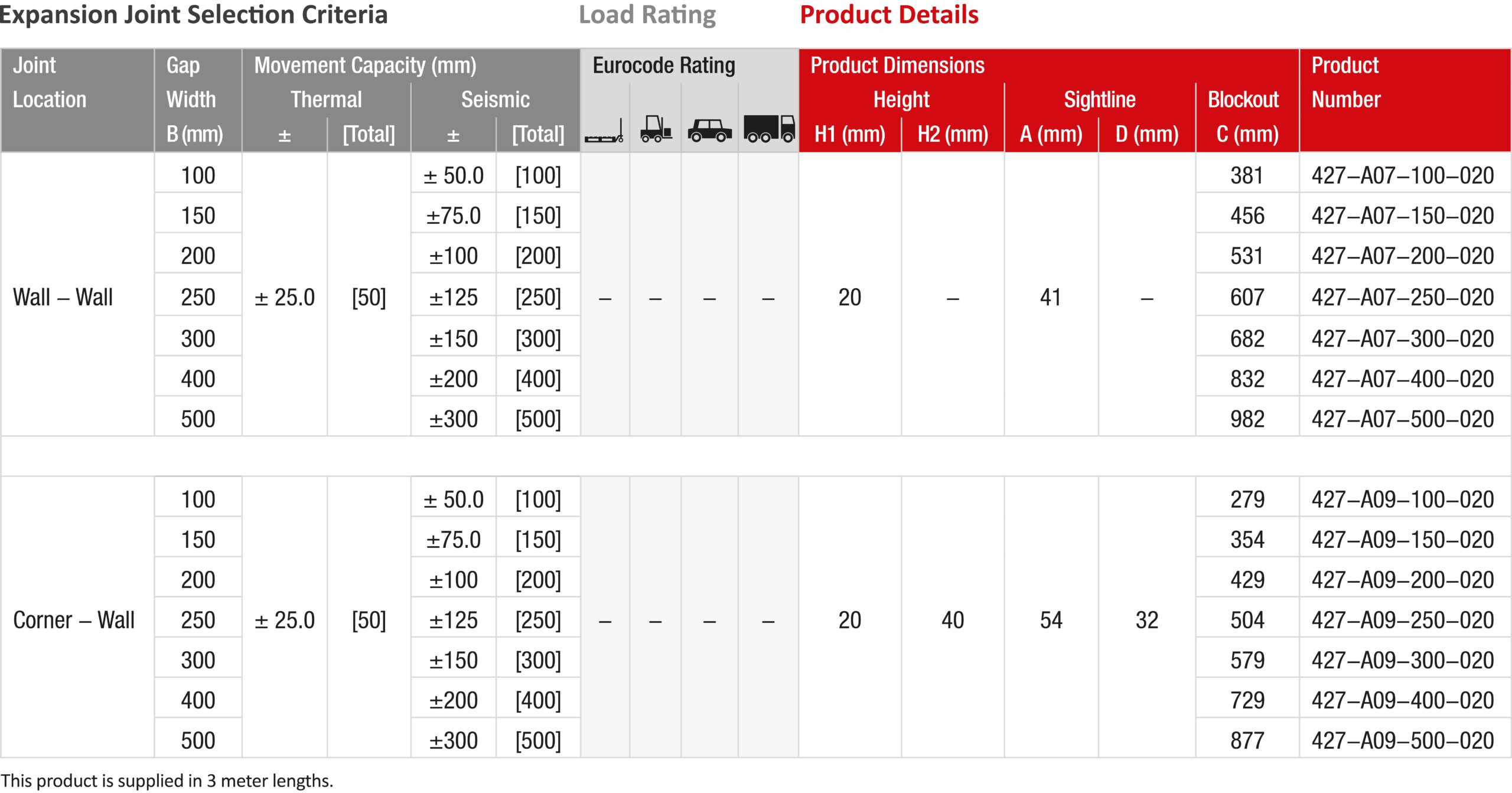

| Expansion Joint Selection Criteria | Load Rating | Product Details | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Thermal | Seismic |  |
 |
 |
 |
H1 (mm) | H2 (mm) | Sightline | Blockout C (mm) |
Product Number |
|||
| ± | [Total] | ± | [Total] | A (mm) | D (mm) | ||||||||||
| Wall – Wall | 100 | ±25.0 | [50] | ±50.0 | [100] | – | – | – | – | 20 | – | 41 | – | 381 | 427-A07-100-020 |
| 150 | ±75.0 | [150] | 456 | 427-A07-150-020 | |||||||||||
| 200 | ±100 | [200] | 531 | 427-A07-200-020 | |||||||||||
| 250 | ±125 | [250] | 607 | 427-A07-250-020 | |||||||||||
| 300 | ±150 | [300] | 682 | 427-A07-300-020 | |||||||||||
| 400 | ±200 | [400] | 832 | 427-A07-400-020 | |||||||||||
| 500 | ±300 | [500] | 982 | 427-A07-500-020 | |||||||||||
| Corner – Wall | 100 | ±25.0 | [50] | ±50.0 | [100] | – | – | – | – | 20 | 40 | 54 | 32 | 279 | 427-A09-100-020 |
| 150 | ±75.0 | [150] | 354 | 427-A09-150-020 | |||||||||||
| 200 | ±100 | [200] | 429 | 427-A09-200-020 | |||||||||||
| 250 | ±125 | [250] | 504 | 427-A09-250-020 | |||||||||||
| 300 | ±150 | [300] | 579 | 427-A09-300-020 | |||||||||||
| 400 | ±200 | [400] | 729 | 427-A09-400-020 | |||||||||||
| 500 | ±300 | [500] | 877 | 427-A09-500-020 | |||||||||||
This product is supplied in 3 meter lengths.
