Description

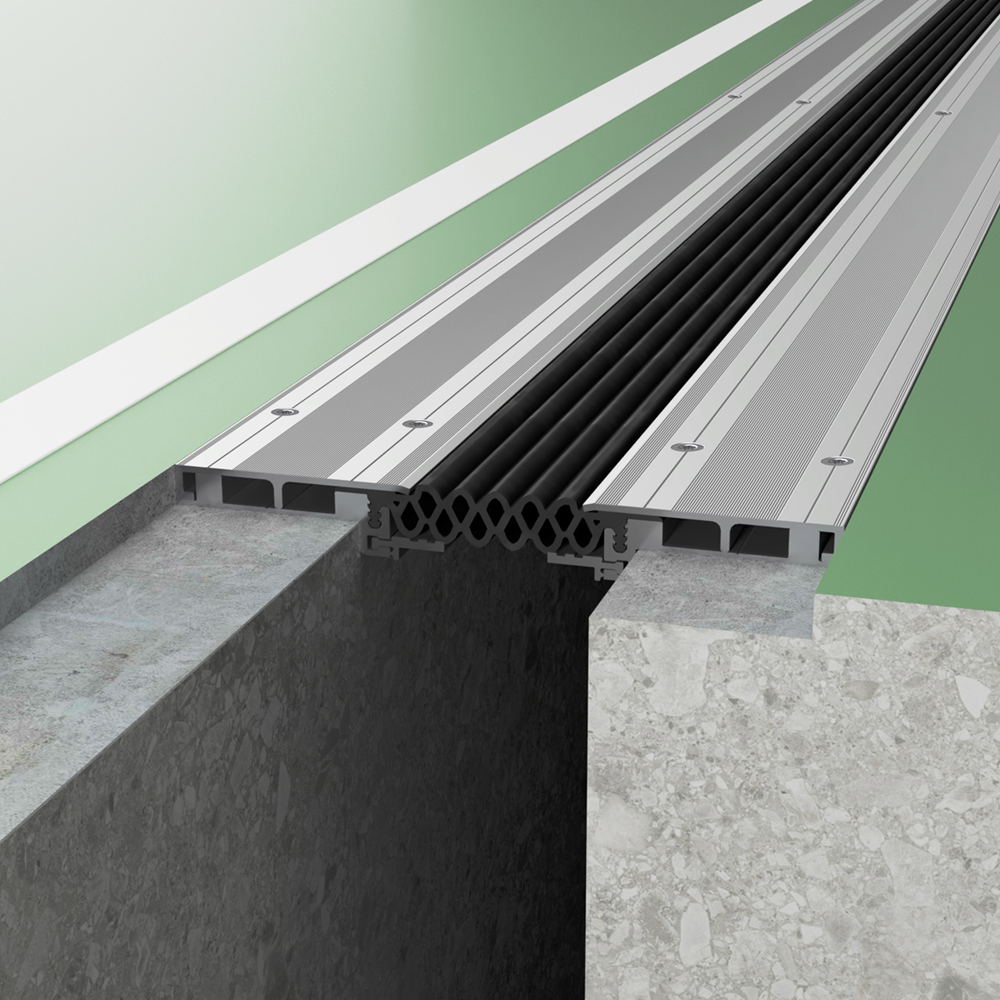

TransAtec 1115-A01 produced by Vexcolt LTD is an expansion joint series for floors with a central seal and ‘no-bump’ surface for car parks.

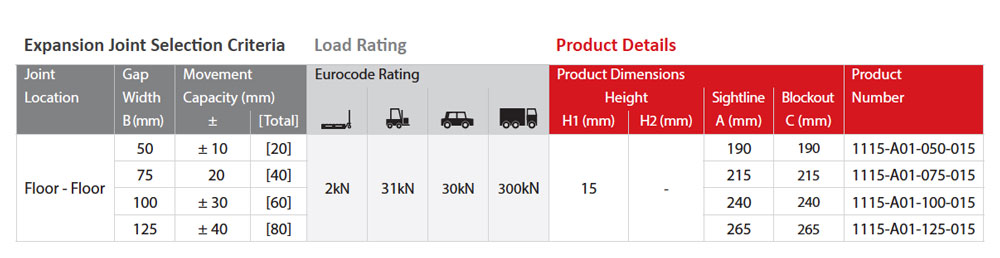

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |

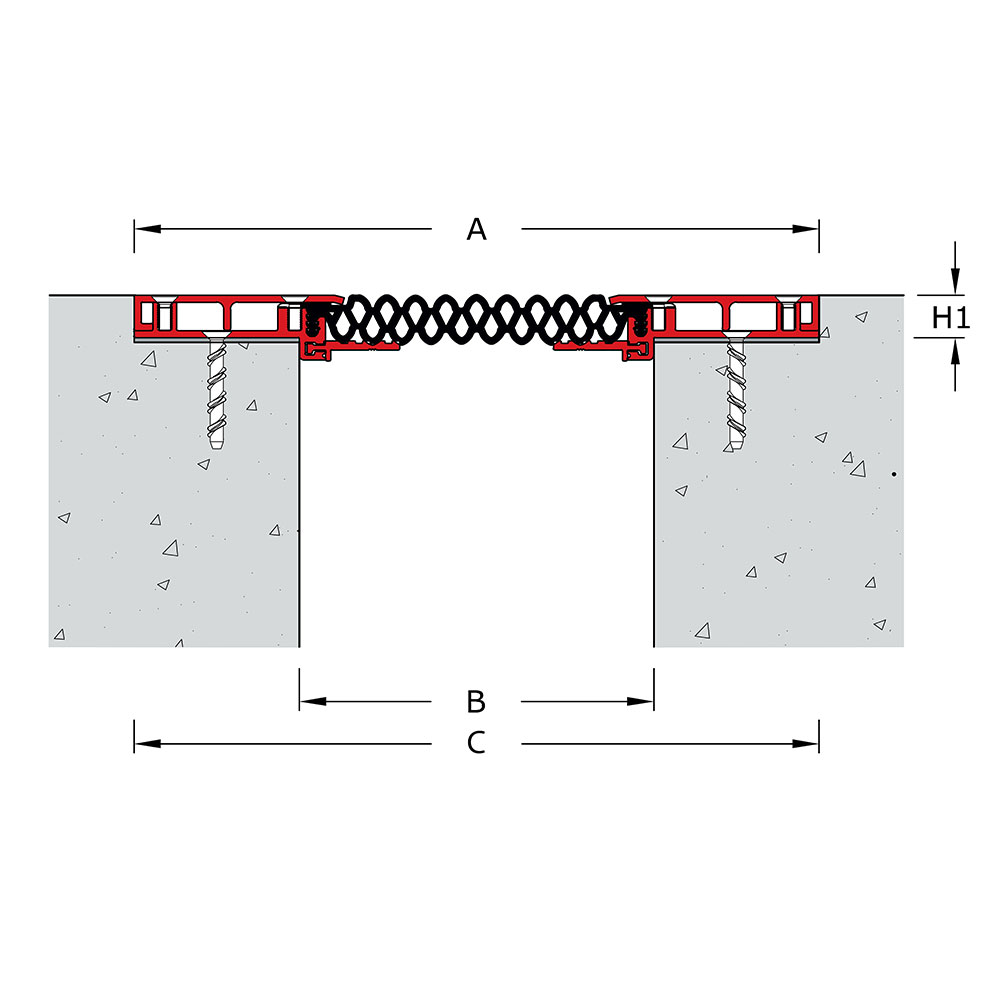

Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||
| Floor – Floor | 050 | ± 10 | [20] | 2kN | 31kN | 30kN | 300kN | 15 | – | 190 | 190 | 1115-A01-050-015 |
| 075 | 20 | [40] | 215 | 215 | 1115-A01-075-015 | |||||||
| 100 | ± 30 | [60] | 240 | 240 | 1115-A01-100-015 | |||||||
| 125 | ± 40 | [80] | 265 | 265 | 1115-A01-125-015 | |||||||
