Description

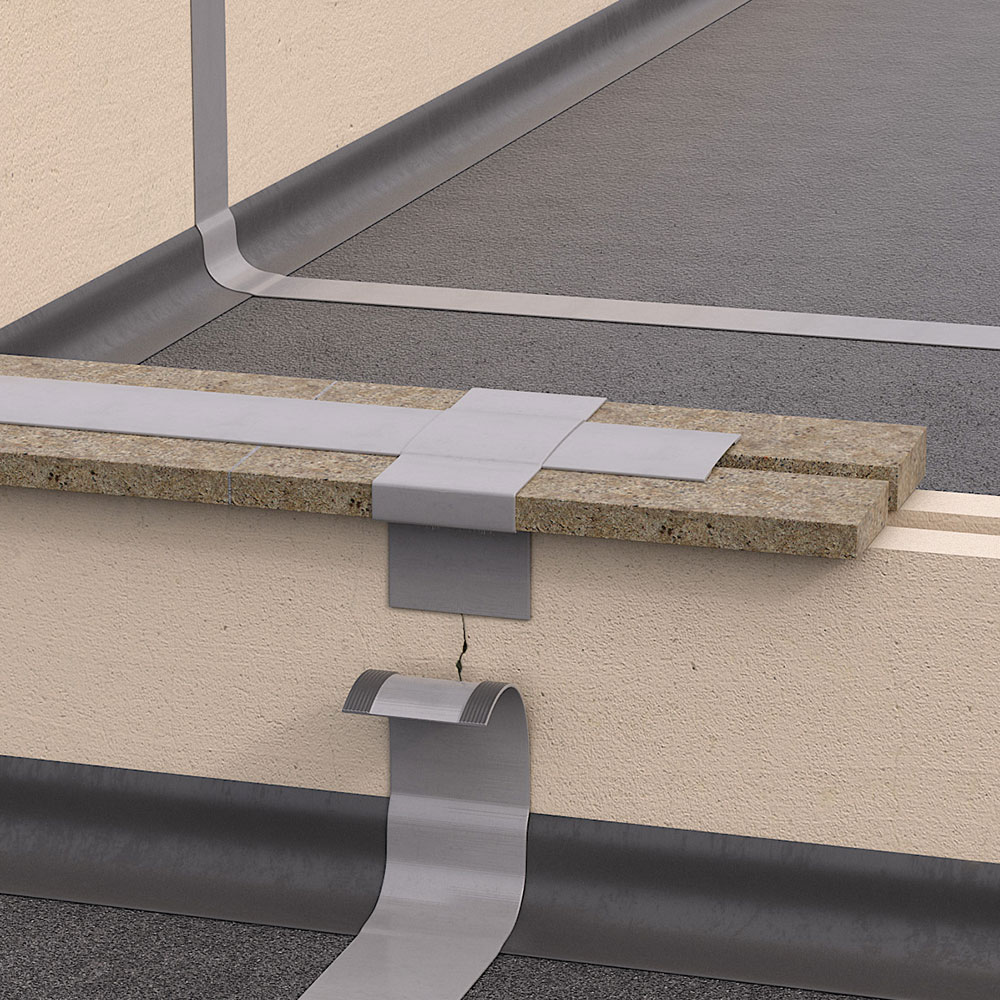

The ElastAtec series is a multi-purpose UV-resistant HQSU bandage for internal and external walls and roofs. Suitable for crack repair.

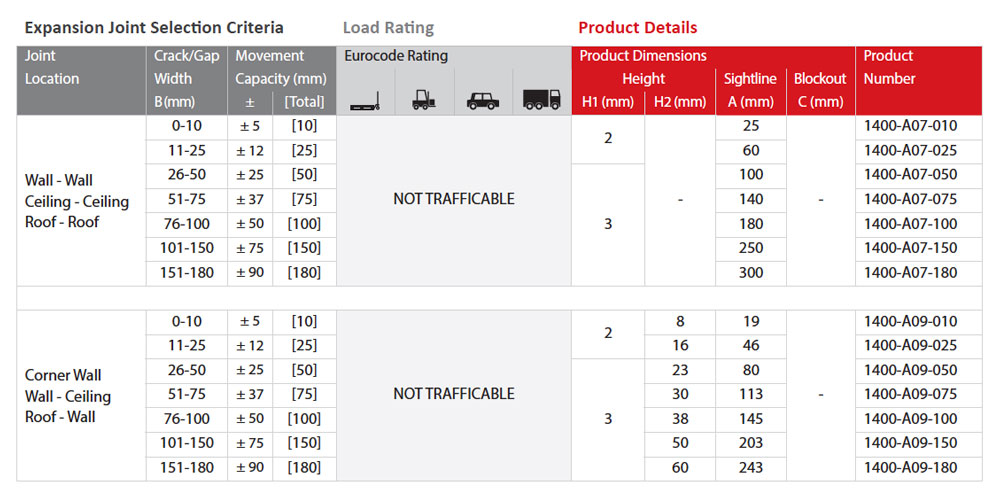

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |

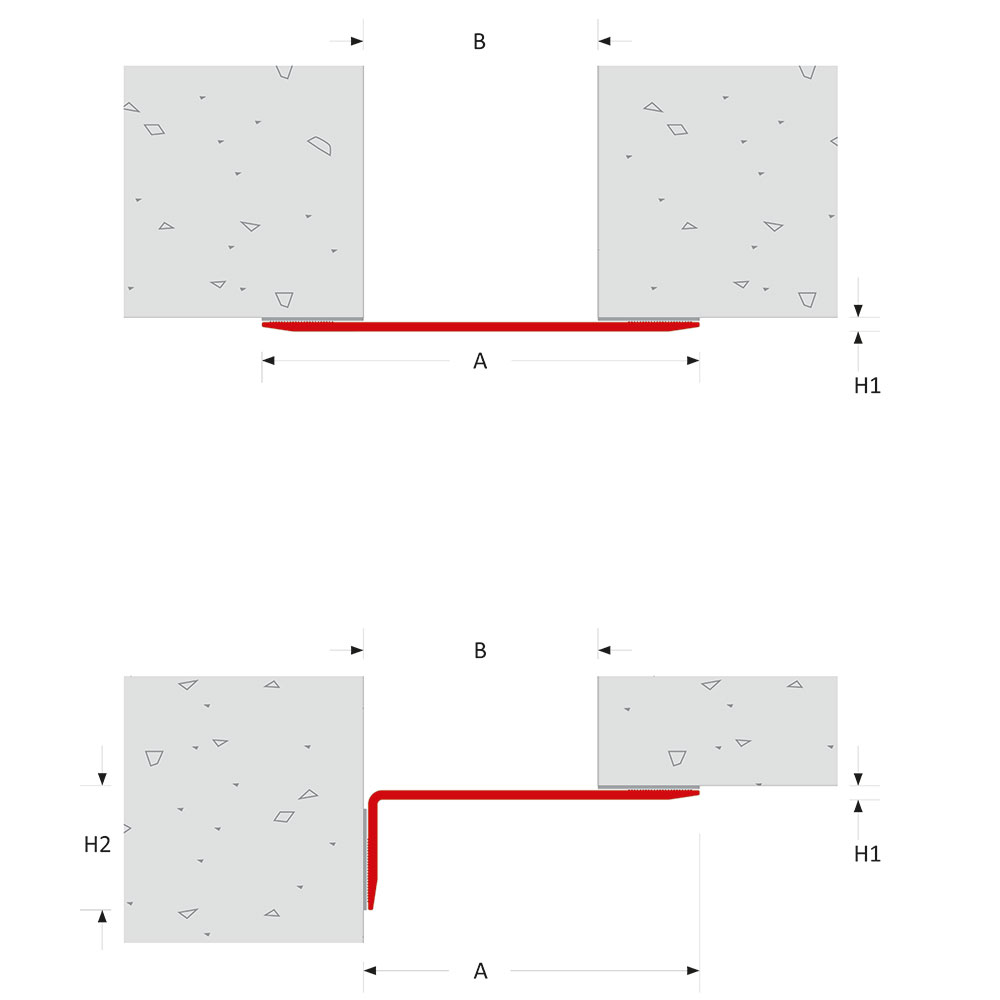

Crack/Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Height | Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||
| Wall – Wall Ceiling – Ceiling Roof – Roof |
0–10 | ± 5 | [10] | NOT TRAFFICABLE | 3 | – | 25 | – | 1400–A07–010 | |||
| 11–25 | ± 12 | [25] | 50 | 1400–A07–025 | ||||||||
| 26–50 | ± 25 | [50] | 80 | 1400–A07–050 | ||||||||
| 51–75 | ± 37 | [75] | 120 | 1400–A07–075 | ||||||||
| 76–100 | ± 50 | [100] | 160 | 1400–A07–100 | ||||||||
| 101–125 | ± 63 | [125] | 200 | 1400–A07–125 | ||||||||
| 126–150 | ± 75 | [150] | 250 | 1400–A07–150 | ||||||||
| Corner Wall Wall – Ceiling Roof – Wall |
0–10 | ± 5 | [10] | NOT TRAFFICABLE | 3 | 8 | 17 | – | 1400–A09–010 | |||
| 11–25 | ± 12 | [25] | 12 | 38 | 1400–A09–025 | |||||||
| 26–50 | ± 25 | [50] | 15 | 65 | 1400–A09–050 | |||||||
| 51–75 | ± 37 | [75] | 25 | 95 | 1400–A09–075 | |||||||
| 76–100 | ± 50 | [100] | 33 | 127 | 1400–A09–100 | |||||||
| 101–125 | ± 63 | [125] | 40 | 160 | 1400–A09–125 | |||||||
| 126–150 | ± 75 | [150] | 50 | 200 | 1400–A09–150 | |||||||
