Description

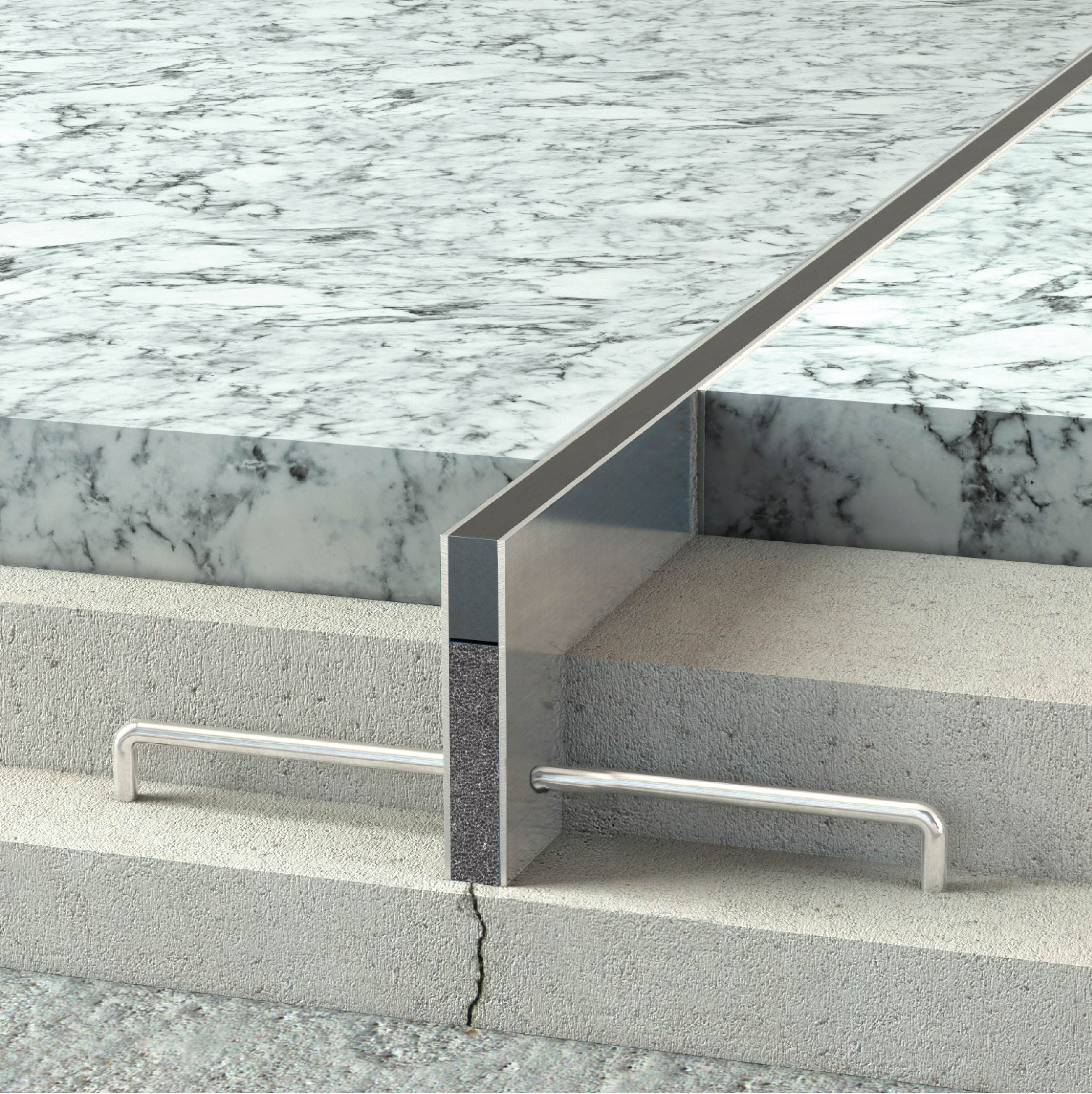

The MicrAtec ES-EC joint is suitable as field dilation in floors with hard finishes. The brass or stainless steel profile absorbs forces caused by shrinkage, expansion due to temperature fluctuations and high traffic loads.

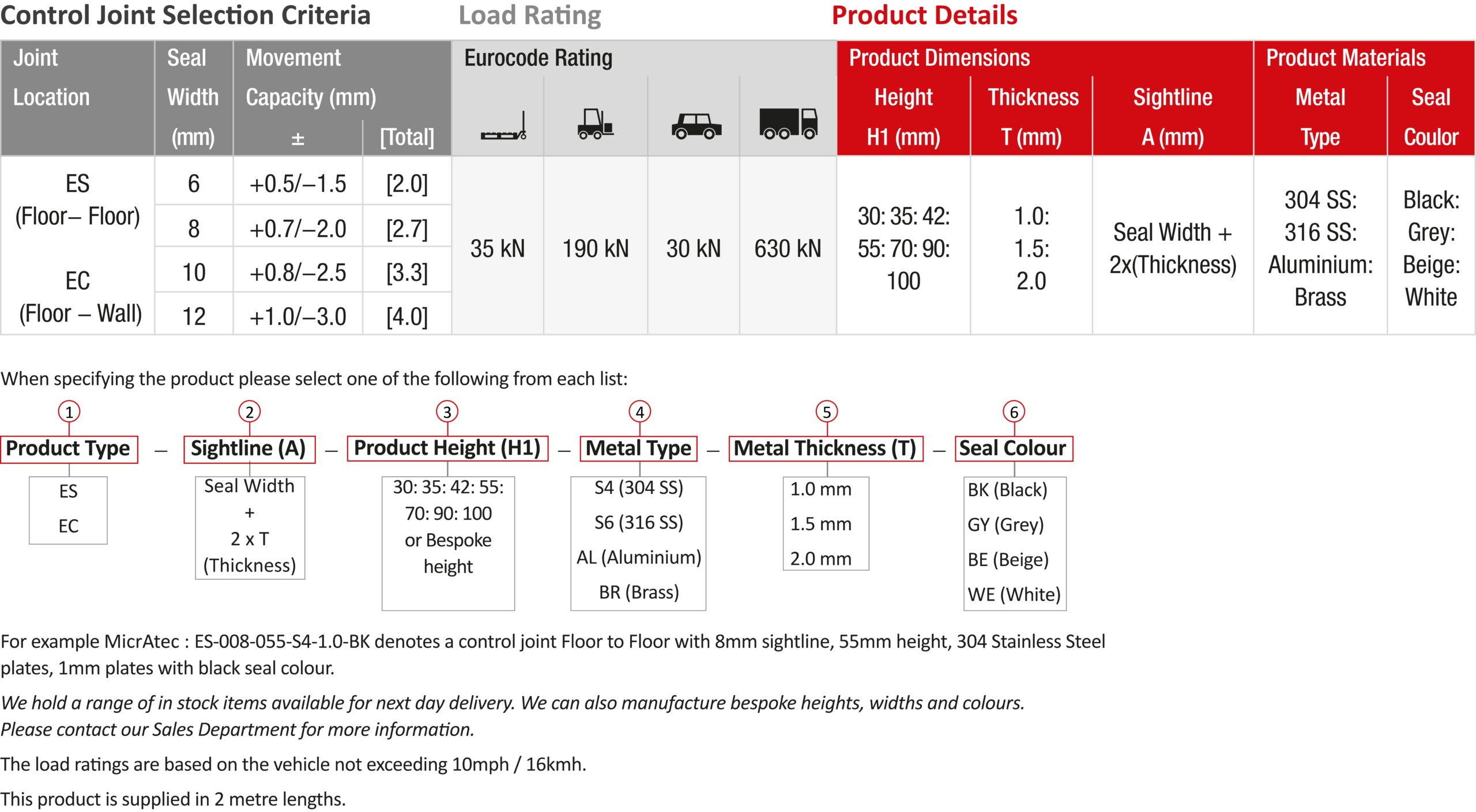

| Control Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Seal Width (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions | Product Materials | |||||||
| ± | [Total] |  |
 |
 |
 |
Height H1 (mm) |
Thickness T (mm) |
Sightline A (mm) |
Metal Type |
Seal Coulor |
||

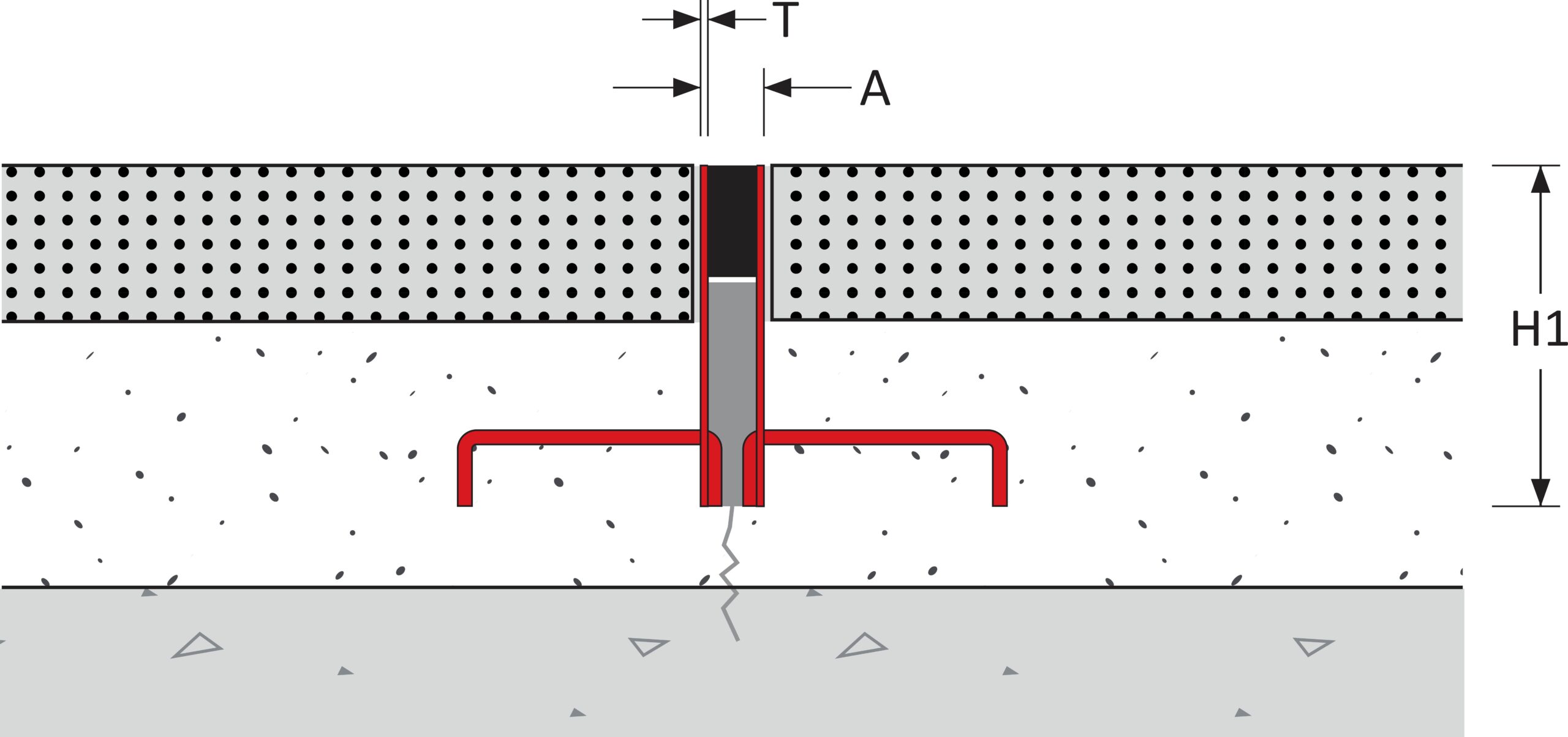

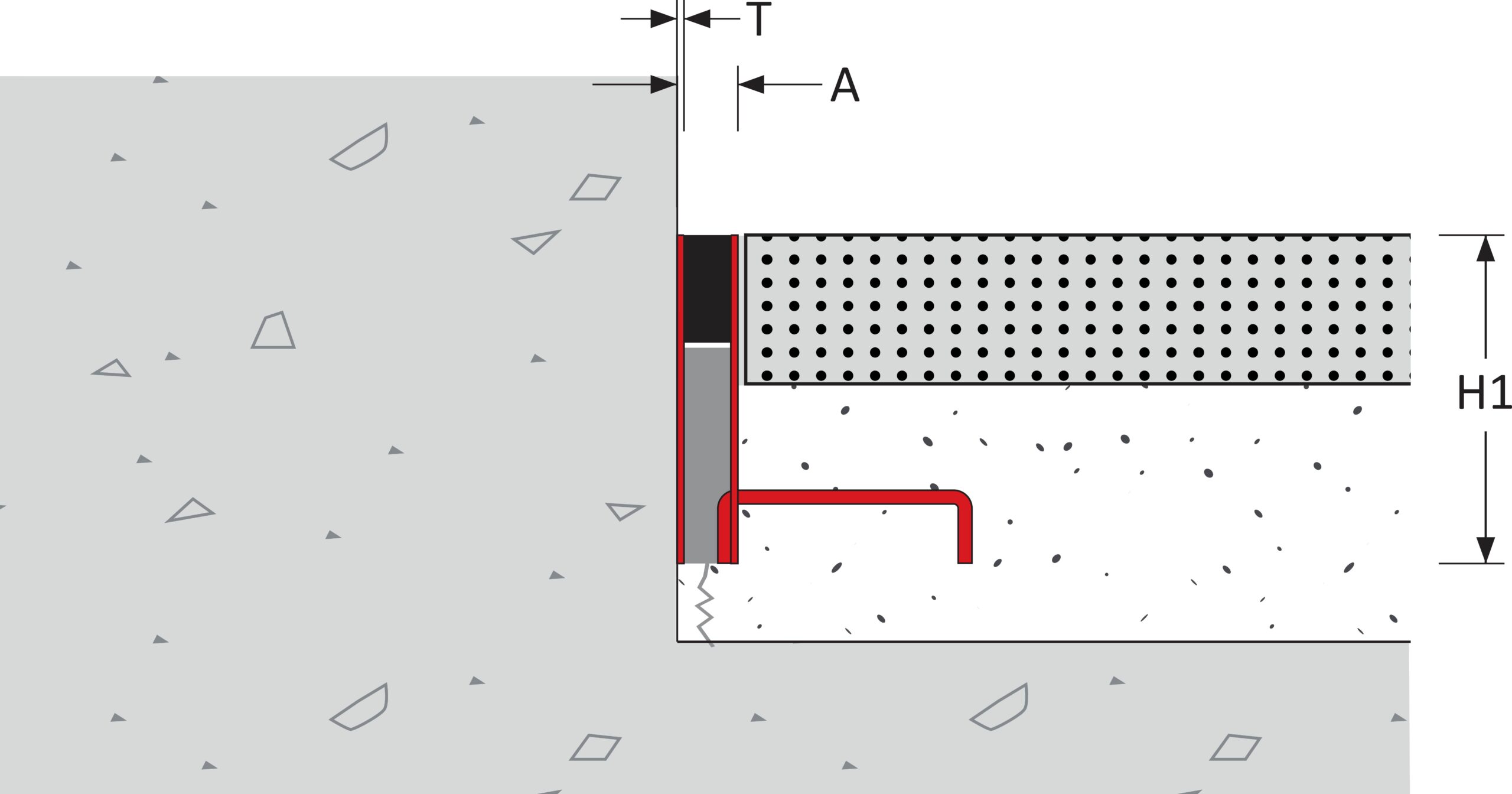

| ES (Floor– Floor) EC |
6 | +0.5/–1.5 | [2.0] | 35 kN | 190 kN | 30 kN | 630 kN | 30: 35: 42: 55: 70: 90: 100 |
1.0: 1.5: 2.0 |
Seal Width + 2x(Thickness) |
304 SS: 316 SS: Aluminium: Brass |
Black: Grey: Beige: White |
| 8 | +0.7/–2.0 | [2.7] | ||||||||||
| 10 | +0.8/–2.5 | [3.3] | ||||||||||
| 12 | +1.0/–3.0 | [4.0] | ||||||||||
When specifying the product please select one of the following from each list:
| # | Field | Options |
|---|---|---|
| 1 | Product Type | ES / EC |
| 2 | Sightline (A) | Seal Width + 2 × T (Thickness) |
| 3 | Product Height (H1) | 30: 35: 42: 55: 70: 90: 100 or Bespoke height |
| 4 | Metal Type | S4 (304 SS) / S6 (316 SS) / AL (Aluminium) / BR (Brass) |
| 5 | Metal Thickness (T) | 1.0 mm / 1.5 mm / 2.0 mm |
| 6 | Seal Colour | BK (Black) / GY (Grey) / BE (Beige) / WE (White) |
For example MicrAtec : ES-008-055-S4-1.0-BK denotes a control joint Floor to Floor with 8mm sightline, 55mm height, 304 Stainless Steel plates, 1mm plates with black seal colour.
We hold a range of in stock items available for next day delivery. We can also manufacture bespoke heights, widths and colours.
Please contact our Sales Department for more information.

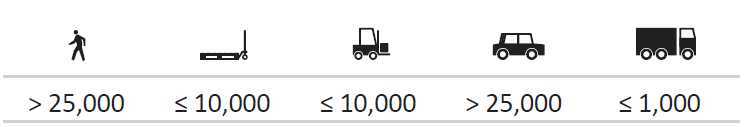

The load ratings are based on the vehicle not exceeding 10mph / 16kmh.
This product is supplied in 2 metre lengths.
