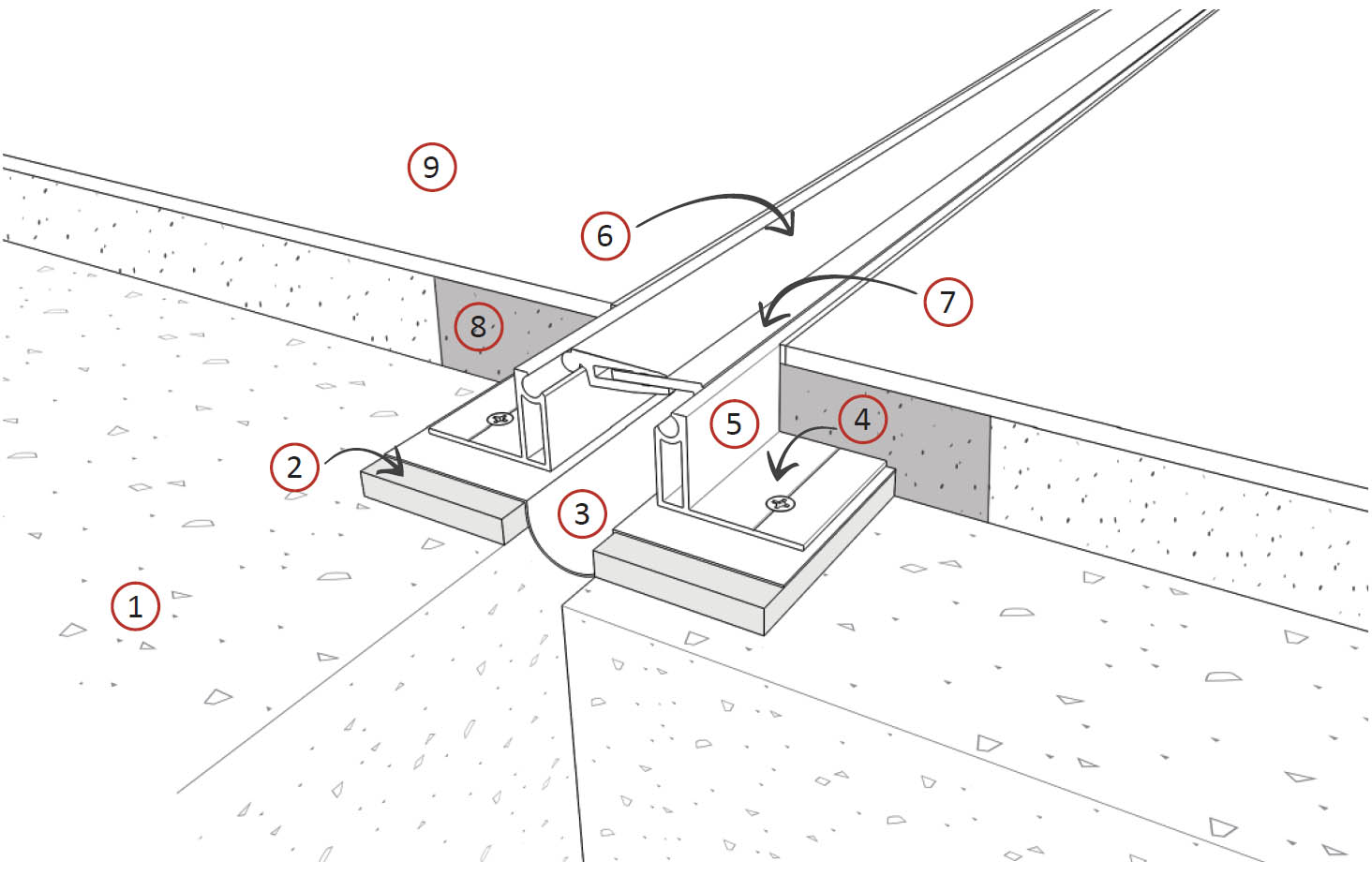

(1) Concrete slab
(2) High strength (>40N/mm2) levelling bed (by others)
(3) Optional 1.14mm thick EPDM membrane or torch applied waterproofing membrane (by others)
(4) M6 x 75mm galvanised dipped, carbon steel, self-tapping concrete screws
(5) Continuous aluminium floor frame
(6) Continuous aluminium female central load plate
(7) Continuous aluminium male central load plate
(8) Finishes/wearing surfaces

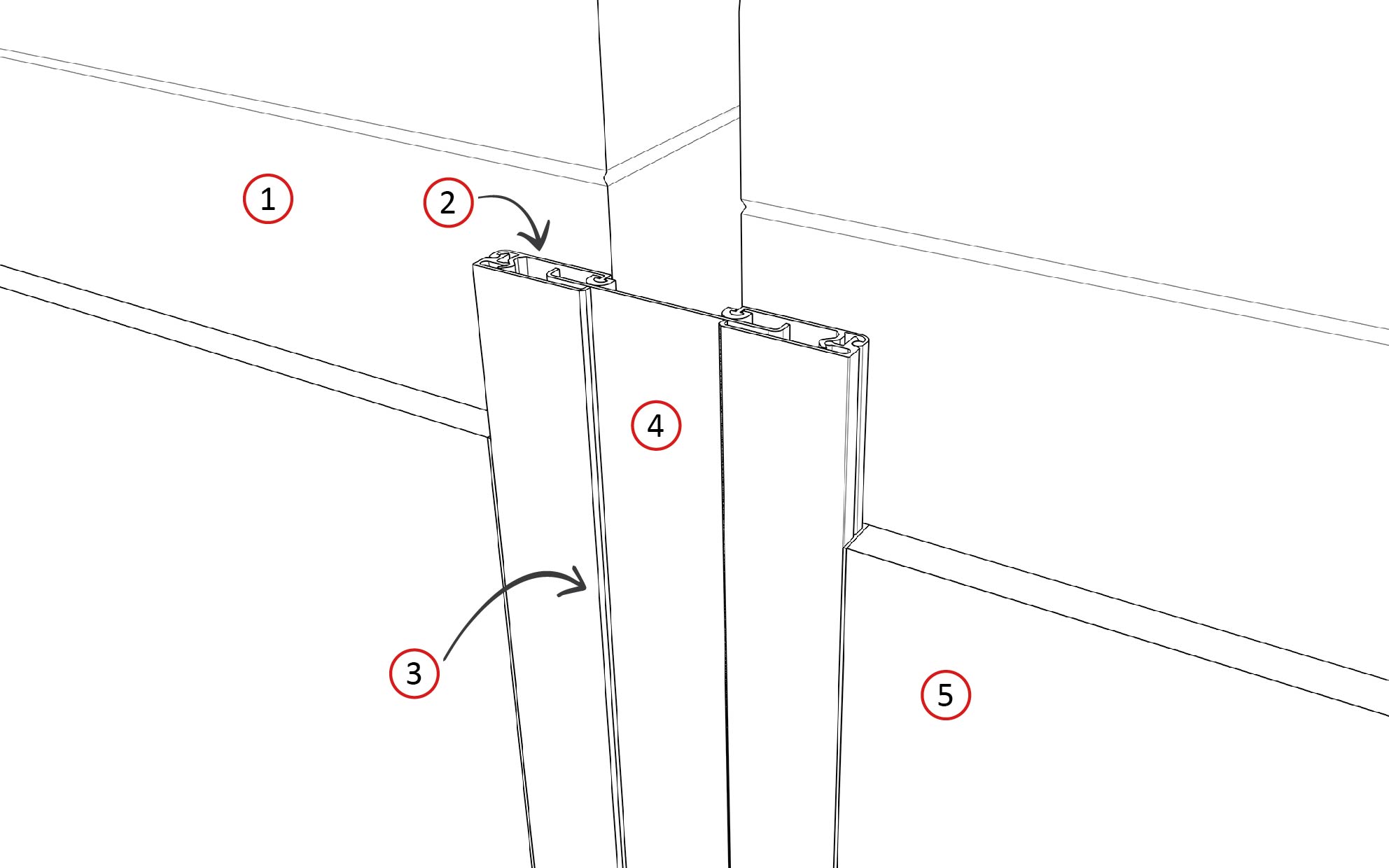

(1) Wall
(2) Continuous aluminium base frame
(3) Continuous 20 micron clear satin andised aluminium top frame
(4) Continuous 20 micron clear satin andised aluminium centre plate
(5) Finishes
MaxAtec frame and seal expansion joints are Vexcolt’s aluminium range for floors, walls, and ceilings. Unlike a metal plate system, this range uses a frame and seal design instead. As a result, it’s a strong option for areas that also need some flexibility. The range comes in two configurations. For floors, a continuous aluminium frame combines with a central support plate and a coloured TPE seal, which together handle wearing surfaces and foot traffic. Meanwhile, wall and ceiling systems use a simpler aluminium wall frame with the same TPE seal, giving a clean finish across vertical and overhead joints. In addition, gap widths run from 25 to 150 mm, and fire-rated options are available. If your project needs something outside this range, our bespoke service can help.
If your expansion joint sits within a trafficked floor slab, choose a floor product. Alternatively, if the joint runs vertically through a wall or across a ceiling, choose a wall or ceiling product instead. Below, each product links to its own page, where you’ll find gap widths, ADA compliance details, fire ratings, and downloadable TDS, DWG, and NBS files. First, browse the range here to find the right MaxAtec configuration. Then, open the individual product page to confirm the exact specification for your project. For a similar range built around metal load plates rather than a seal system, see our MegAtec overview, or visit our MicrAtec overview for lighter-duty applications. If you have questions about which configuration suits your project, get in touch with our team.
