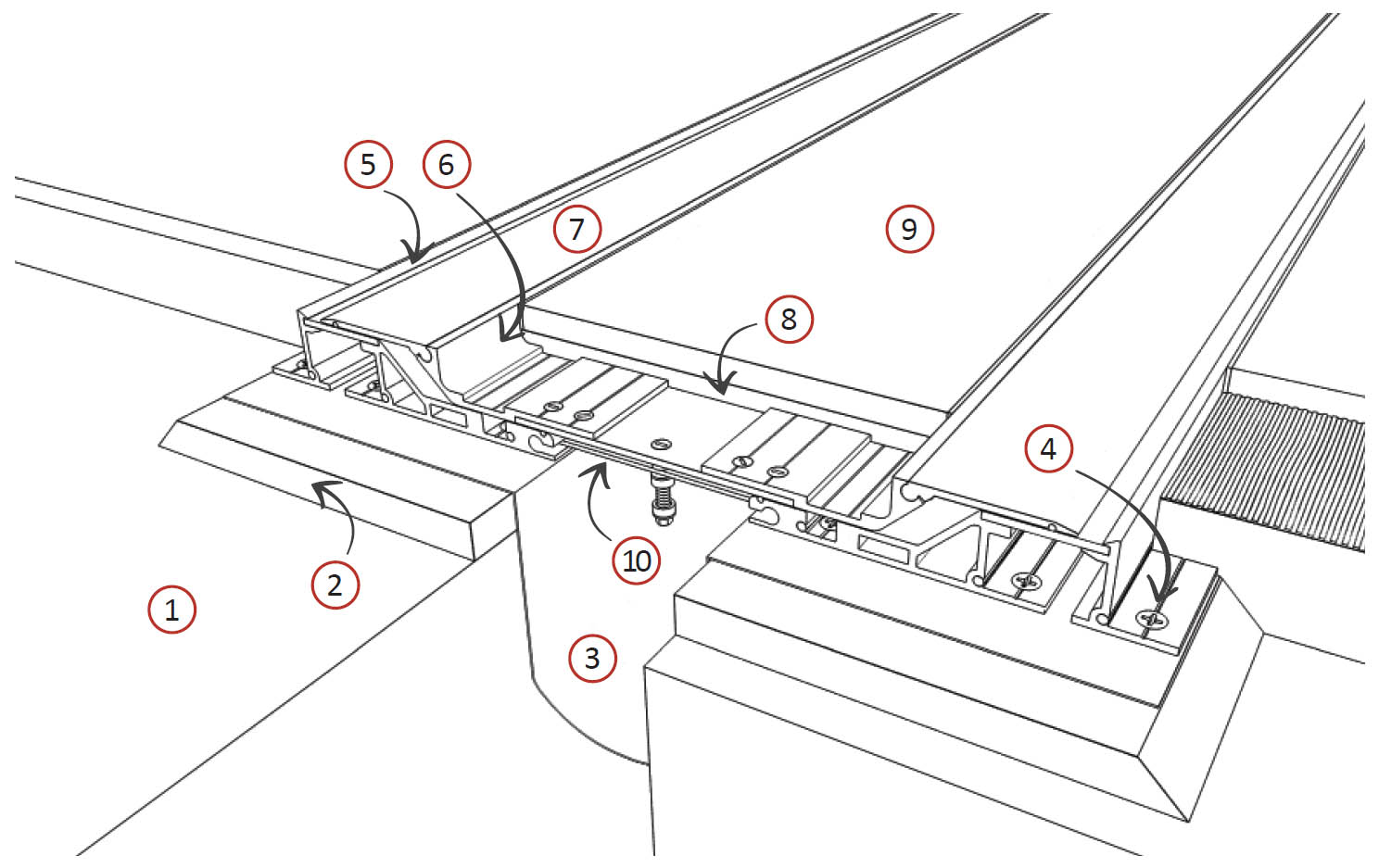

Typical Components

(1) Concrete wall
(2) M6 x 75mm galvanise dipped, carbon steel, self-tapping concrete screws
(3) Continuous aluminium wall frame
(4) Continuous aluminium tray frame
(5) Continuous aluminium floor frame
(6) Centering bar
(7) Sealant
(8) Finishes

SeismAtec Series

Seismic pan expansion joint system for walls

What this page covers

SeismAtec is Vexcolt’s seismic pan expansion joint system, built for floors and walls that need to withstand major structural movement. Unlike a standard floor joint, SeismAtec uses a continuous aluminium pan combined with pivot plates instead of a fixed seal. As a result, the system can absorb sudden seismic shifts without breaking the walking surface. In addition, the pivot plates form ADA-compliant ramps if the pan lifts during an earthquake, so people with disabilities can still evacuate safely. Meanwhile, a centering bar and reinforcing mesh keep the whole assembly properly aligned within the epoxy mortar bed. For projects that also need a standard (non-seismic) expansion joint elsewhere in the building, our MegAtec overview covers that range.

How to use this page

If your project sits in a seismic zone, SeismAtec is the right starting point for both floor and wall expansion joints. Below, each product links to its own page, where you’ll find full specifications and downloadable technical files. First, check the gap width and movement class your project needs. Then, select the SeismAtec profile that matches those requirements. For applications with heavy vehicle or foot traffic instead of seismic movement, take a look at our TransAtec overview, or browse our full product range to compare all available systems. If you’re not sure which joint suits your project’s seismic requirements, get in touch with our team.
