Surface
Americans with Disabilities Act (ADA) compliant across the entire movement cycle
Ribbed surface to TPE rubber for improved slip resistance
Movement
Good movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind

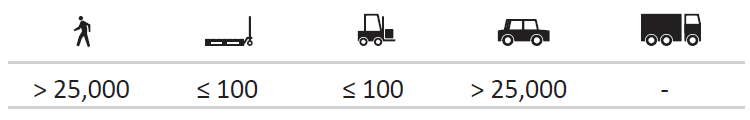

Traffic Frequency per day
Downloads
Request Price/Sample

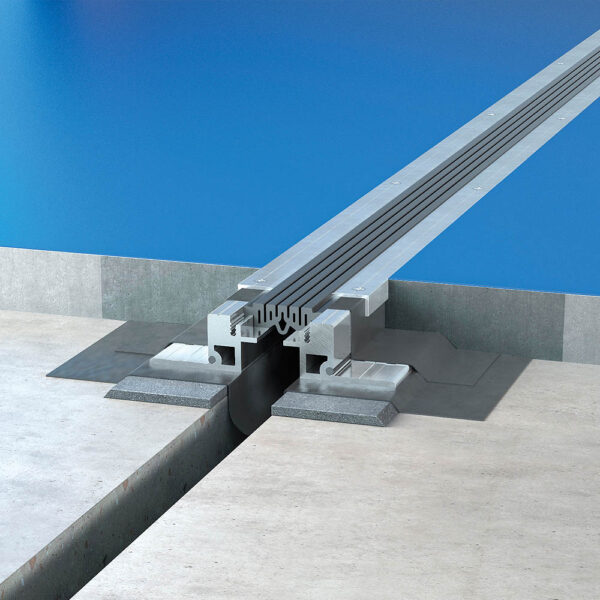

The TransAtec 1100-A01 is an ADA-compliant floor expansion joint with ribbed TPE rubber surface, 120-minute fire barrier, waterproofing membrane.

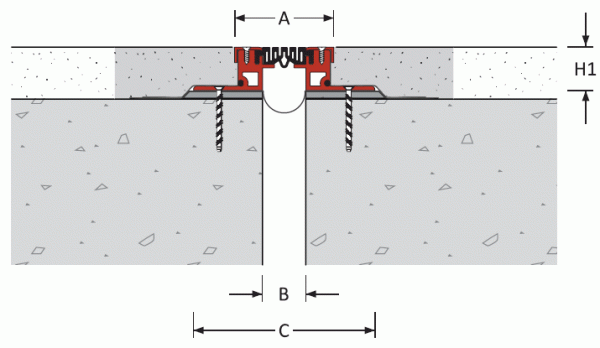

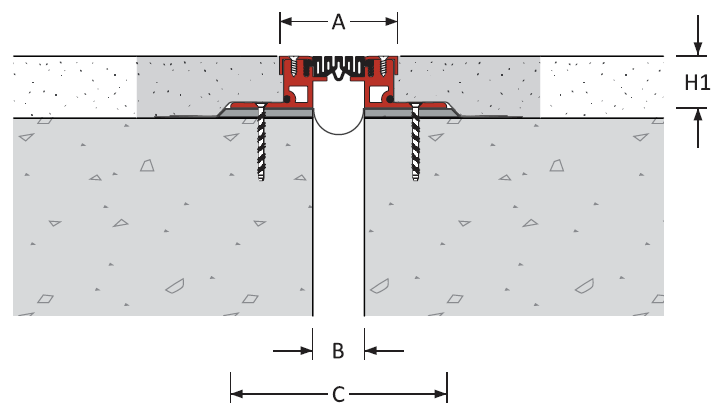

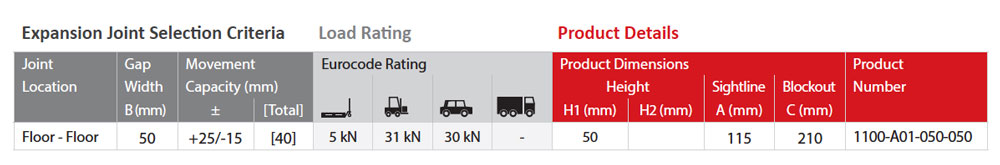

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||
| Floor – Floor | 50 | +25/-15 | [40] | 5 kN | 31 kN | 30 kN | – | 50 | 115 | 210 | 1100-A01-050-050 | |
| Gap width(s) | 50 mm |
|---|---|
| Height(s) | 50 mm |
| Metal type(s) | 6063 T5 & T6 Aluminium |
| Colour(s) | Black (RAL 7021) |
| Fire barrier | 120 minutes |

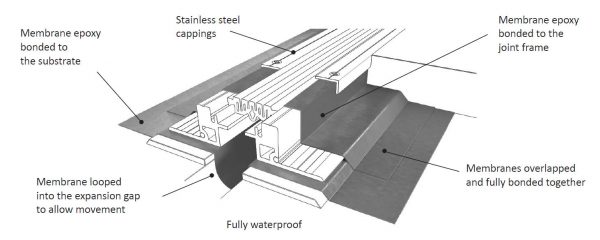

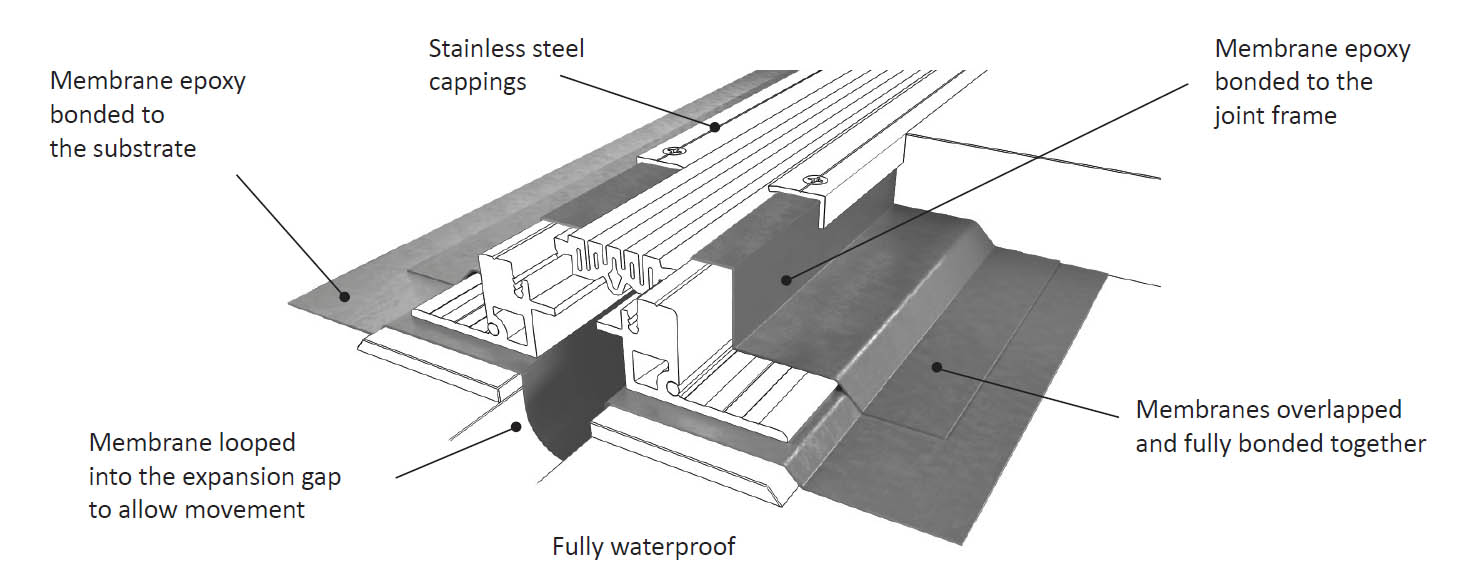

| Waterproofing | Waterproofing membrane |
| Pre-assembly in factory | Contact Vexcolt |
