Description
TransAtec 1170 S01 is a heavy-duty stainless steel floor expansion joint, providing durability, safety and reliable movement accommodation.

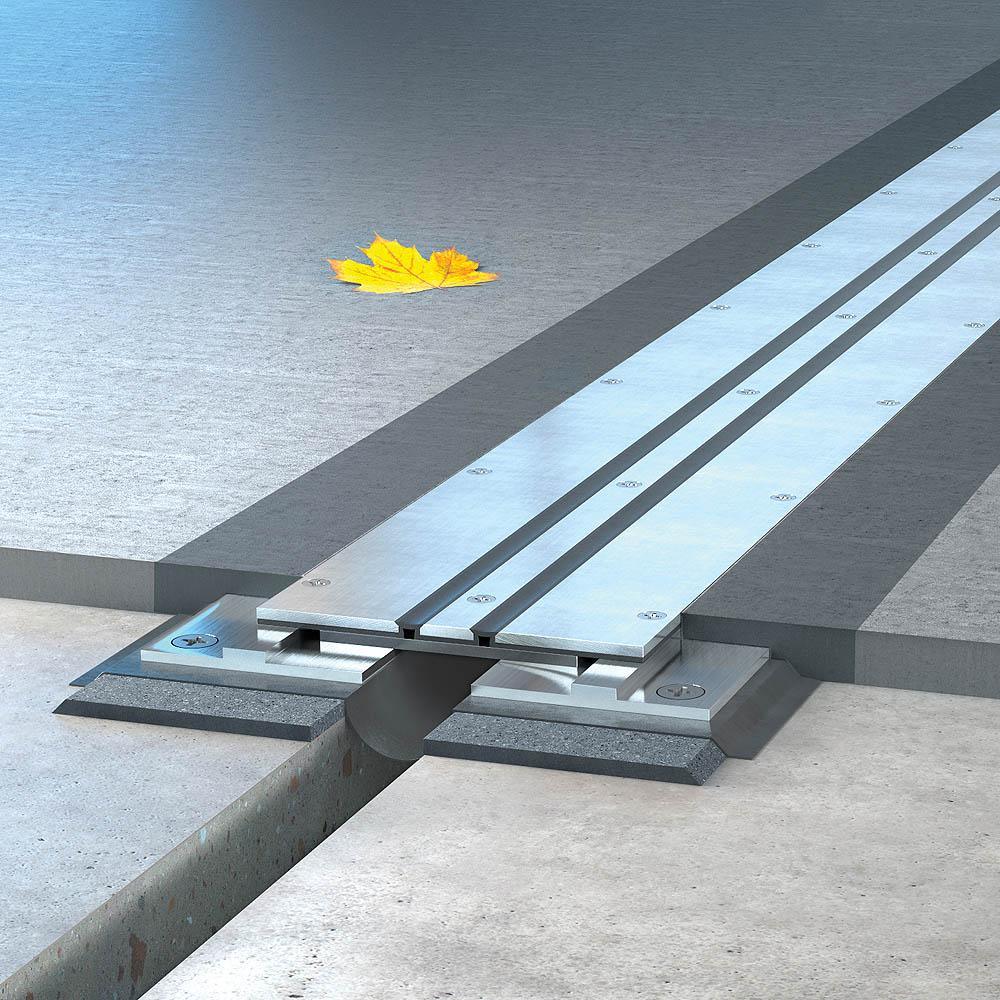

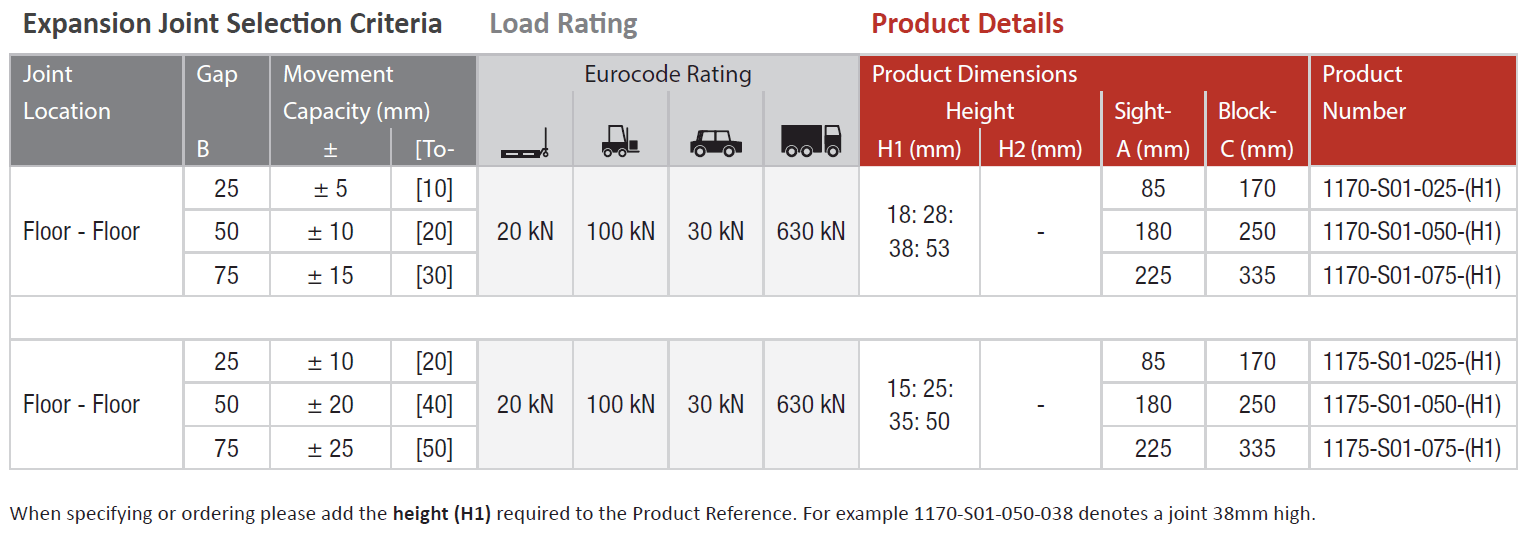

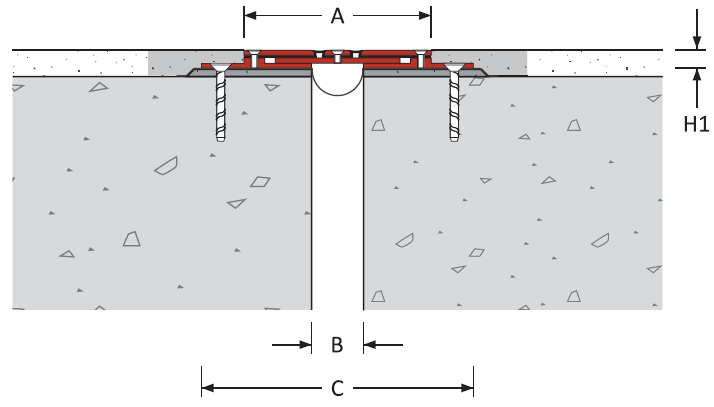

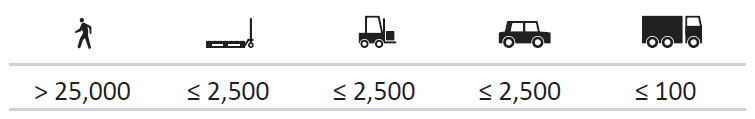

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |

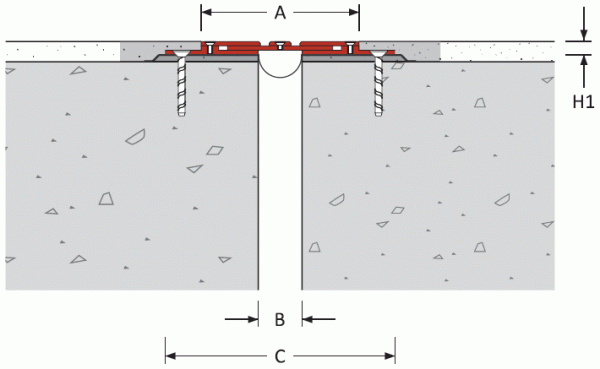

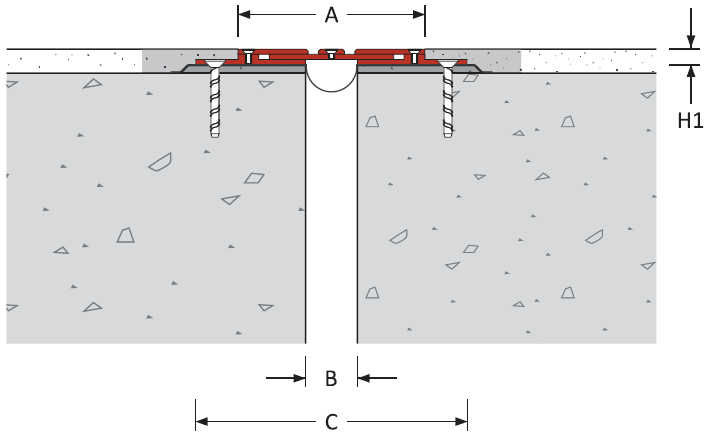

H1 (mm) | H2 (mm) | |||||
| Floor – Floor | 025 | ± 5 | [10] | 20 kN | 100 kN | 30 kN | 630 kN | 18: 28: 38: 53 |
– | 85 | 170 | 1170-S01-025-(H1) |
| 050 | ± 10 | [20] | 180 | 250 | 1170-S01-050-(H1) | |||||||
| 075 | ± 15 | [30] | 225 | 335 | 1170-S01-075-(H1) | |||||||
| Floor – Floor | 025 | ± 10 | [20] | 20 kN | 100 kN | 30 kN | 630 kN | 15: 25: 35: 50 |
– | 85 | 170 | 1175-S01-025-(H1) |
| 050 | ± 20 | [40] | 180 | 250 | 1175-S01-050-(H1) | |||||||
| 075 | ± 25 | [50] | 225 | 335 | 1175-S01-075-(H1) | |||||||
When specifying or ordering please add the height (H1) required to the Product Reference. For example 1170-S01-050-038 denotes a joint 38mm high.
