FireFlex 2200-A01-A02

Movement
High movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind

Material
High-temperature refractory ceramic fibre
Stainless steel foil sheath

Traffic Frequency per day

Downloads

Request Price/Sample

Description

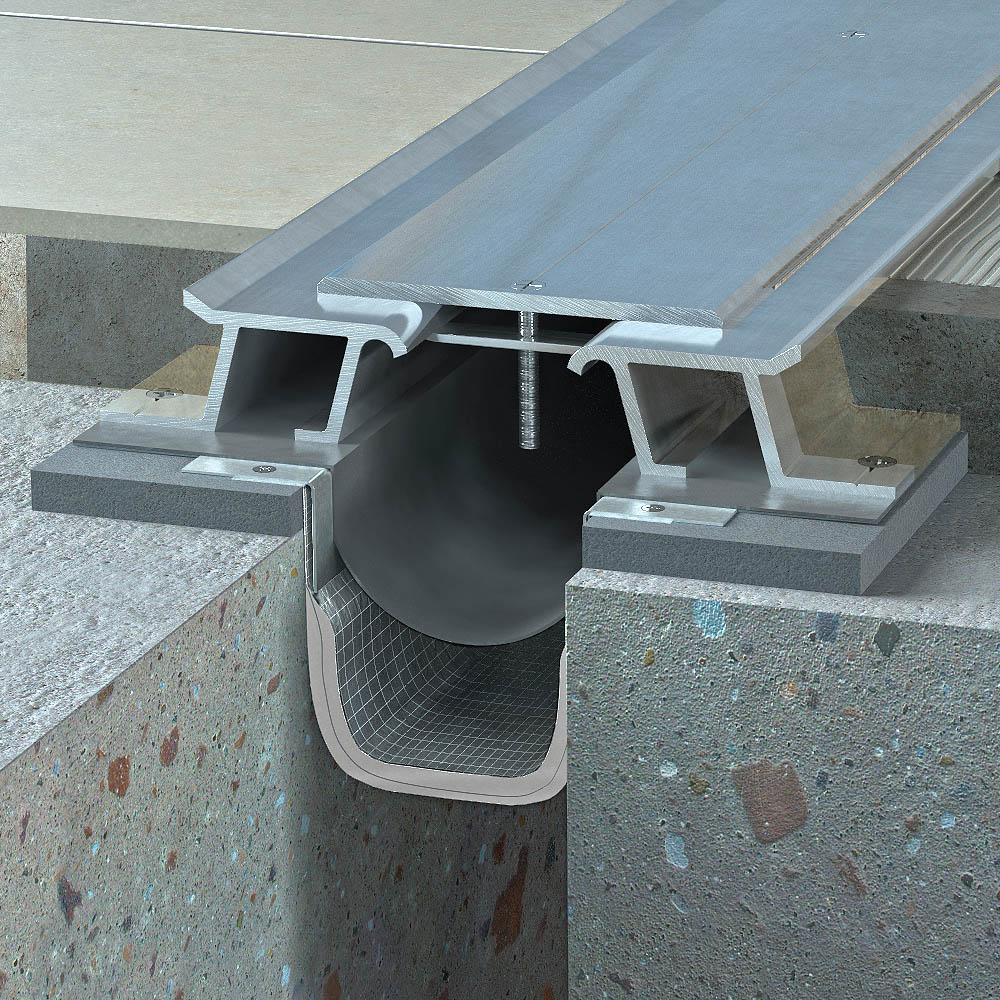

FireFlex 2200-A01-A02 expansion joint with UL 2079 120-minute barrier, ASTM E-1399 Class I & II movement capacity, ceramic fibre infill and stainless steel sheath.

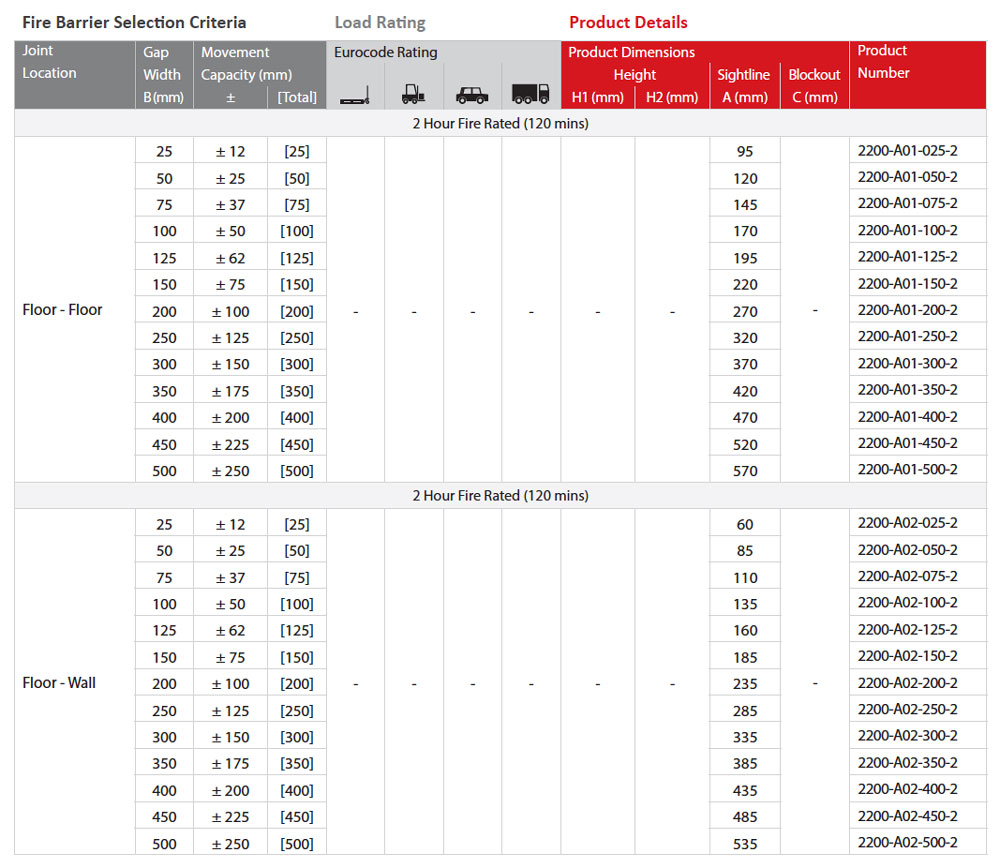

Fire Barrier Selection Criteria				Load Rating				Product Details

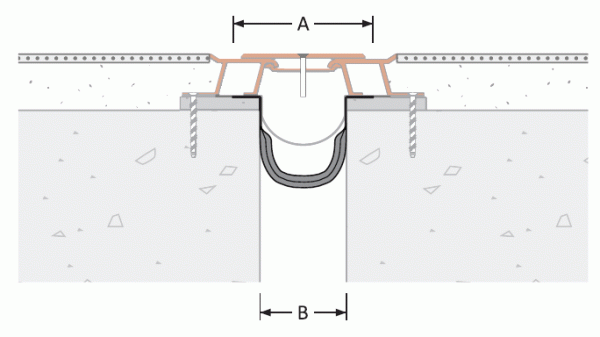

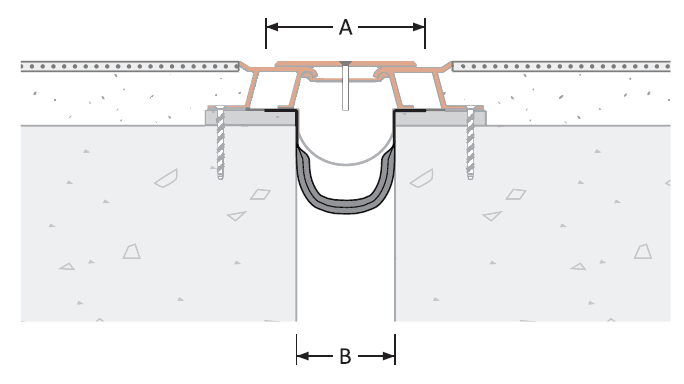

Joint Location	Gap Width B (mm)	Movement Capacity (mm)		Eurocode Rating				Product Dimensions Height		Sightline A (mm)	Blockout C (mm)	Product Number
Joint Location	Gap Width B (mm)	±	[Total]					H1 (mm)	H2 (mm)	Sightline A (mm)	Blockout C (mm)	Product Number
2 Hour Fire Rated (120 mins)
Floor – Floor	25	± 12	[25]	–	–	–	–	–	–	95	–	2200-A01-025-2
	50	± 25	[50]							120		2200-A01-050-2
	75	± 37	[75]							145		2200-A01-075-2
	100	± 50	[100]							170		2200-A01-100-2
	125	± 62	[125]							195		2200-A01-125-2
	150	± 75	[150]							220		2200-A01-150-2
	200	± 100	[200]							270		2200-A01-200-2
	250	± 125	[250]							320		2200-A01-250-2
	300	± 150	[300]							370		2200-A01-300-2
	350	± 175	[350]							420		2200-A01-350-2
	400	± 200	[400]							470		2200-A01-400-2
	450	± 225	[450]							520		2200-A01-450-2
	500	± 250	[500]							570		2200-A01-500-2
2 Hour Fire Rated (120 mins)
Floor – Wall	25	± 12	[25]	–	–	–	–	–	–	60	–	2200-A02-025-2
	50	± 25	[50]							85		2200-A02-050-2
	75	± 37	[75]							110		2200-A02-075-2
	100	± 50	[100]							135		2200-A02-100-2
	125	± 62	[125]							160		2200-A02-125-2
	150	± 75	[150]							185		2200-A02-150-2
	200	± 100	[200]							235		2200-A02-200-2
	250	± 125	[250]							285		2200-A02-250-2
	300	± 150	[300]							335		2200-A02-300-2
	350	± 175	[350]							385		2200-A02-350-2
	400	± 200	[400]							435		2200-A02-400-2
	450	± 225	[450]							485		2200-A02-450-2
	500	± 250	[500]							535		2200-A02-500-2

Additional information

Gap width(s)	25, 50, 75, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500 mm
Metal type(s):	Stainless Steel foil
Colour(s)	Stainless Steel sheath
Fire barrier	UL 2079: 120 minutes
Waterproofing	Waterproofing membrane
Pre-assembly in factory	Contact Vexcolt
