Description

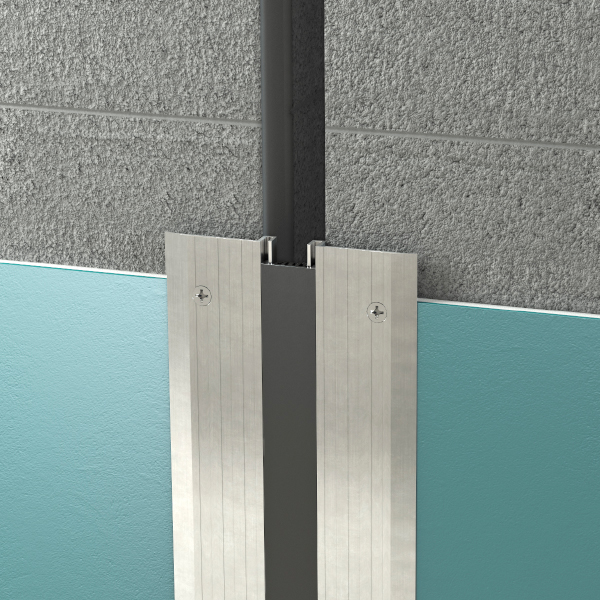

MaxAtec 135-A07/A09 – retrofit wall expansion joint with smooth surface and thermal/wind movement capacity. Gap widths 25–50 mm, up to 240-min with a fire barrier.

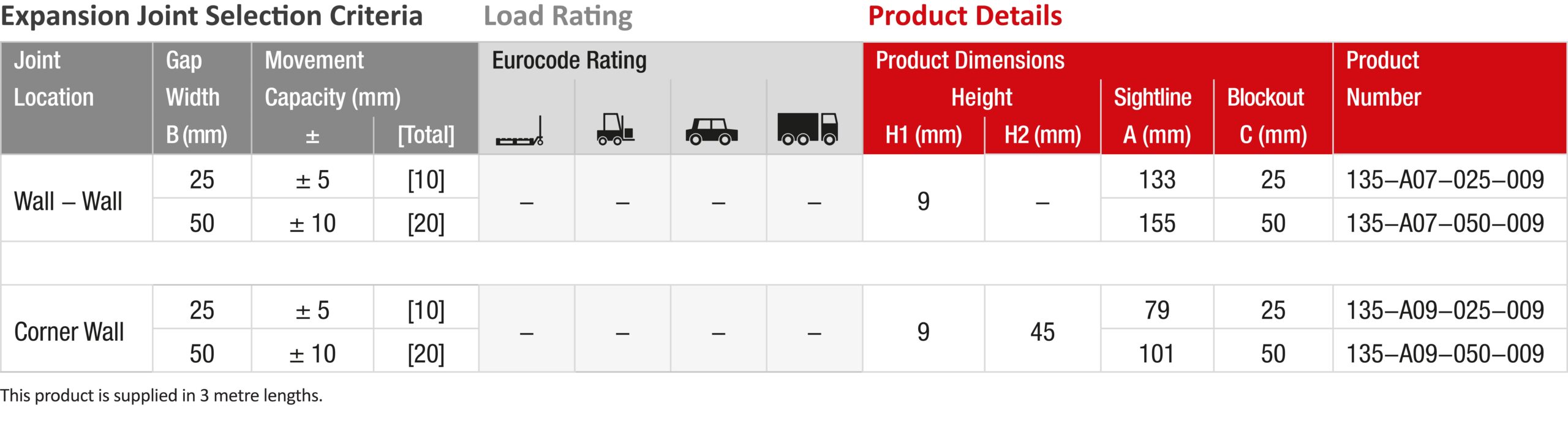

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |

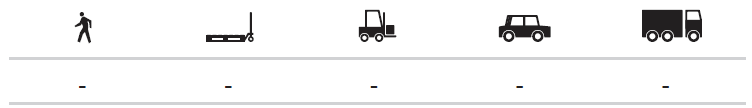

Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

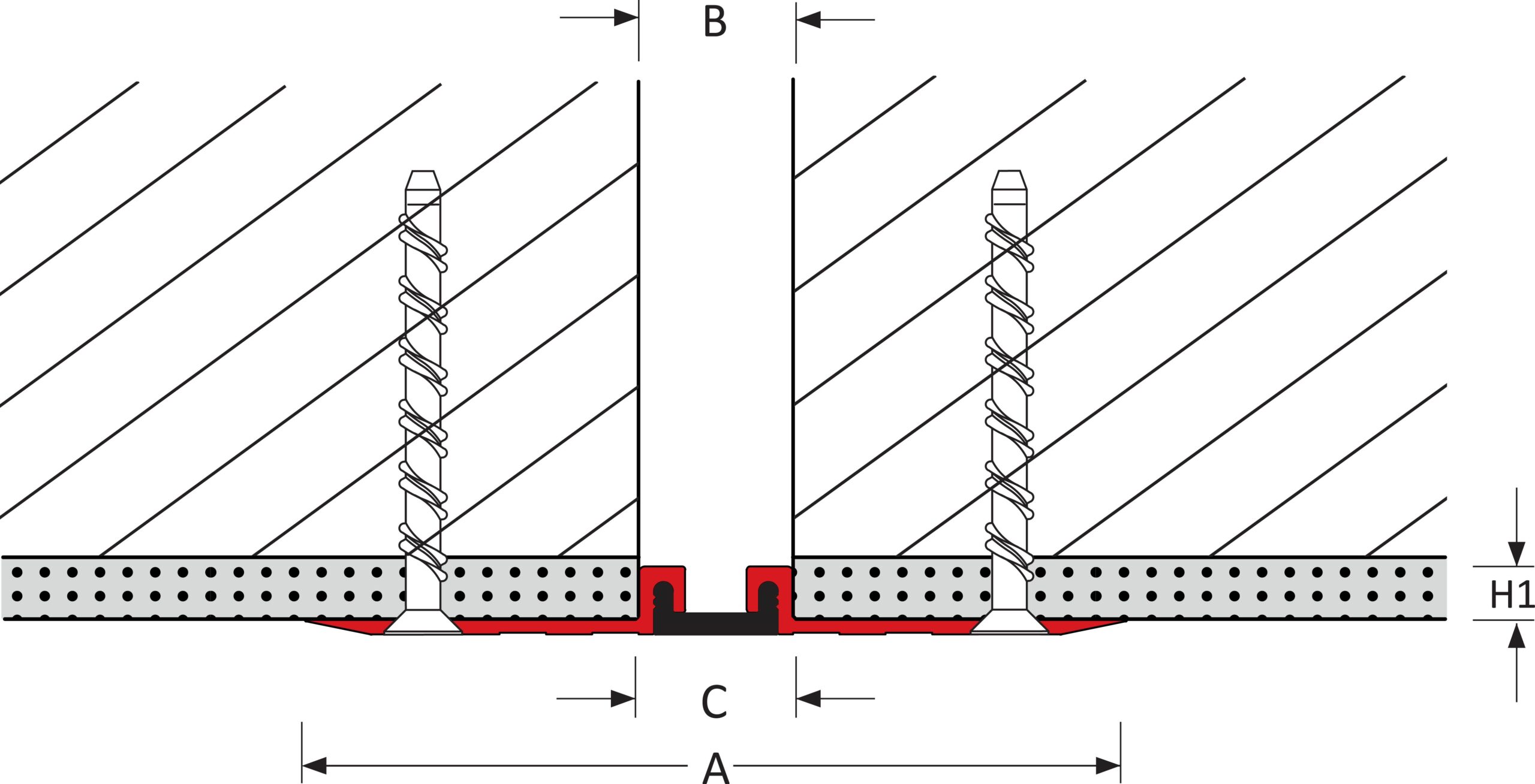

| Wall – Wall | 025 | ± 5 | [10] | – | – | – | – | 9 | – | 133 | 25 | 135-A07-025-009 |
| 050 | ± 10 | [20] | 155 | 50 | 135-A07-050-009 | |||||||

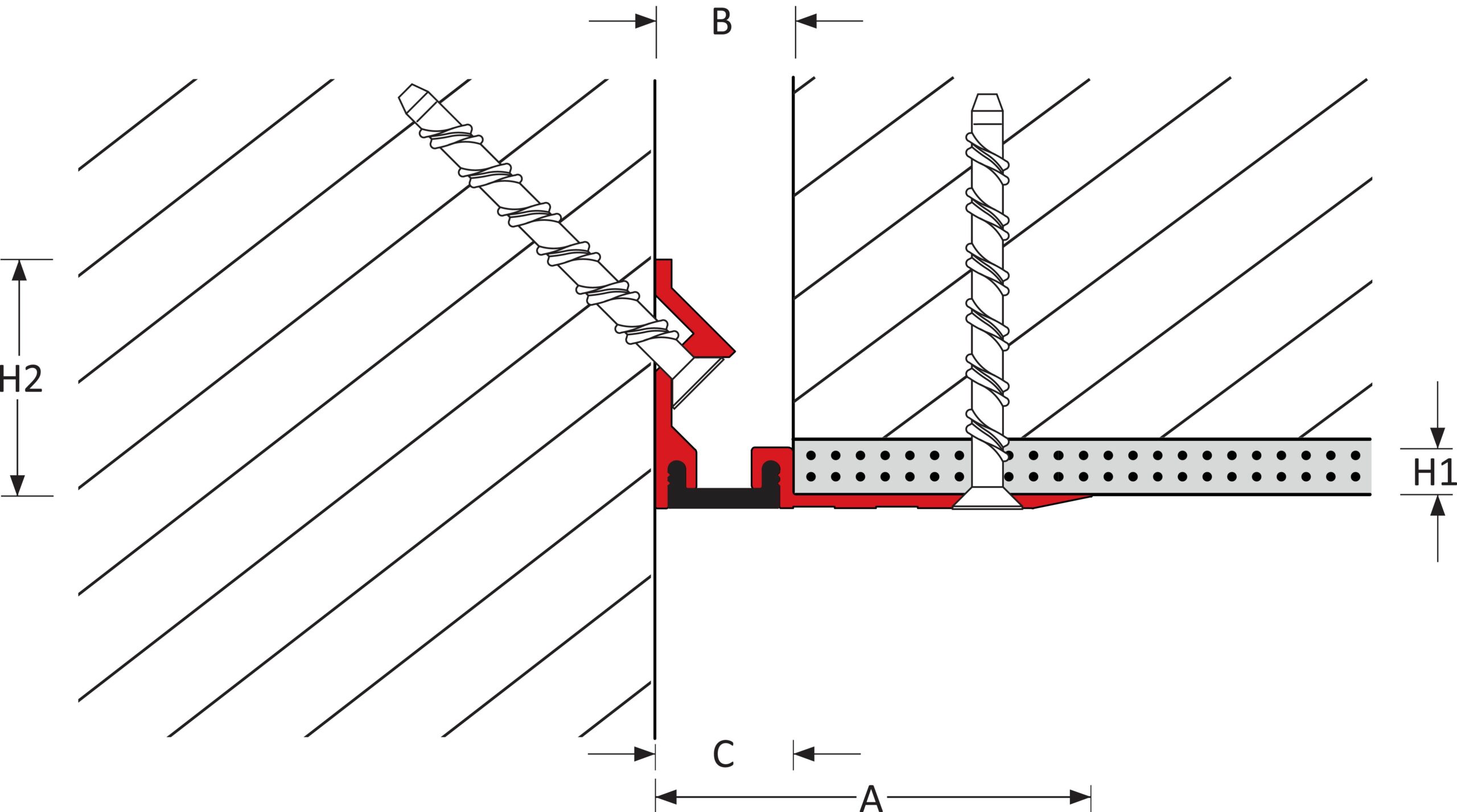

| Corner Wall | 025 | ± 5 | [10] | – | – | – | – | 9 | 45 | 79 | 25 | 135-A09-025-009 |
| 050 | ± 10 | [20] | 101 | 50 | 135-A09-050-009 | |||||||
This product is supplied in 3 metre lengths.
