Description

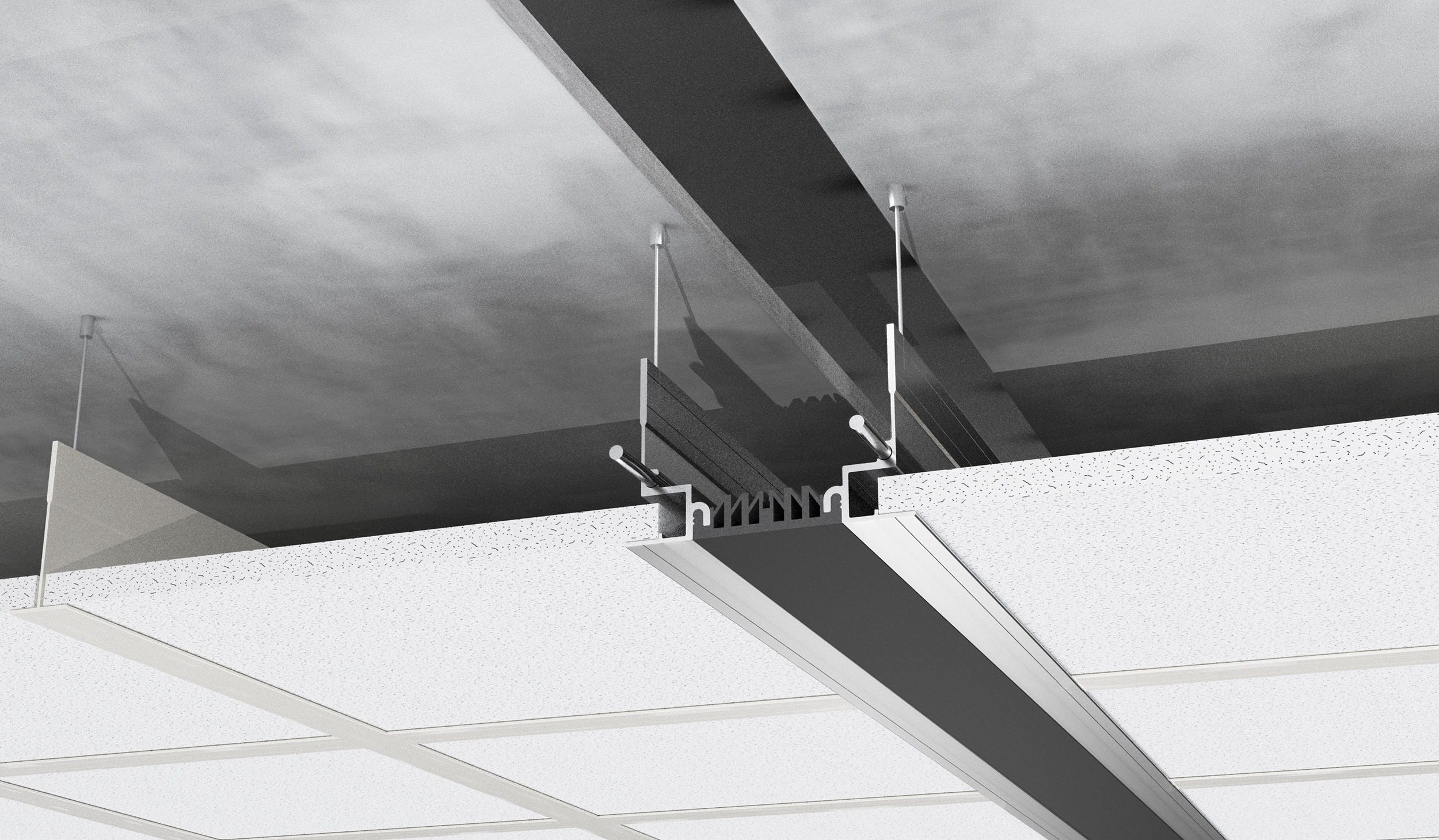

MaxAtec 137-A07/A09 – smooth-surface expansion joint for ceiling and wall applications. Gap widths 25–50 mm, 120-min with a fire barrier, moisture barrier.

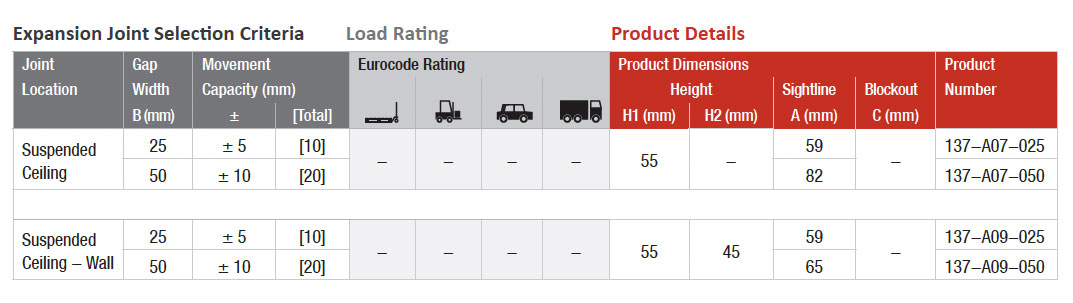

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

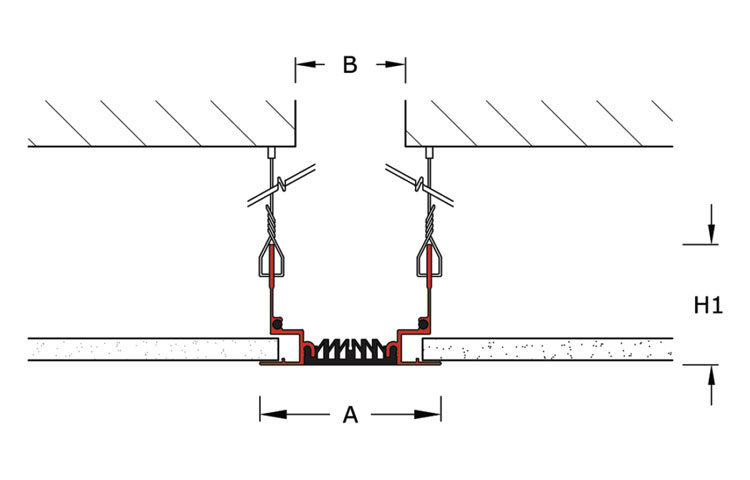

| Suspended Ceiling |
025 | ± 5 | [10] | – | – | – | – | 55 | – | 59 | – | 137-A07-025 |
| 050 | ± 10 | [20] | 82 | – | 137-A07-050 | |||||||

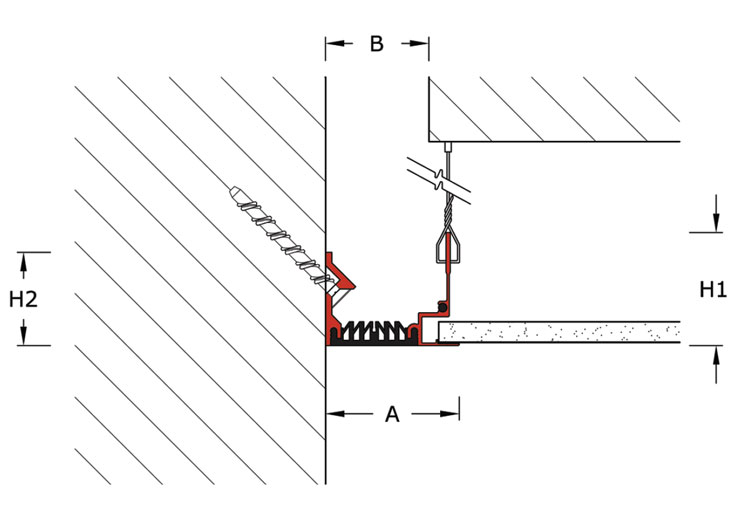

| Suspended Ceiling – Wall |
025 | ± 5 | [10] | – | – | – | – | 55 | 45 | 59 | – | 137-A09-025 |
| 050 | ± 10 | [20] | 65 | – | 137-A09-050 | |||||||
