Description

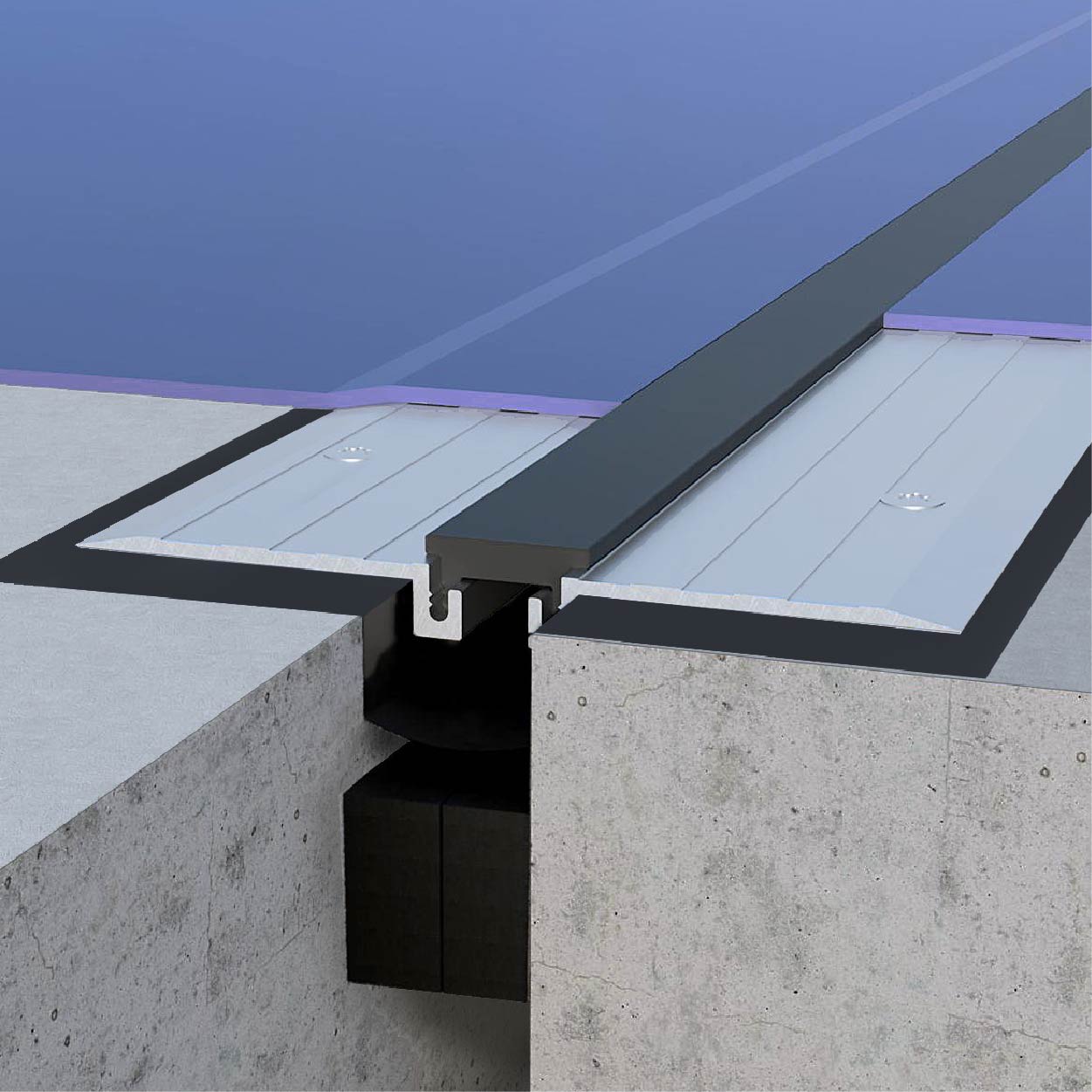

MaxAtec 135-V01/V02: surface-mounted retrofit expansion joint for vinyl floors. Raised TPE seal for a seamless finish. ADA compliant, ASTM E-1399 rated.

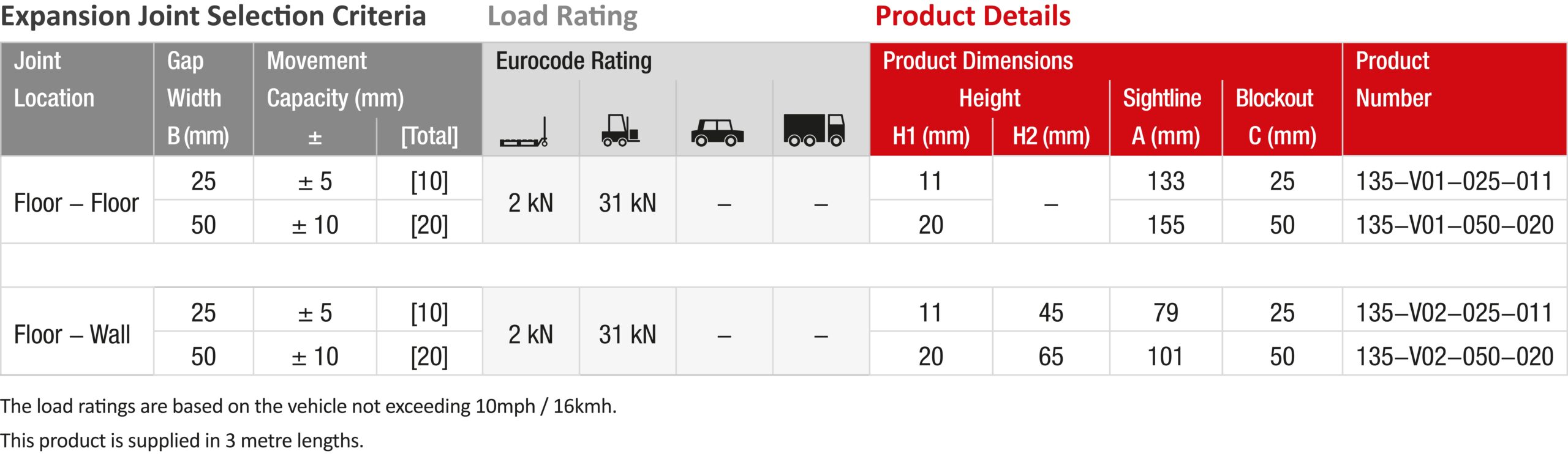

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions | Product Number |
|||||||
| ± | [Total] |  |
 |
 |
 |
Height | Sightline | Blockout | ||||
| H1 (mm) | H2 (mm) | |||||||||||

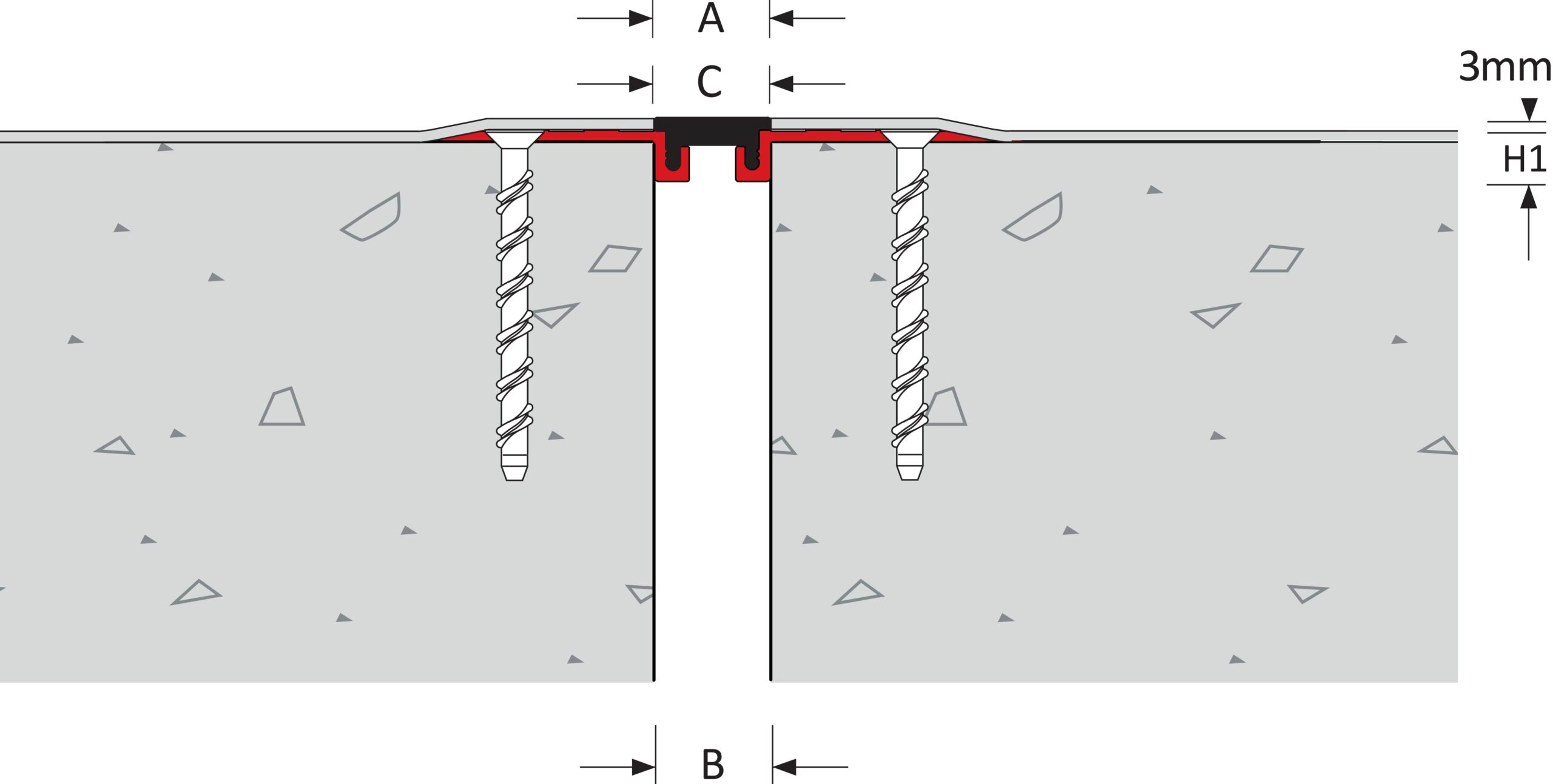

| Floor – Floor | 25 | ± 5 | [10] | 2 kN | 31 kN | – | – | 11 | – | 133 | 25 | 135–V01–025–011 |
| 50 | ± 10 | [20] | 19 | 155 | 50 | 135–V01–050–019 | ||||||

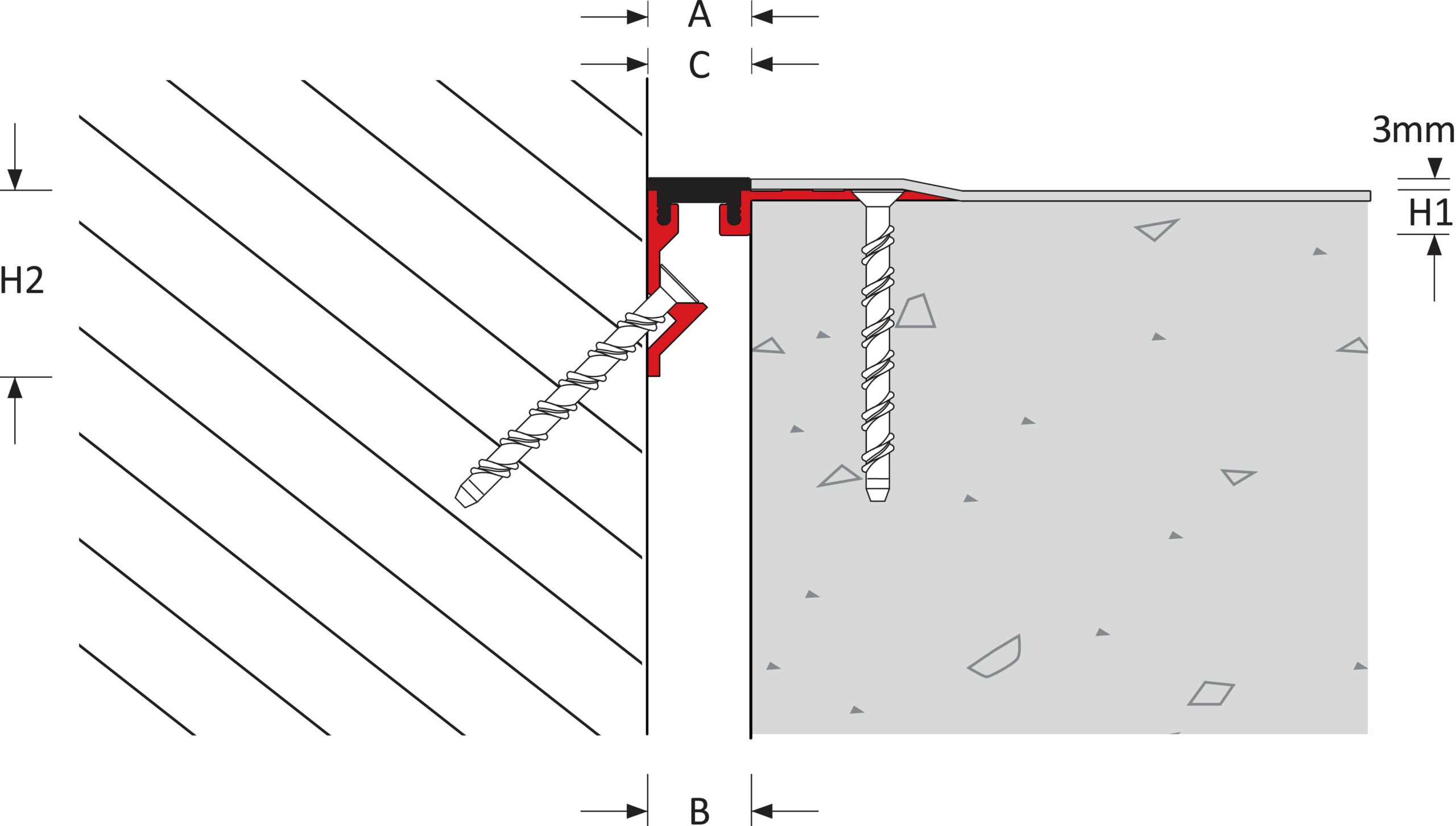

| Floor – Wall | 25 | ± 5 | [10] | 2 kN | 31 kN | – | – | 11 | 45 | 79 | 25 | 135–V02–025–011 |
| 50 | ± 10 | [20] | 19 | 65 | 101 | 50 | 135–V02–050–019 | |||||
The load ratings are based on the vehicle not exceeding 10mph / 16kmh.
This product is supplied in 3 metre lengths.
