Description

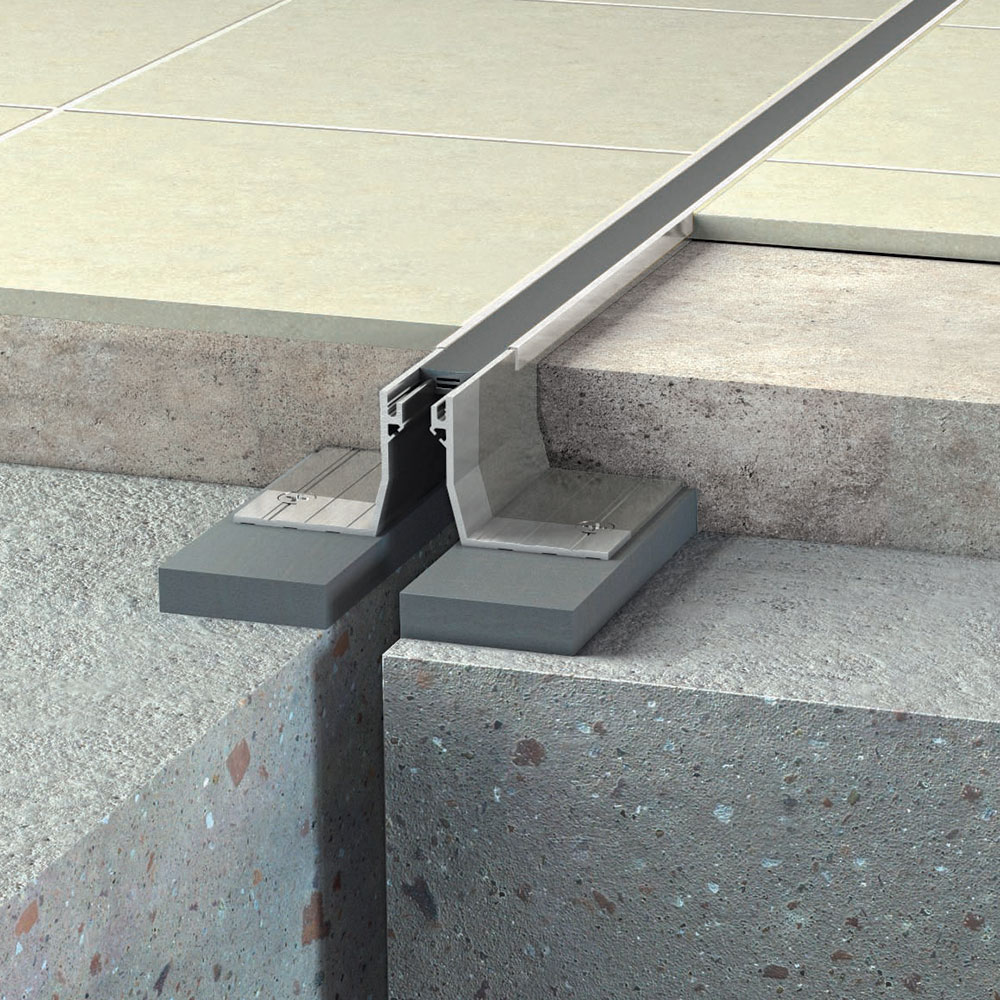

MaxAtec 130-S01/S02: single-seal floor expansion joint with 304 stainless steel capping. Gap widths 25–50 mm, ADA, fire-rated. For high-spec interiors.

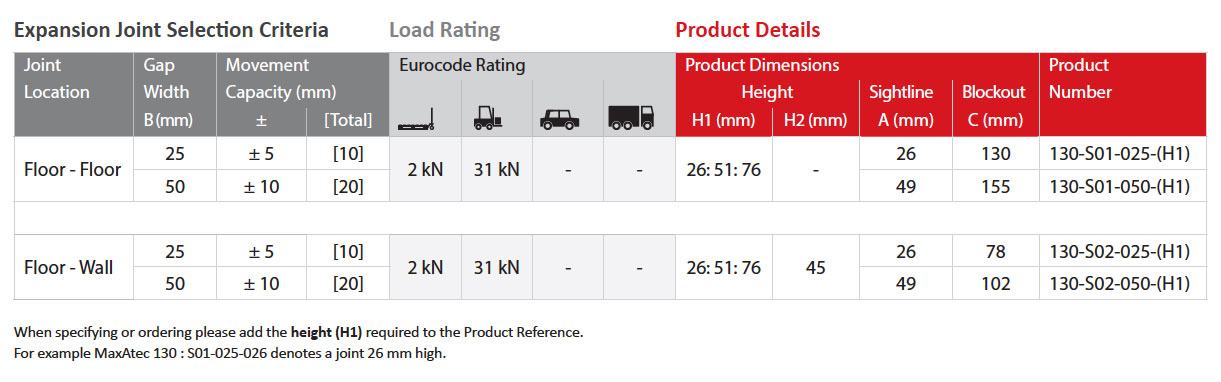

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

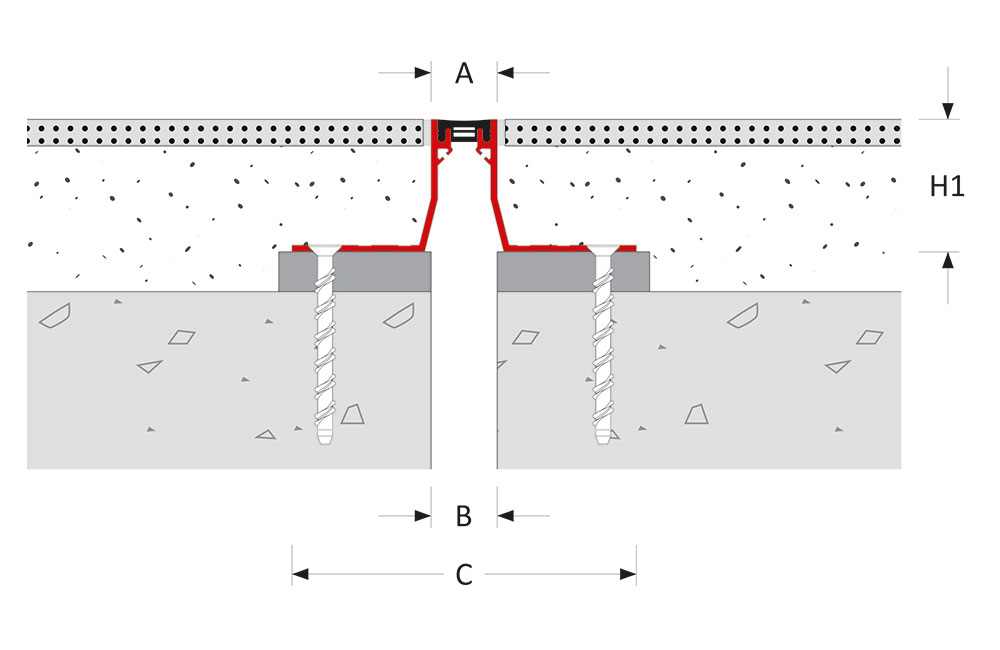

| Floor – Floor | 025 | ± 5 | [10] | 2 kN | 31 kN | – | – | 26: 51: 76 | – | 26 | 130 | 130-S01-025-(H1) |
| 050 | ± 10 | [20] | 49 | 155 | 130-S01-050-(H1) | |||||||

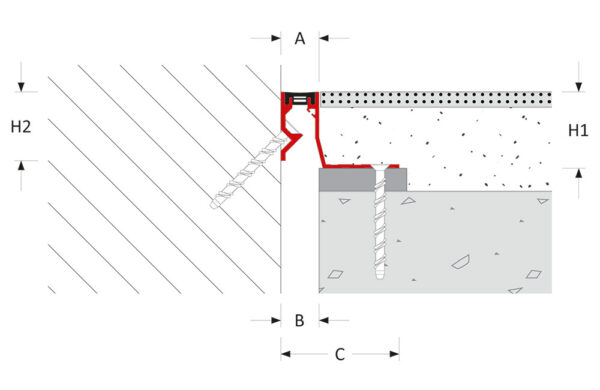

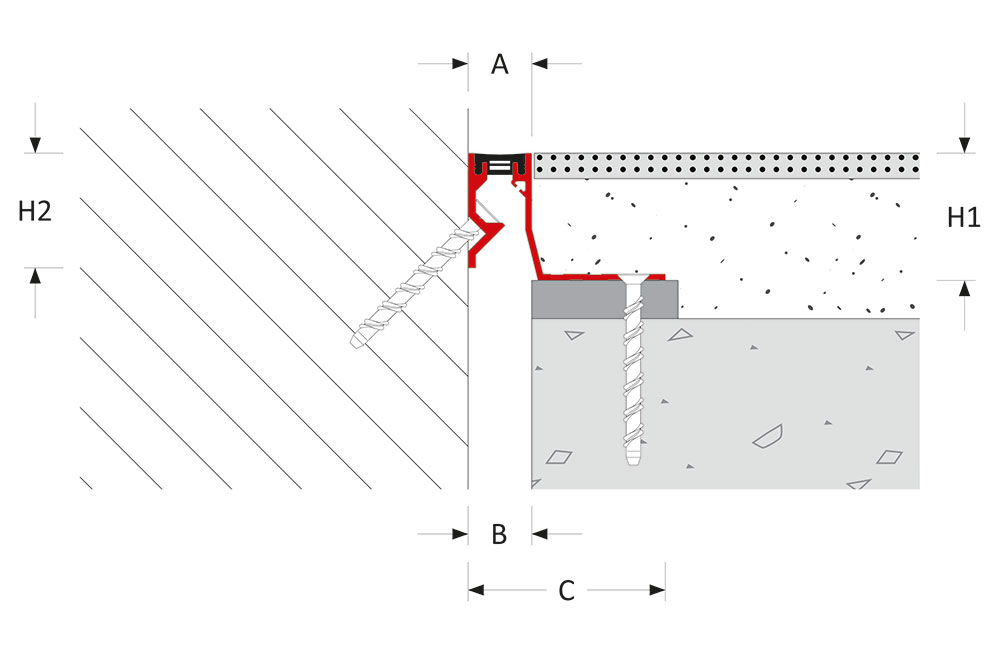

| Floor – Wall | 025 | ± 5 | [10] | 2 kN | 31 kN | – | – | 26: 51: 76 | 45 | 26 | 78 | 130-S02-025-(H1) |
| 050 | ± 10 | [20] | 49 | 102 | 130-S02-050-(H1) | |||||||
When specifying or ordering please add the height (H1) required to the Product Reference.
For example MaxAtec 130 : S01-025-026 denotes a joint 26 mm high.
