Description

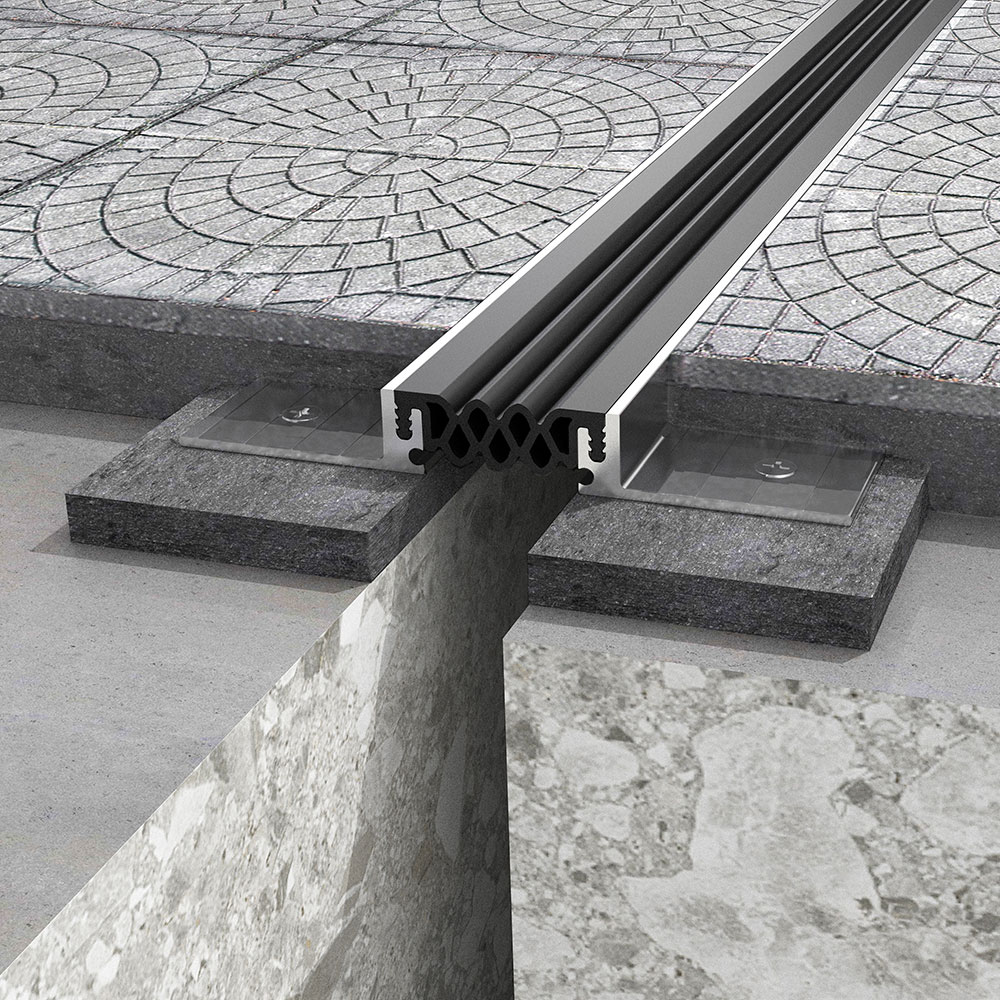

MaxAtec 145-A01/A02: surface-mounted retrofit floor expansion joint with ribbed slip-resistant surface. Gap widths to 100 mm, high movement capacity. AD compliant.

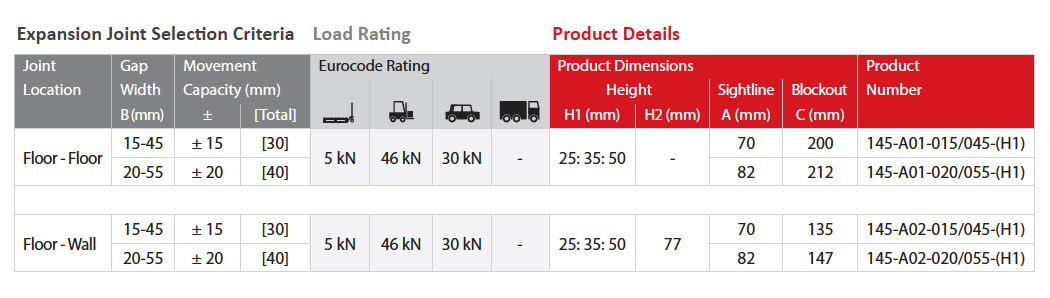

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

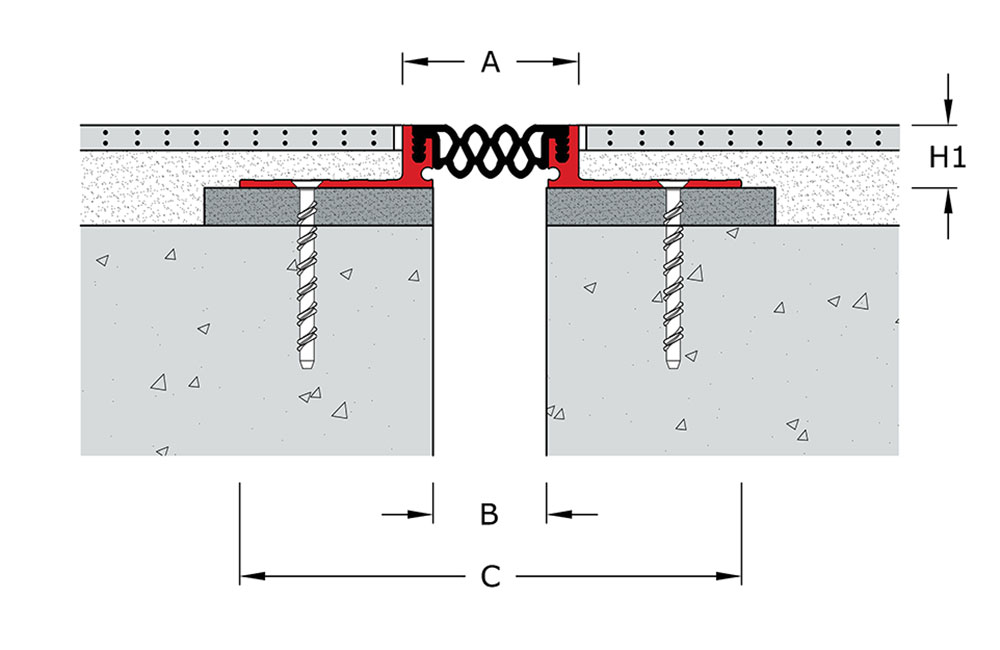

| Floor – Floor | 15-45 | ± 15 | [30] | 5 kN | 46 kN | 30 kN | – | 25: 35: 50 | – | 70 | 200 | 145-A01-015/045-(H1) |
| 20-55 | ± 20 | [40] | 82 | 212 | 145-A01-020/055-(H1) | |||||||

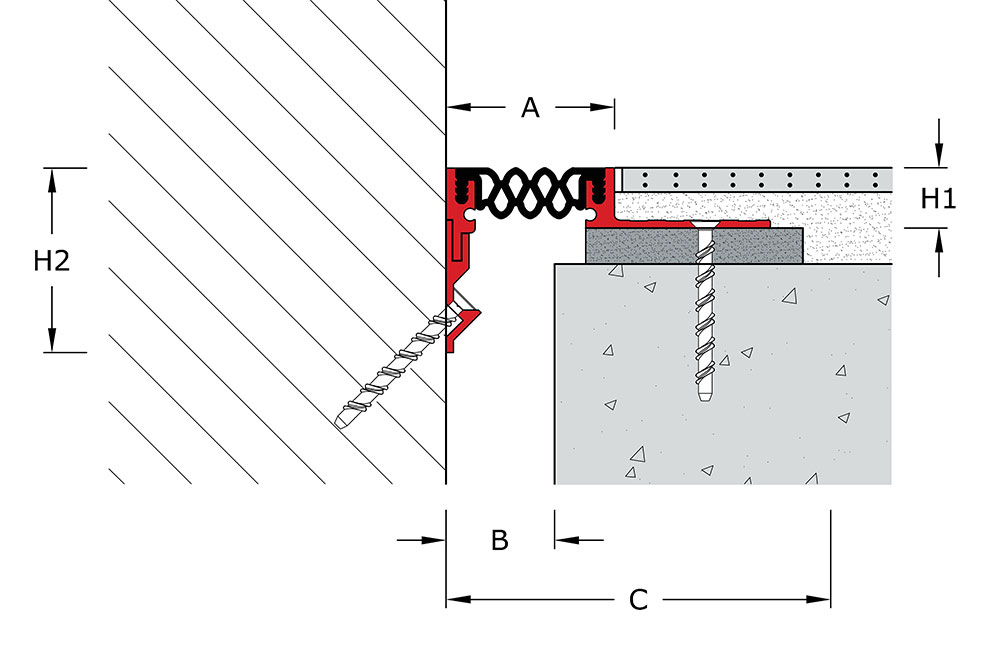

| Floor – Wall | 15-45 | ± 15 | [30] | 5 kN | 46 kN | 30 kN | – | 25: 35: 50 | 77 | 70 | 135 | 145-A02-015/045-(H1) |
| 20-55 | ± 20 | [40] | 82 | 147 | 145-A02-020/055-(H1) | |||||||
