SeismAtec 440-A01/A02

Surface
Smooth transit central pan system

Movement
Seismic movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind
Class III: Seismic
Thermal & Wind movement: +/-25.0mm
Seismic movement: +/-50% of expansion gap width

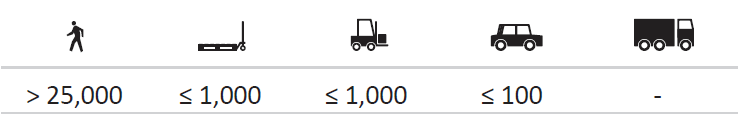

Traffic Frequency per day

Downloads





Animations





Request Price/Sample

Request a Vexcolt sample



Check this product with Vexpert

Description

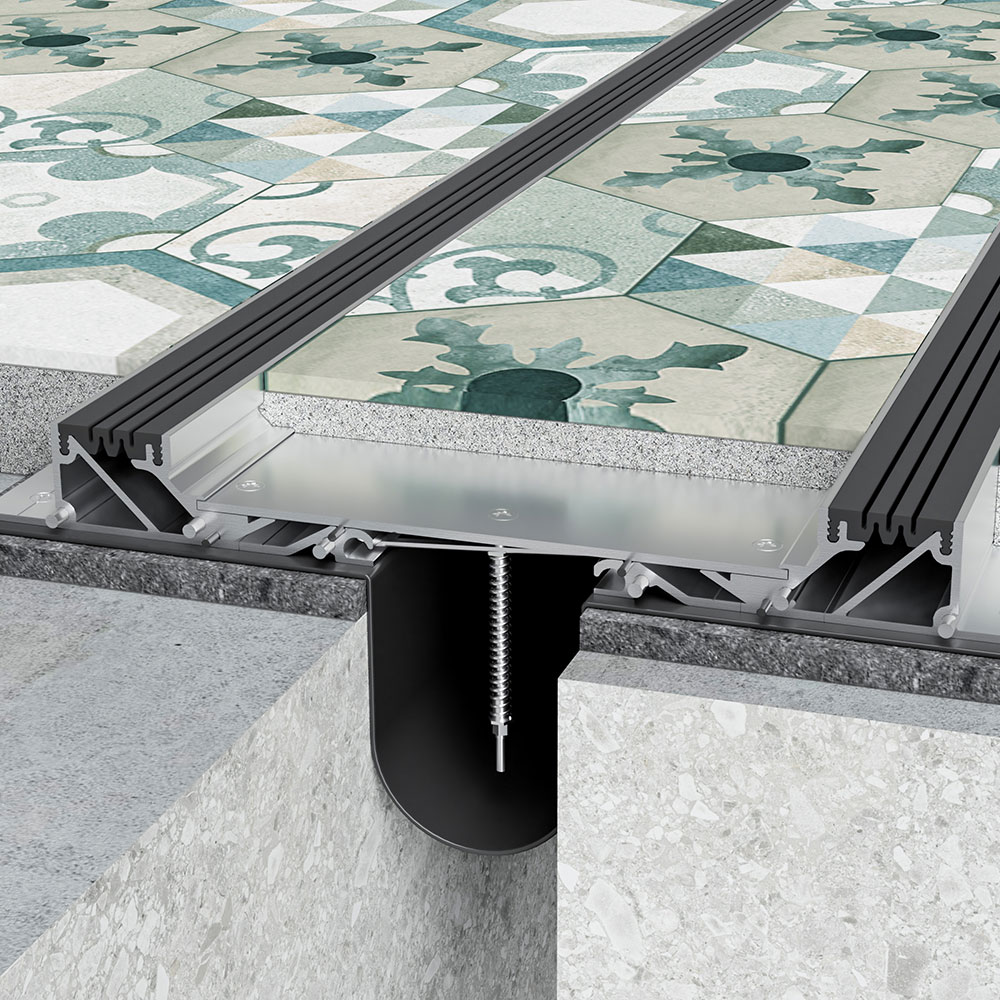

The SeismAtec 440-A01-A02 is a floor to floor and a floor to wall seismic expansion joint with smooth central pan, ASTM E-1399 Class III rating, 120-minute with a fire barrier.

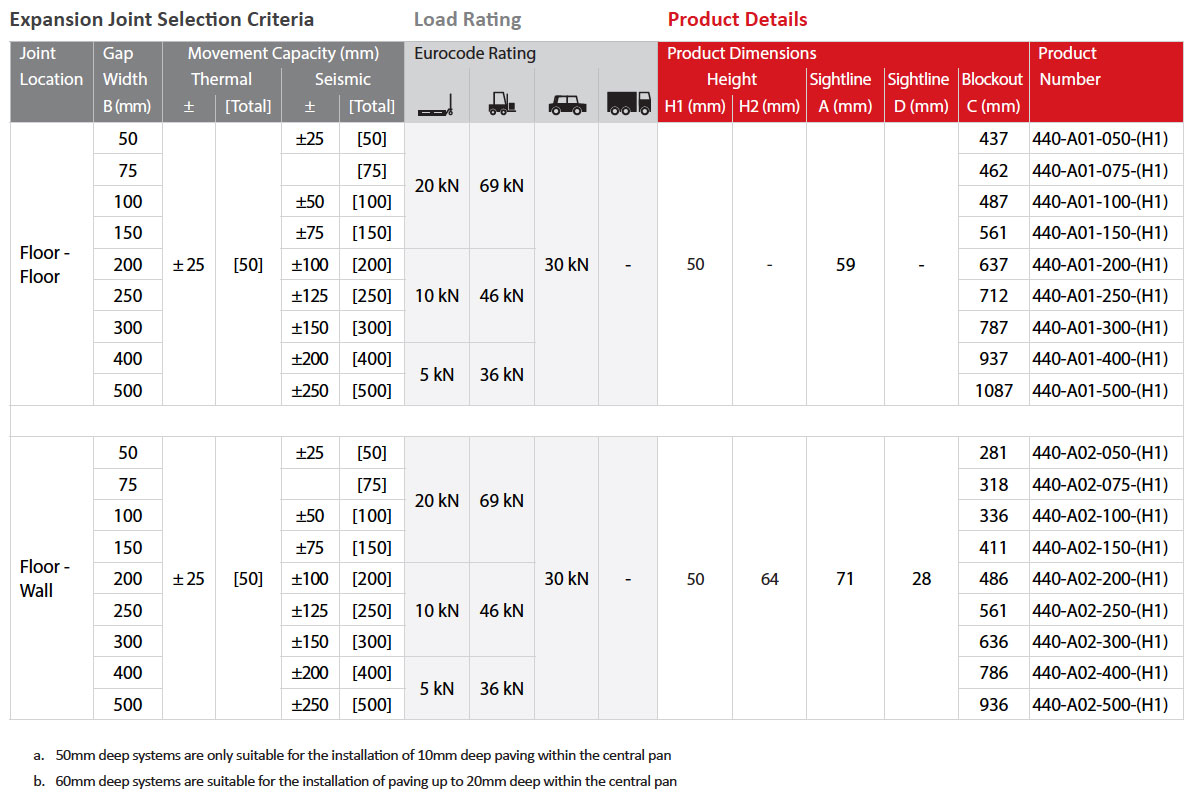

Expansion Joint Selection Criteria Load Rating Product Details
Joint Gap
Width
B (mm)
Thermal Seismic handtruck forklift car truck H1 (mm) H2 (mm) Sightline
A (mm)
Sightline
D (mm)
Blockout
C (mm)
Product
Number
± [Total] ± [Total]

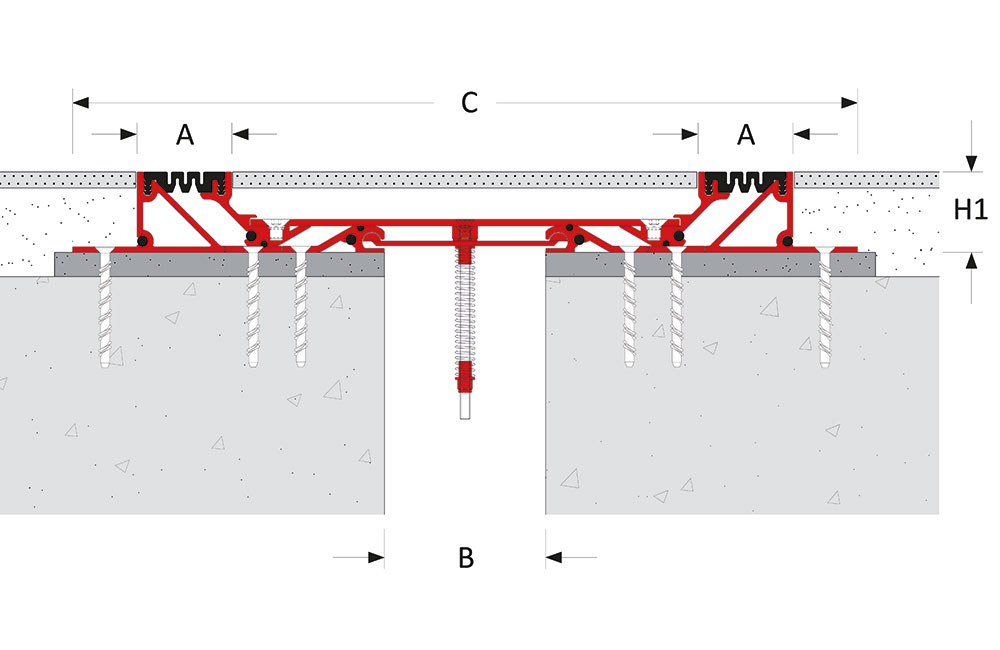

Floor – Floor 50 ± 25 [50] ± 25 [50] 20 kN 69 kN 30 kN – 50 – 50 – 399 440–A01–50–050
75 ± 37.5 [75] 437 440–A01–75–050
100 ± 50 [100] 473 440–A01–100–050
150 ± 75 [150] 548 440–A01–150–050
200 ± 100 [200] 10 kN 46 kN 624 440–A01–200–050
250 ± 125 [250] 699 440–A01–250–050
300 ± 150 [300] 734 440–A01–300–050
400 ± 200 [400] 5 kN 36 kN 924 440–A01–400–050
500 ± 250 [500] 1074 440–A01–500–050

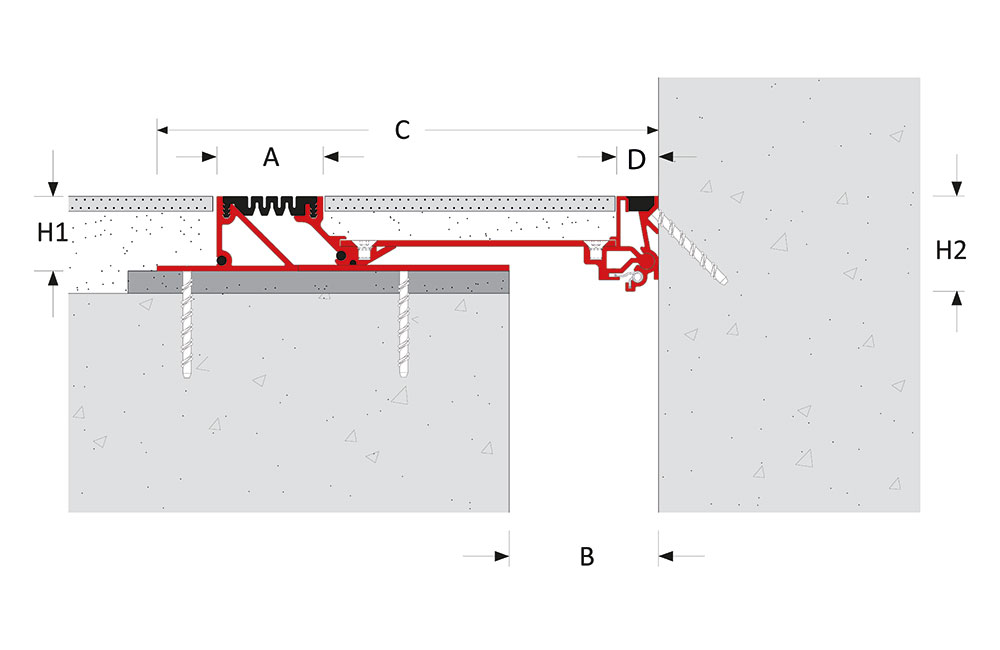

Floor – Wall 50 ± 25 [50] ± 25 [50] 20 kN 69 kN 30 kN – 50 64 50 28 220 440–A02–50–050
75 ± 37.5 [75] 246 440–A02–75–050
100 ± 50 [100] 275 440–A02–100–050
150 ± 75 [150] 350 440–A02–150–050
200 ± 100 [200] 10 kN 46 kN 425 440–A02–200–050
250 ± 125 [250] 537 440–A02–250–050
300 ± 150 [300] 612 440–A02–300–050
400 ± 200 [400] 5 kN 36 kN 762 440–A02–400–050
500 ± 250 [500] 910 440–A02–500–050

The load ratings are based on the vehicle not exceeding 10mph / 16kmh.

This product is supplied in 3 meter lengths.

Additional information

Gap width(s)

50, 75, 100, 150, 200, 250, 300, 400, 500 mm

Height(s)

50 mm

Metal type(s)

6063 T5 & T6 Aluminium

Polymer type

PVC – Nitrile

Seal colour(s)

Black (RAL 7021)
Grey (RAL 7038)
Beige (RAL 1015)
White (RAL 9003)

Fire barrier

120 minutes

Waterproofing

EPDM Membrane
Closed-cell Foam

Pre-assembly in factory
