SeismAtec 450-A01-A02 Seismic Expansion Joint

SeismAtec 450-A01-A02

Surface
Smooth transit central pan system

Movement
Seismic movement capacity ASTM E-1399
Class I: Thermal
Class II: Wind
Class III: Seismic
Thermal & Wind movement: +/-25.0mm
Seismic movement: +/-50% of expansion gap width

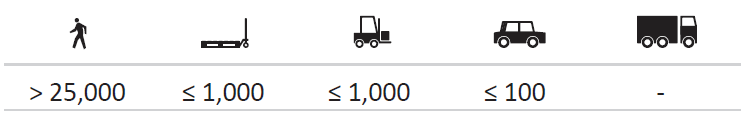

Traffic Frequency per day

Downloads

Request Price/Sample

Description

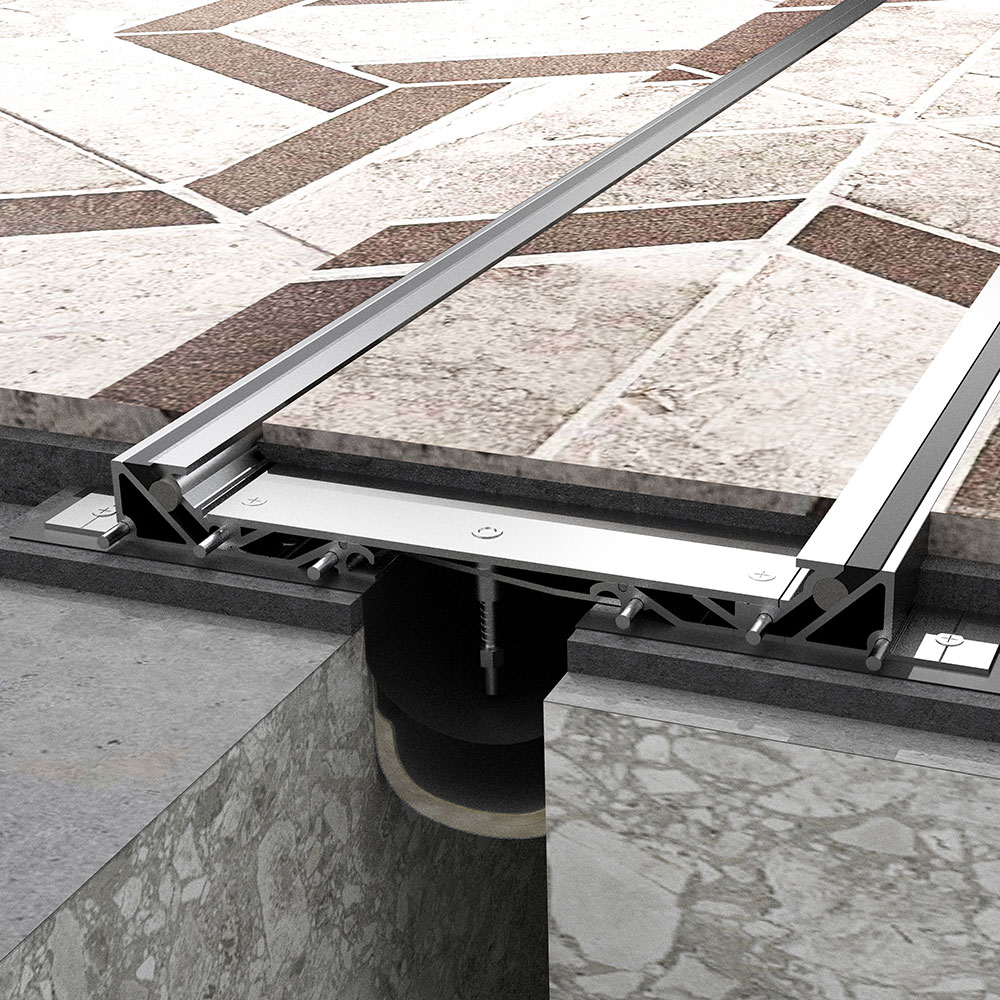

The SeismAtec 450-A01-A02 is a floor to floor and a floor to wall seismic expansion joint with smooth central pan, ASTM E-1399 Class III rating, 120-minute with a fire barrier.

Expansion Joint Selection Criteria									Product Details

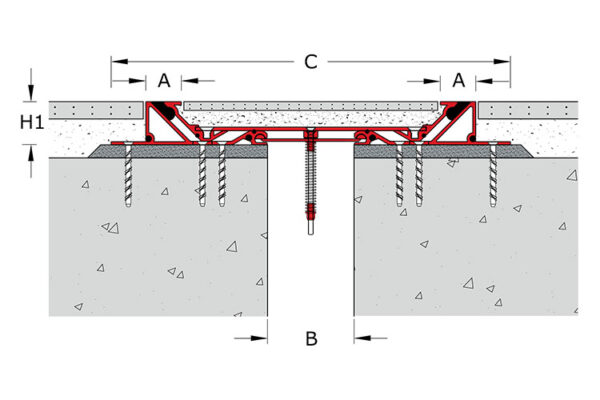

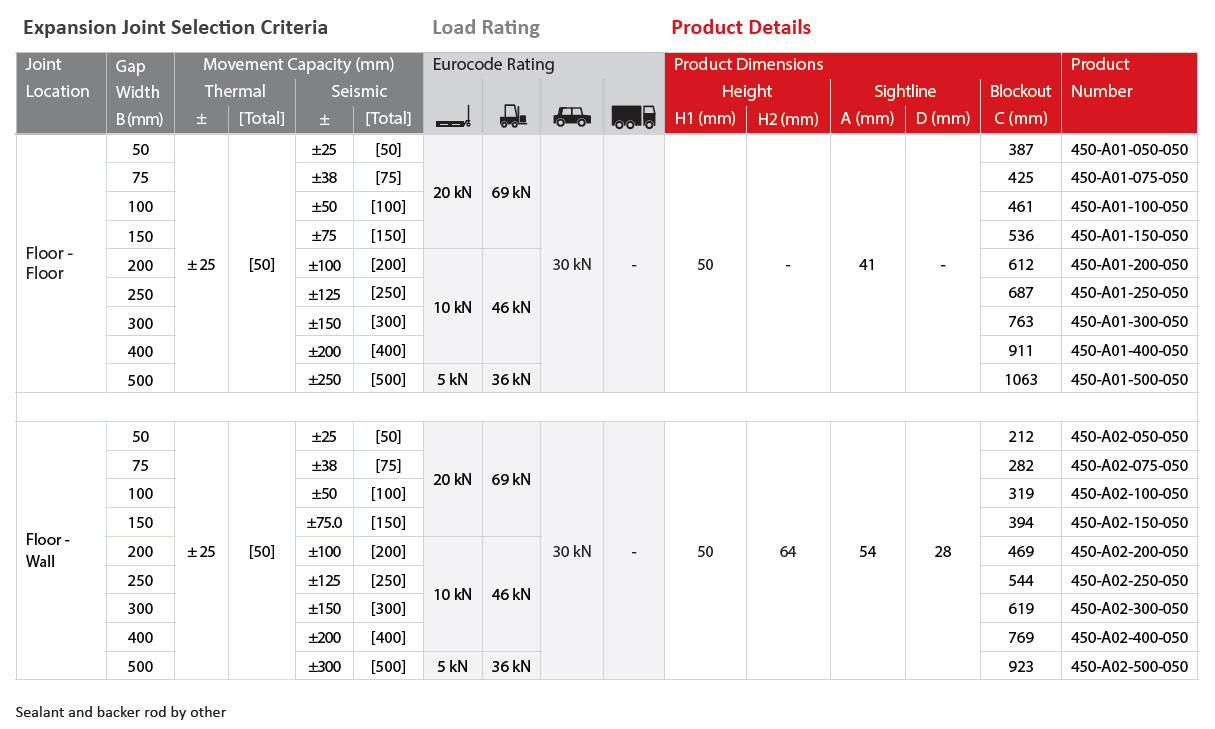

Joint Location	Gap Width B (mm)	Thermal		Seismic					H1 (mm)	H2 (mm)	Sightline A (mm)	Sightline D (mm)	Blockout C (mm)	Product Number
Joint Location	Gap Width B (mm)	±	[Total]	±	[Total]						Sightline A (mm)	Sightline D (mm)	Blockout C (mm)	Product Number

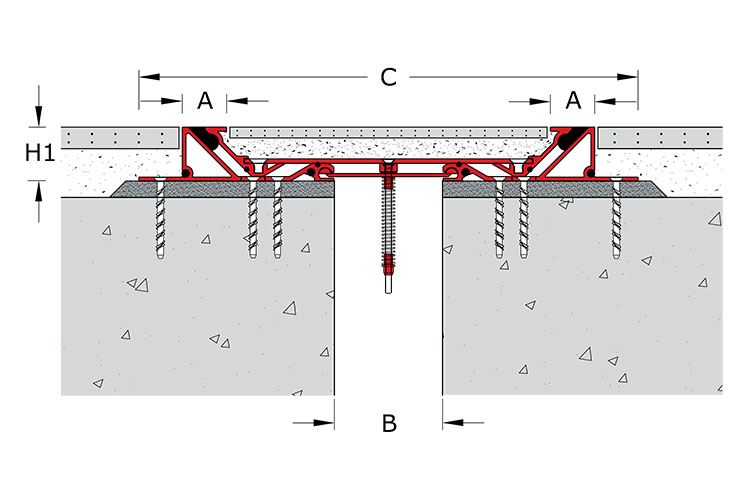

Floor – Floor	050	±25	[50]	±25	[50]	20 kN	69 kN	30 kN	50	–	41	–	387	450-A01-050-050
	075	±38	[75]	±38	[75]								425	450-A01-075-050
	100	±50	[100]	±50	[100]								461	450-A01-100-050
	150	±75	[150]	±75	[150]								536	450-A01-150-050
	200	±100	[200]	±100	[200]	10 kN	46 kN						612	450-A01-200-050
	250	±125	[250]	±125	[250]								687	450-A01-250-050
	300	±150	[300]	±150	[300]								763	450-A01-300-050
	400	±200	[400]	±200	[400]	5 kN	36 kN						911	450-A01-400-050
	500	±250	[500]	±250	[500]	5 kN	36 kN						1063	450-A01-500-050

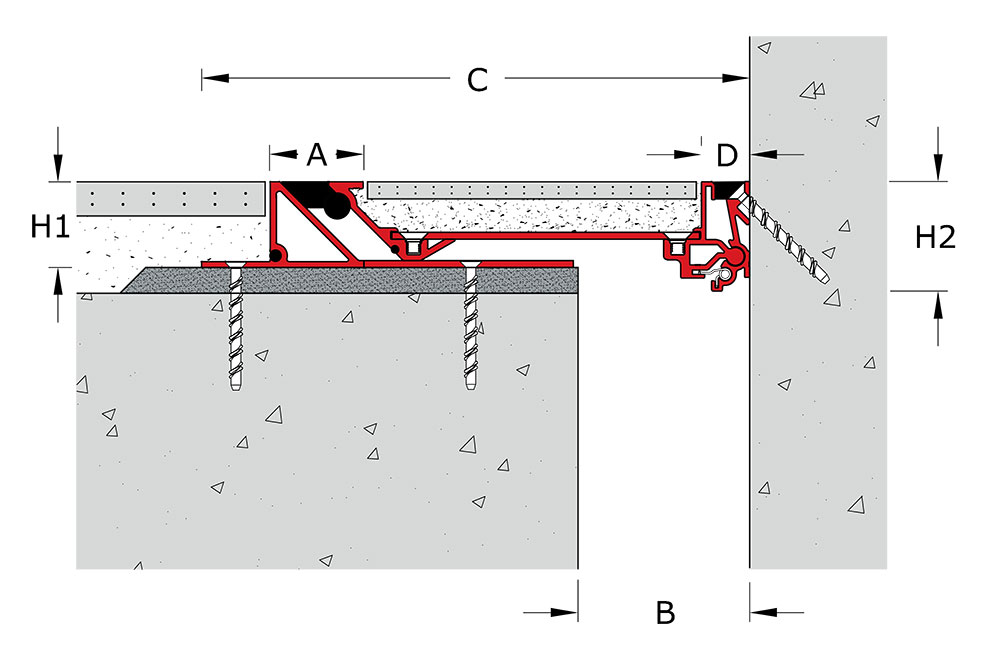

Floor – Wall	050	±25	[50]	±25	[50]	20 kN	69 kN	30 kN	50	64	54	28	212	450-A02-050-050
	075	±38	[75]	±38	[75]								282	450-A02-075-050
	100	±50	[100]	±50	[100]								319	450-A02-100-050
	150	±75	[150]	±75	[150]								394	450-A02-150-050
	200	±100	[200]	±100	[200]	10 kN	46 kN						469	450-A02-200-050
	250	±125	[250]	±125	[250]								544	450-A02-250-050
	300	±150	[300]	±150	[300]								619	450-A02-300-050
	400	±200	[400]	±200	[400]	5 kN	36 kN						769	450-A02-400-050
	500	±250	[500]	±250	[500]	5 kN	36 kN						923	450-A02-500-050

Sealant and backer rod by other

Additional information

Gap width(s)	50, 75, 100, 150, 200, 250, 300, 400, 500 mm
Height(s)	50 mm
Metal type(s)	6063 T5 & T6 Aluminium
Fire barrier	120 minutes
Waterproofing	Waterproofing membrane
Pre-assembly in factory	Contact Vexcolt
