MaxAtec 130 Intersections

Corner

For movement joints with a corner of 90 degrees (or in any angle that is desired).

Intersection

For movement joints that cross each other with full retention of movement facility.

Dog Leg

For movement joints that have to make a corner in due to structural elements such as columns.

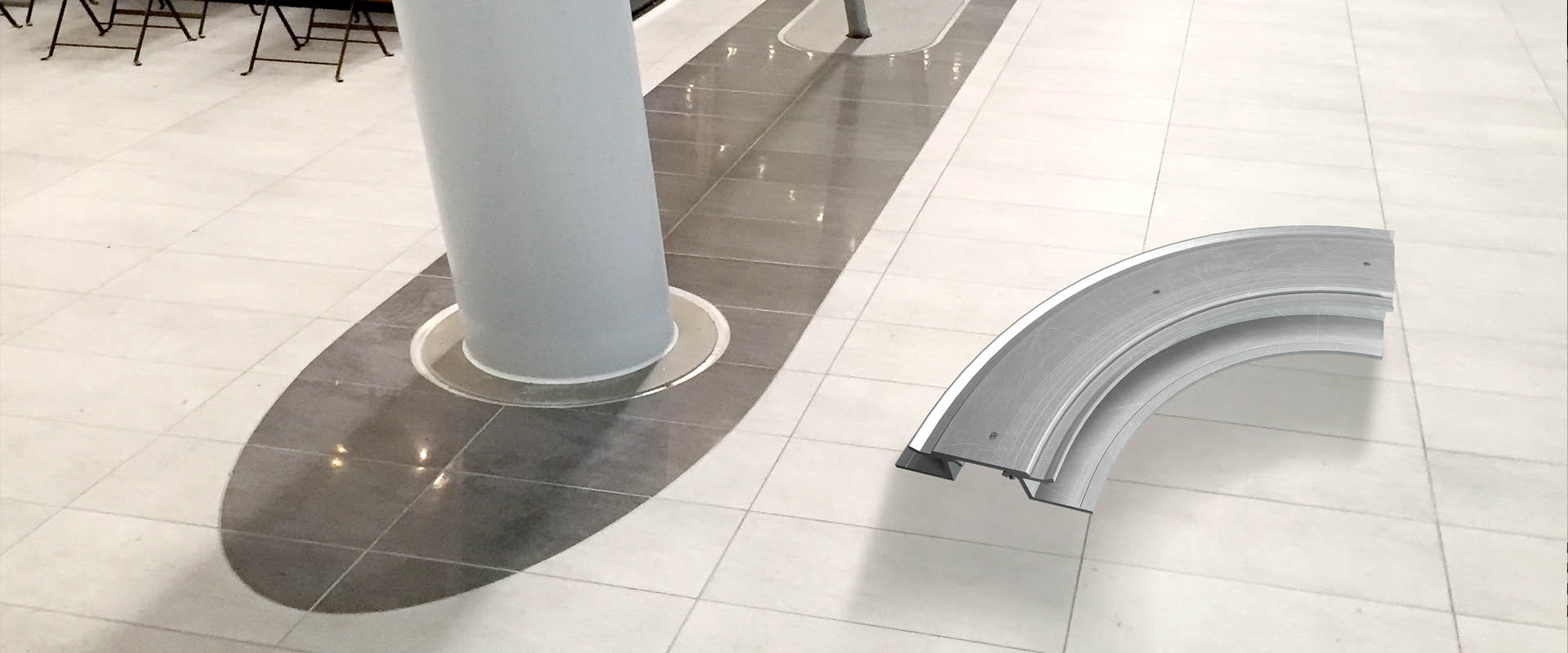

Curved Horizontally

For movement joints with a curvature where the profile is bent horizontally.

Step

For movement joints where a level change is desired with 90 degree angles.

T-piece

For movement joints where two profiles come together in a T-shape.

U-piece

For movement joints where the profile makes a U-shape to accommodate structural elements such as a column.

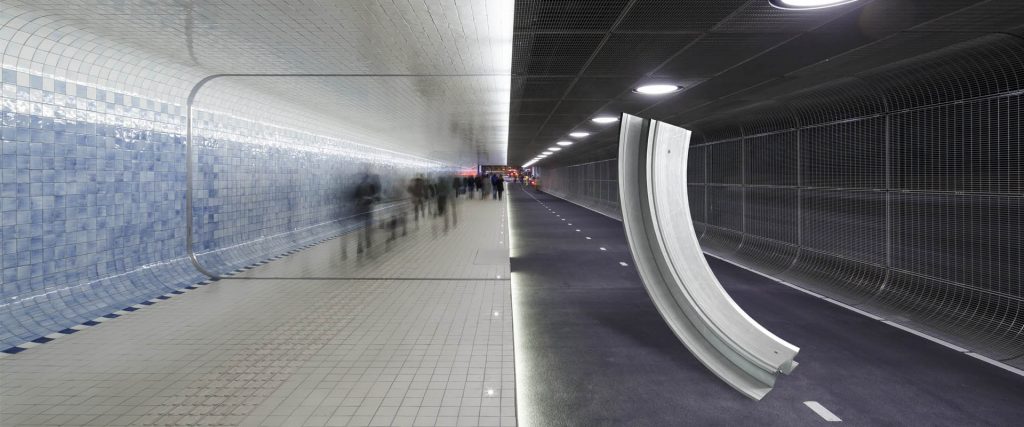

Curved Vertically

A movement joint with a curvature in which the profile is vertically curved.

MegAtec 300 Intersections

Corner

For movement joints with a corner of 90 degrees (or in any angle that is desired).

Dog Leg

For movement joints that have to make a corner in due to structural elements such as columns.

Step

For movement joints where a level change is desired with 90 degree angles.

U-piece

For movement joints where the profile makes a U-shape to accommodate structural elements such as a column.

MegAtec 350 Intersections

Corner

For movement joints with a corner of 90 degrees (or in any angle that is desired).

Intersection

For movement joints that cross each other with full retention of movement facility.

Dog Leg

For movement joints that have to make a corner in due to structural elements such as columns.

Curved Horizontally

For movement joints with a curvature where the profile is bent horizontally.

Step

For movement joints where a level change is desired with 90 degree angles.

T-piece

For movement joints where two profiles come together in a T-shape.

U-piece

For movement joints where the profile makes a U-shape to accommodate structural elements such as a column.

Curved Vertically

A movement joint with a curvature in which the profile is vertically curved.

FlexAtec 1000 Intersections

Hoek

For movement joints with a corner of 90 degrees (or in any angle that is desired).

Intersection

For movement joints that cross each other with full retention of movement facility.

Dog Leg

For movement joints that have to make a corner in due to structural elements such as columns.

Curved Horizontally

For movement joints with horizontal curvatures.

Step

For movement joints where a level change is desired with 90 degree angles.

T-piece

For movement joints where two profiles come together in a T-shape.

U-piece

For movement joints where the profile makes a U-shape to accommodate structural elements such as a column.

Circle

A movement joint that forms a circle.

FlexAtec 1220 Intersections

Corner

For movement joints with a corner of 90 degrees (or in any angle that is desired).

Intersection

For movement joints that cross each other with full retention of movement facility.

Dog Leg

For movement joints that have to make a corner in due to structural elements such as columns.

Curved Horizontally

For movement joints with a curvature where the profile is bent horizontally.

Step

For movement joints where a level change is desired with 90 degree angles.

T-piece

For movement joints where two profiles come together in a T-shape.

U-piece

For movement joints where the profile makes a U-shape to accommodate structural elements such as a column.

Curved Vertically

A movement joint with a curvature in which the profile is vertically curved.

Custom Movement Joint Intersections for Complex Buildings

Every building has corners, columns, and level changes. Therefore, standard straight joint profiles are rarely sufficient on their own. Vexcolt designs and manufactures custom movement joint intersections to handle every directional challenge a structure presents. As a result, your joint system maintains full functionality — even at the most complex transition points.

What Are Movement Joint Intersections?

Movement joint intersections are purpose-made components. Specifically, they allow expansion joint profiles to change direction, cross each other, or navigate around structural elements such as columns. Furthermore, each intersection retains the full movement capacity of the original joint system. Consequently, there is no weak point — even at corners, curves, or level changes.

Contact the specialists at Vexcolt

Available Intersection Types

Each series offers a range of intersection types, including:

  • Corner — for 90-degree angles or any custom angle
  • Intersection — for joints that cross each other with full movement retention
  • Dog Leg — for joints navigating around columns or structural elements
  • T-piece — for two profiles meeting in a T-shape
  • U-piece — for profiles wrapping around a column
  • Step — for level changes with 90-degree angles
  • Curved Horizontally — for profiles bent along a horizontal curve
  • Curved Vertically — for profiles following a vertical curve
  • Circle — for joints forming a closed circular shape (FlexAtec 1000)

Bespoke Solutions as Standard

Over 70% of Vexcolt’s international projects incorporate products tailored to the project. In other words, bespoke movement joint intersections are not an exception — they are part of how we work. In addition, our engineering team supports architects and contractors from design through to installation. Explore our full product range or visit our bespoke service page to learn more. For project-specific advice, contact our specialists directly. For broader technical guidance on structural joints, the Construction Products Association is a trusted industry resource.
