Description
MegAtec 330 A01 is a heavy-duty stainless steel floor expansion joint for 25–50 mm joint widths, smooth transit, high movement capacity and durability.

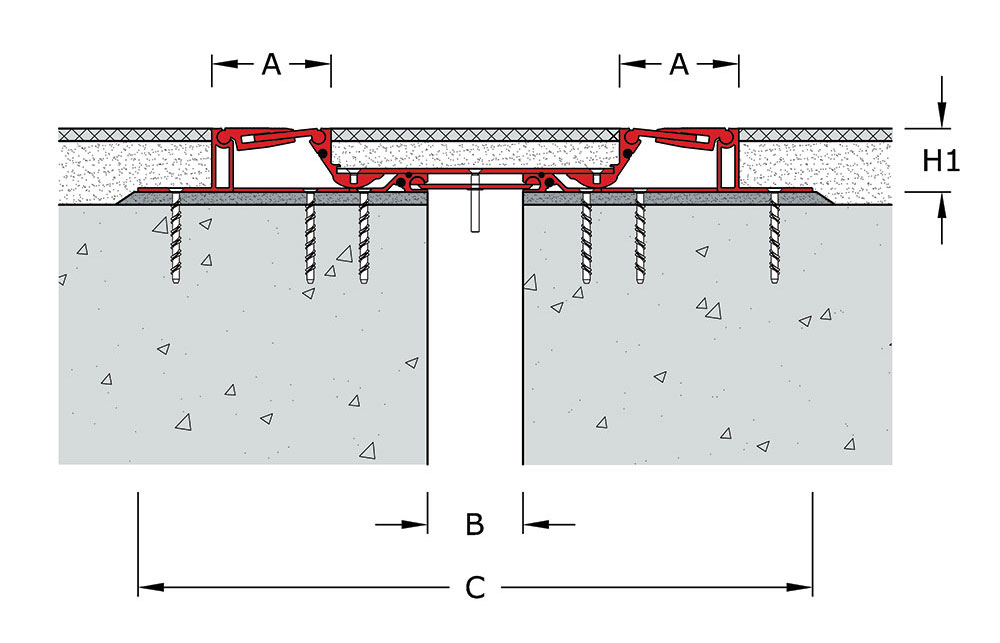

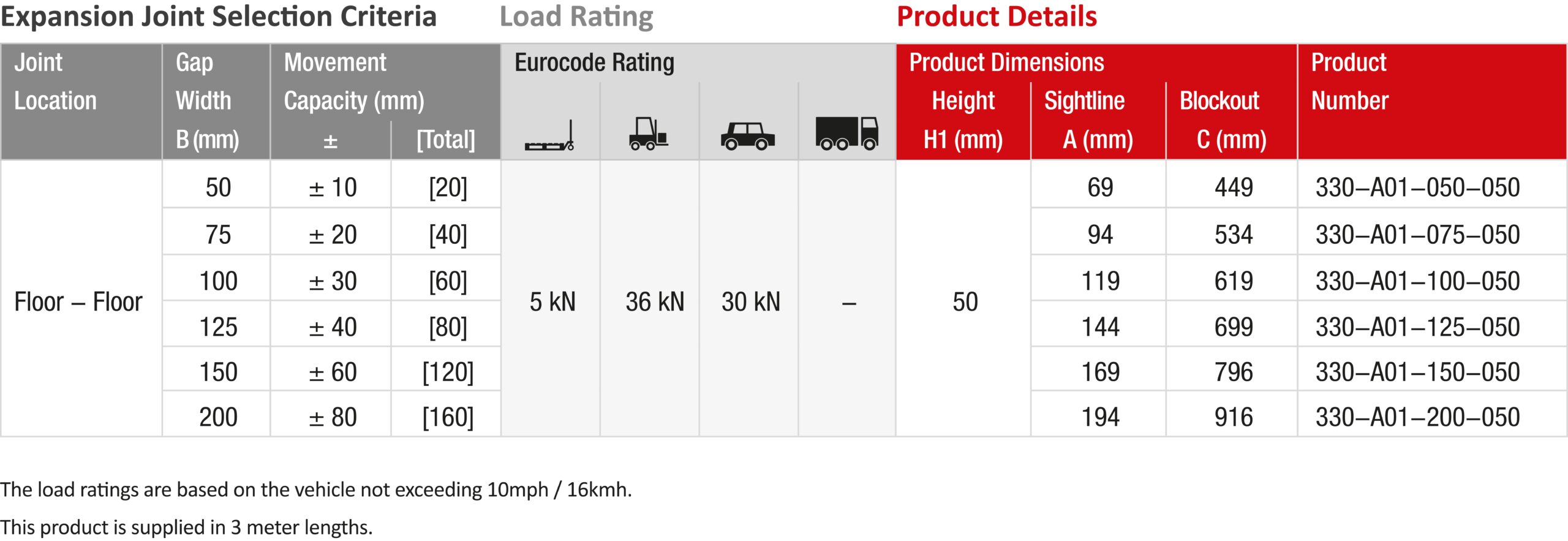

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |

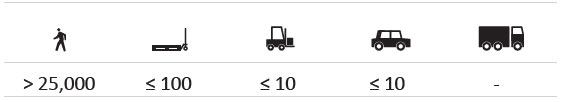

Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||
| Floor – Floor | 050 | ± 10 | [20] | 5 kN | 36 kN | 30 kN | – | 50 | – | 69 | 449 | 330-A01-050-050 |
| 075 | ± 20 | [40] | 94 | 534 | 330-A01-075-050 | |||||||
| 100 | ± 30 | [60] | 119 | 619 | 330-A01-100-050 | |||||||
| 125 | ± 40 | [80] | 144 | 699 | 330-A01-125-050 | |||||||
| 150 | ± 60 | [120] | 169 | 796 | 330-A01-150-050 | |||||||
| 200 | ± 80 | [160] | 194 | 916 | 330-A01-200-050 | |||||||
The load ratings are based on the vehicle not exceeding 10mph / 16kmh.
This product is supplied in 3 meter lengths.
