MegAtec 360-A07 Wall & Ceiling Expansion Joint

  1. Home
  2. MegAtec Wall
  3. MegAtec 360-A07-A09
MegAtec 360-A07-A09
MegAtec 360-A07-A09 - Image 2
MegAtec 360-A07-A09 - Image 3

MegAtec 360-A07-A09

Surface
No visible fixings

Movement
High movement capacity
Seismic movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind
Class III: Seismic

Traffic Frequency per day

Downloads





Animations





Request Price/Sample

Request a Vexcolt sample

Category: Tags: ,

Description

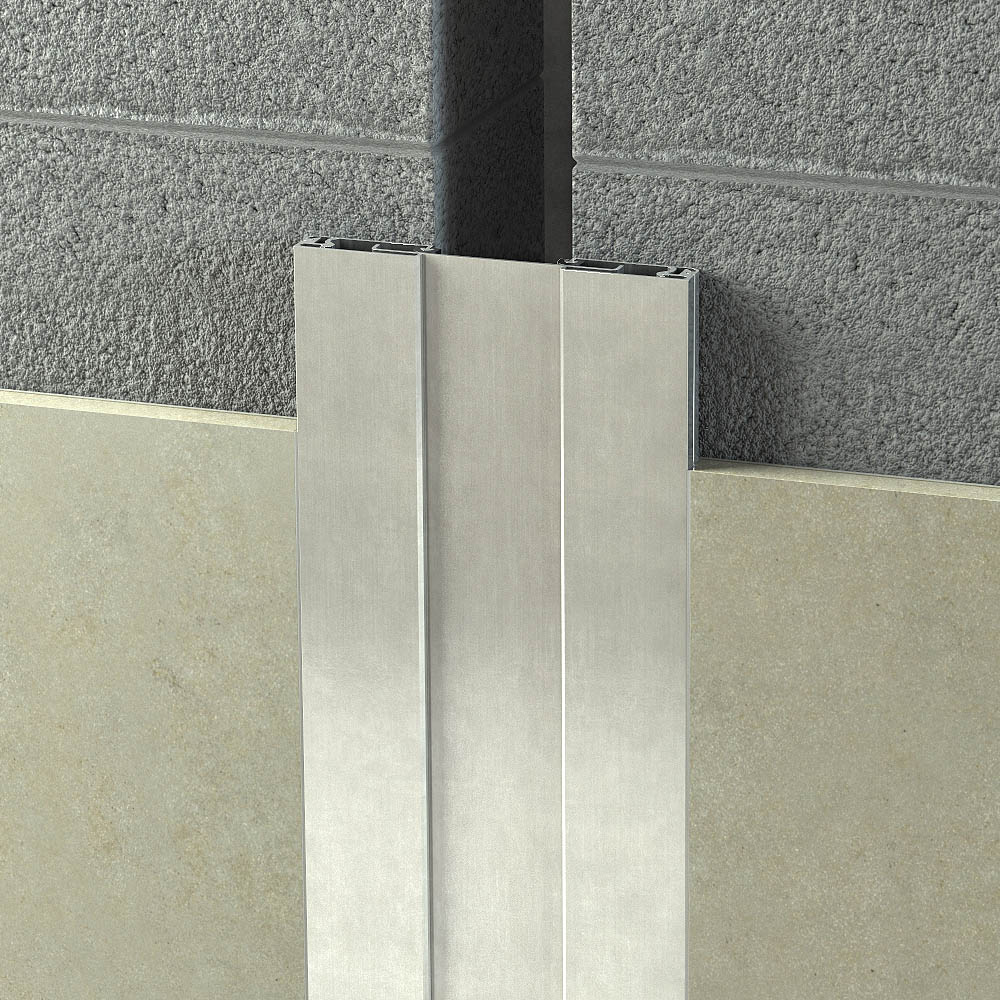

The MegAtec 360-A07 is a wall and ceiling expansion joint with aluminium cover plate, 120-minute fire barrier, and movement accommodation in multiple directions.

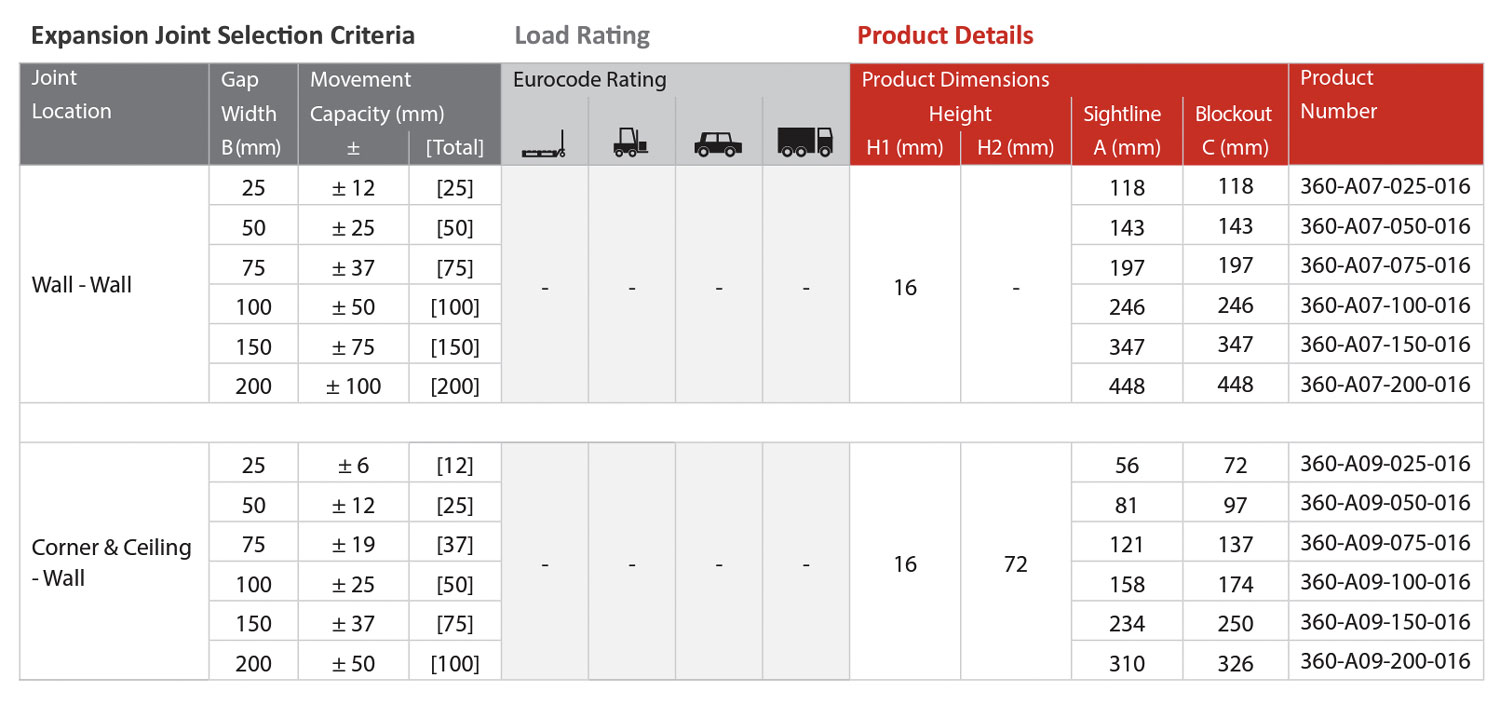

Expansion Joint Selection Criteria Load Rating Product Details
Joint
Location		 Gap
Width
B (mm)		 Movement
Capacity (mm)		 Eurocode Rating Product Dimensions
Height		 Sightline
A (mm)		 Blockout
C (mm)		 Product
Number
± [Total] Pallet truck Reach truck Car Truck H1 (mm) H2 (mm)

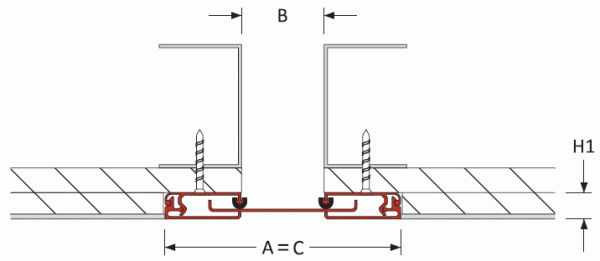

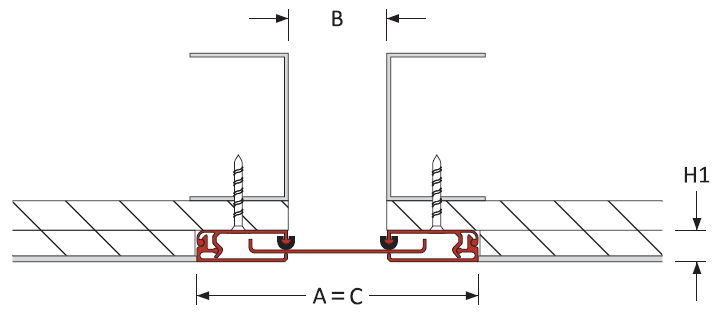

Wall – Wall 025 ± 12 [25] – – – – 16 – 118 118 360-A07-025-016
050 ± 25 [50] 143 143 360-A07-050-016
075 ± 37 [75] 197 197 360-A07-075-016
100 ± 50 [100] 246 246 360-A07-100-016
150 ± 75 [150] 347 347 360-A07-150-016
200 ± 100 [200] 448 448 360-A07-200-016

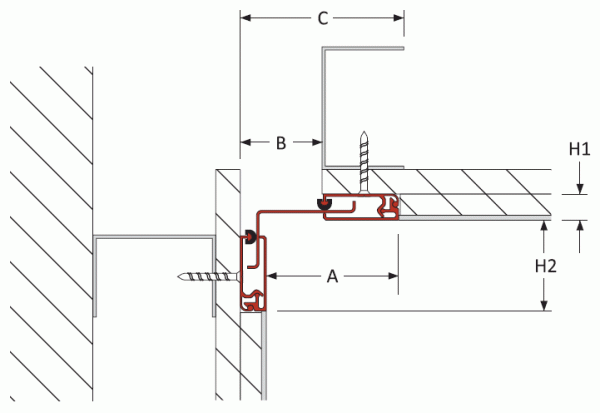

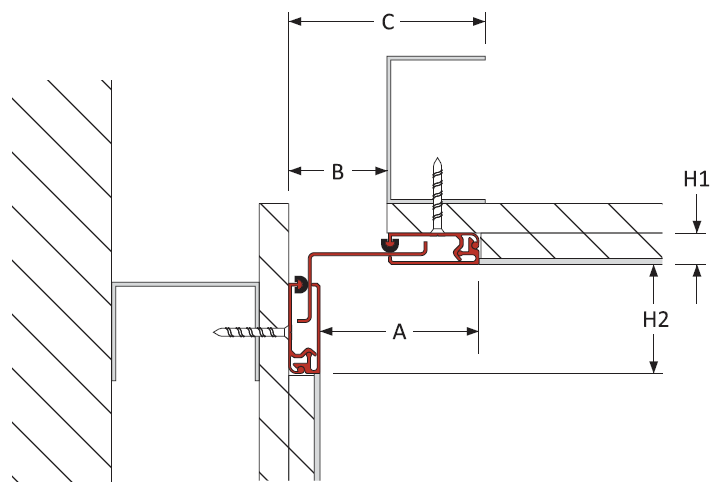

Corner & Ceiling
– Wall		 025 ± 6 [12] – – – – 16 72 56 72 360-A09-025-016
050 ± 12 [25] 81 97 360-A09-050-016
075 ± 19 [37] 121 137 360-A09-075-016
100 ± 25 [50] 158 174 360-A09-100-016
150 ± 37 [75] 234 250 360-A09-150-016
200 ± 50 [100] 310 326 360-A09-200-016

Additional information

Gap width(s)

25, 50, 75, 100, 150, 200 mm
Height(s)

16 mm
Metal type(s)

6063 T5 & T6 Aluminium
Colour(s)

20/25 micron clear satin finish anodised aluminium
Fire barrier

120 minutes
Waterproofing

Moisture barrier
Pre-assembly in factory

Contact Vexcolt

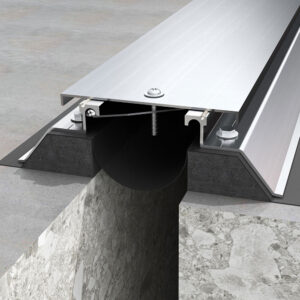

Related products
