Description

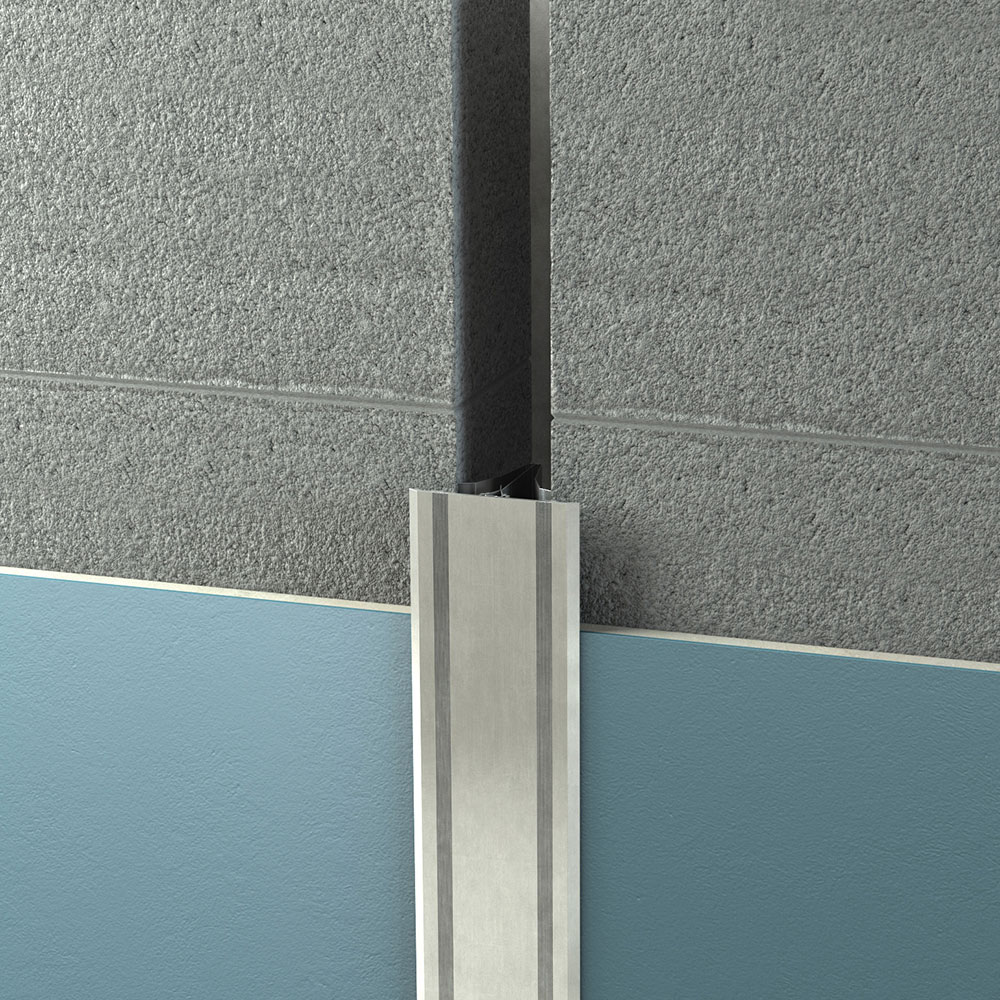

The MegAtec 380-A07-A09 is a wall and ceiling expansion joint with aluminium cover plate, 120-minute fire barrier, and larger movement accommodation.

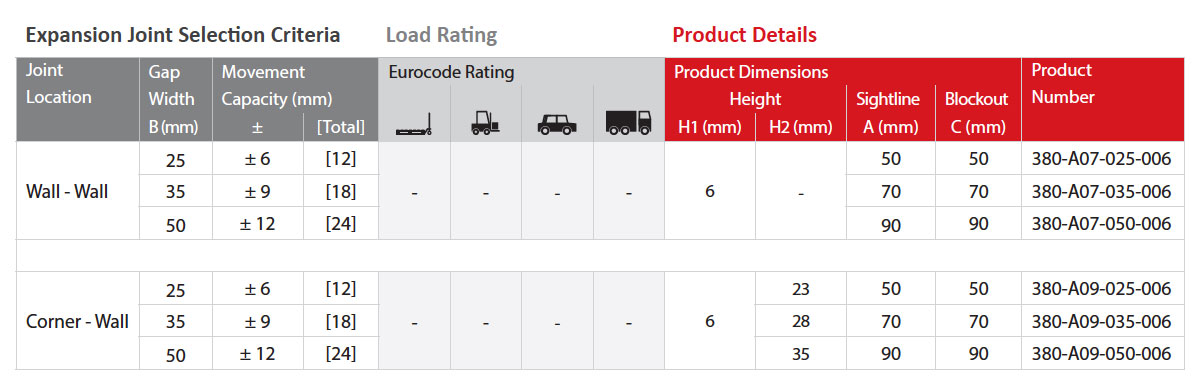

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |

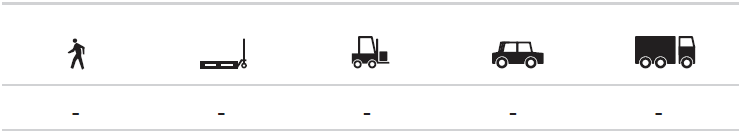

Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

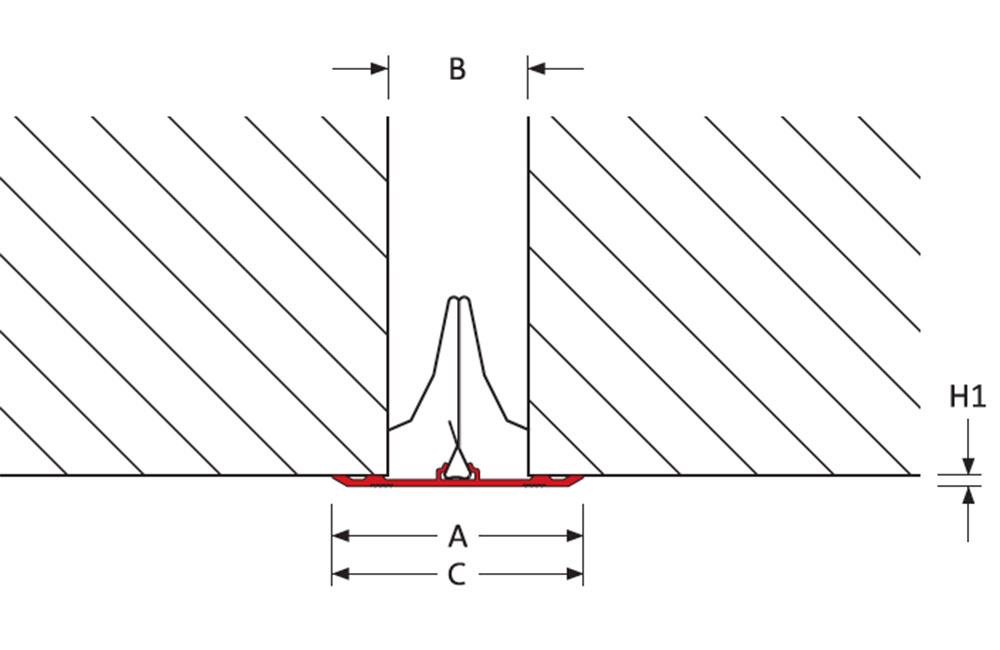

| Wall – Wall | 025 | ± 6 | [12] | – | – | – | – | 6 | – | 50 | 50 | 380-A07-025-006 |
| 035 | ± 9 | [18] | 70 | 70 | 380-A07-035-006 | |||||||
| 050 | ± 12 | [24] | 90 | 90 | 380-A07-050-006 | |||||||

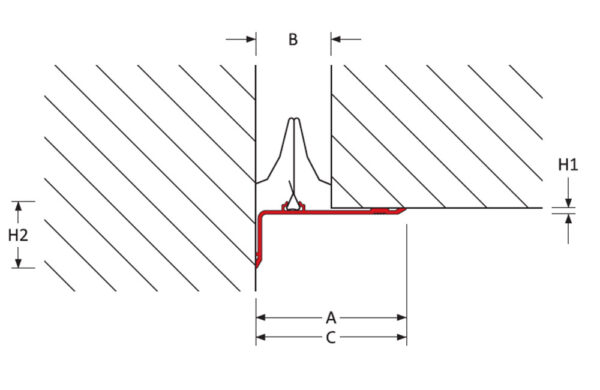

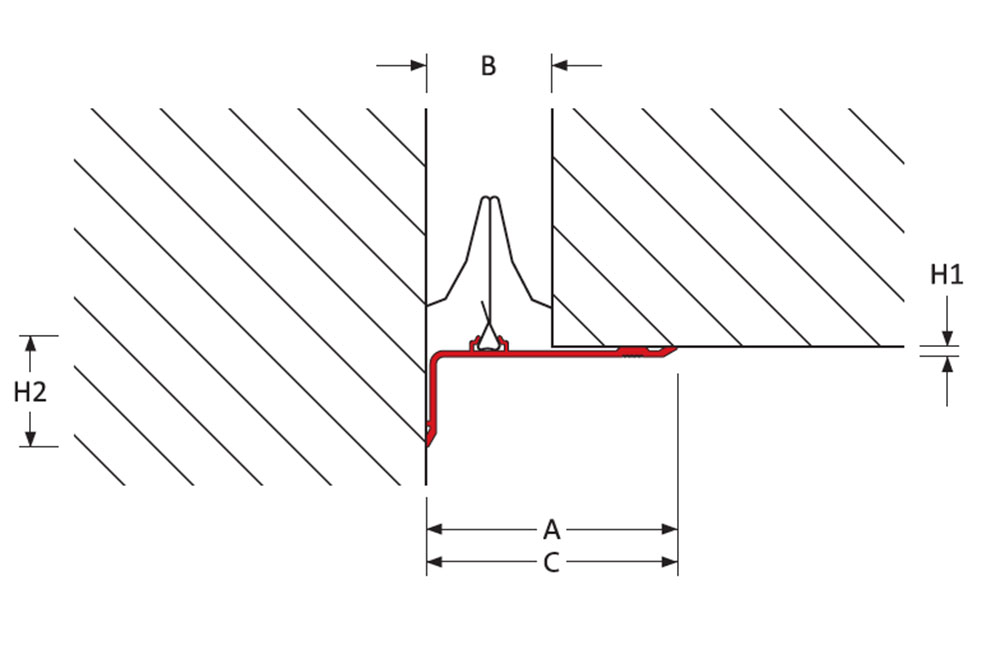

| Corner – Wall | 025 | ± 6 | [12] | – | – | – | – | 6 | 23 | 50 | 50 | 380-A09-025-006 |
| 035 | ± 9 | [18] | 28 | 70 | 70 | 380-A09-035-006 | ||||||
| 050 | ± 12 | [24] | 35 | 90 | 90 | 380-A09-050-006 | ||||||
