Description

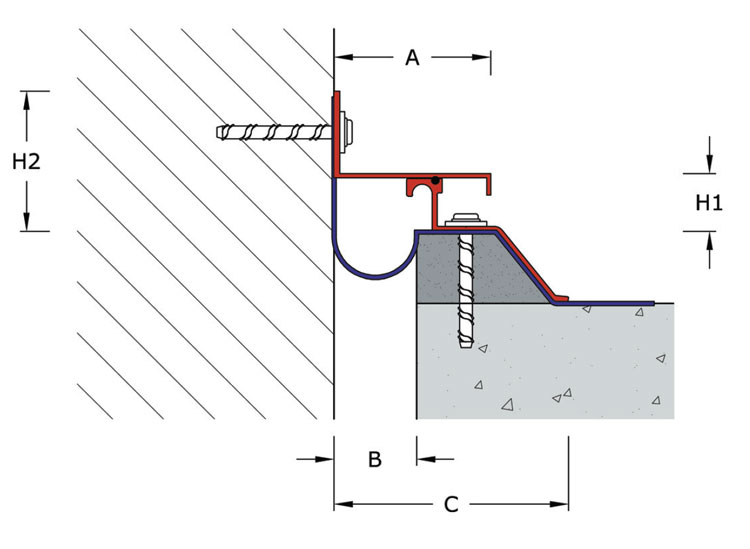

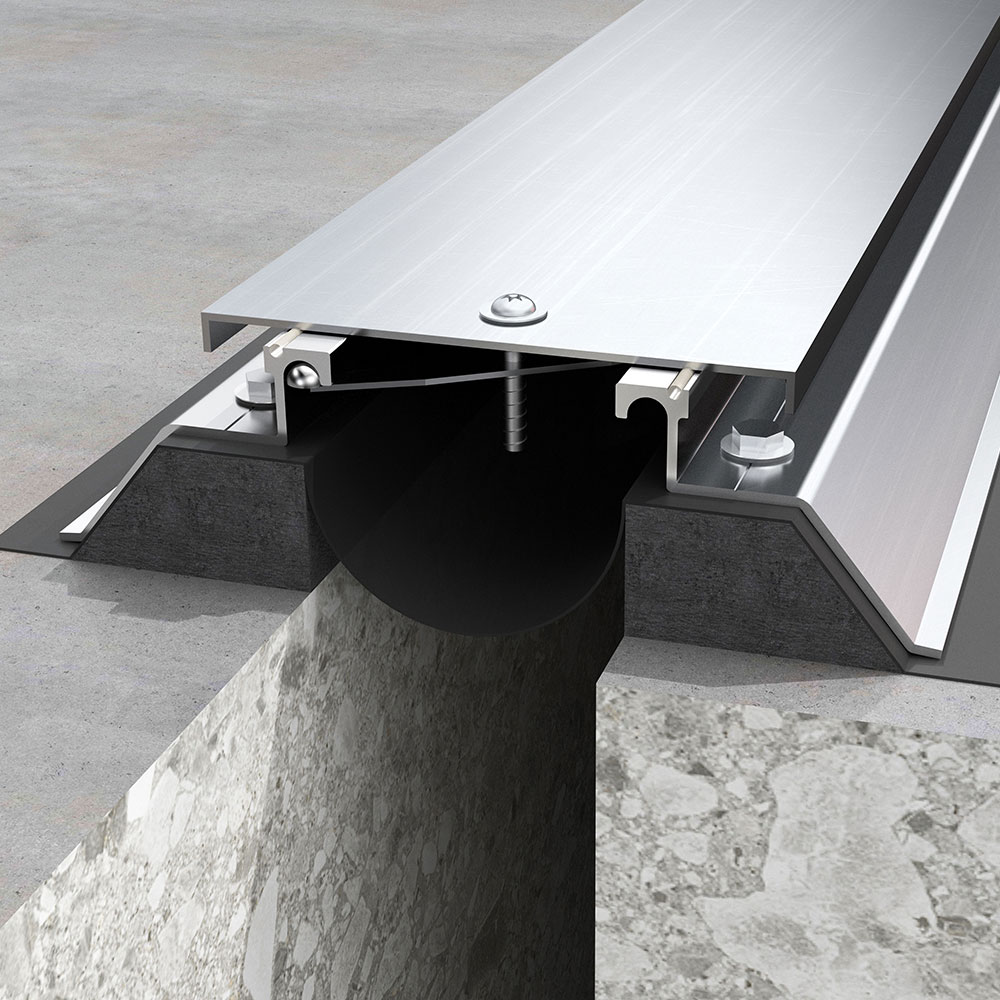

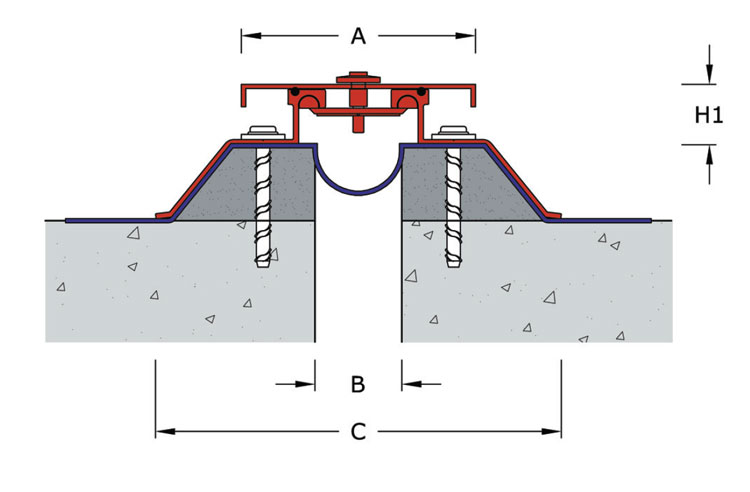

MegAtec 610 A01 A02 is an external aluminium expansion joint for roof-to-roof and roof-to-wall applications with high seismic capacity.

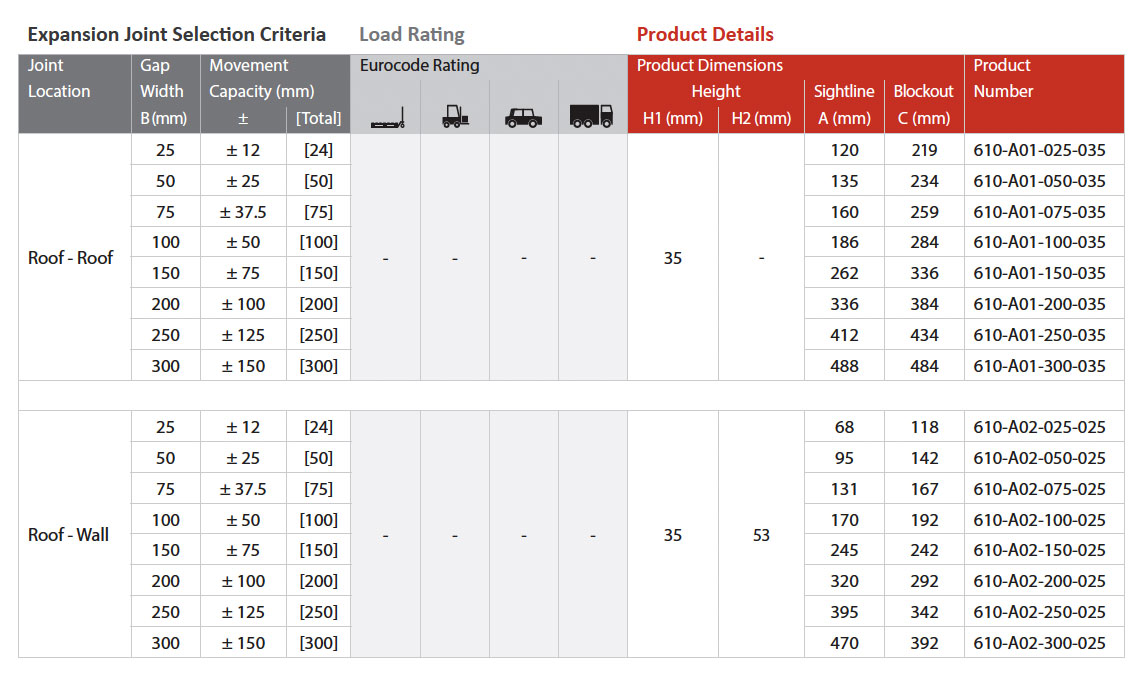

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||
| Roof – Roof | 025 | ± 12 | [24] | – | – | – | – | 35 | – | 120 | 219 | 610-A01-025-035 |
| 050 | ± 25 | [50] | 135 | 234 | 610-A01-050-035 | |||||||
| 075 | ± 37.5 | [75] | 160 | 259 | 610-A01-075-035 | |||||||
| 100 | ± 50 | [100] | 186 | 284 | 610-A01-100-035 | |||||||
| 150 | ± 75 | [150] | 262 | 336 | 610-A01-150-035 | |||||||
| 200 | ± 100 | [200] | 336 | 384 | 610-A01-200-035 | |||||||
| 250 | ± 125 | [250] | 412 | 434 | 610-A01-250-035 | |||||||
| 300 | ± 150 | [300] | 488 | 484 | 610-A01-300-035 | |||||||
| Roof – Wall | 025 | ± 12 | [24] | – | – | – | – | 35 | 53 | 68 | 118 | 610-A02-025-025 |
| 050 | ± 25 | [50] | 95 | 142 | 610-A02-050-025 | |||||||
| 075 | ± 37.5 | [75] | 131 | 167 | 610-A02-075-025 | |||||||
| 100 | ± 50 | [100] | 170 | 192 | 610-A02-100-025 | |||||||
| 150 | ± 75 | [150] | 245 | 242 | 610-A02-150-025 | |||||||
| 200 | ± 100 | [200] | 320 | 292 | 610-A02-200-025 | |||||||
| 250 | ± 125 | [250] | 395 | 342 | 610-A02-250-025 | |||||||
| 300 | ± 150 | [300] | 470 | 392 | 610-A02-300-025 | |||||||
