FlexAtec 1000-A01
FlexAtec 1000-A01 - Image 2
FlexAtec 1000-A01 - Image 3

FlexAtec 1000-A01

Surface
Smooth surface
Flush with finishes
Waterproof

Movement
High movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind

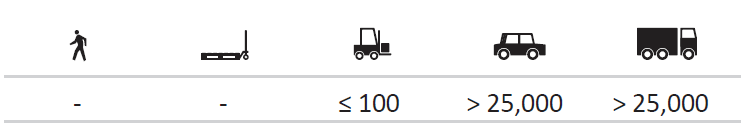

Traffic Frequency per day

Downloads





Animations

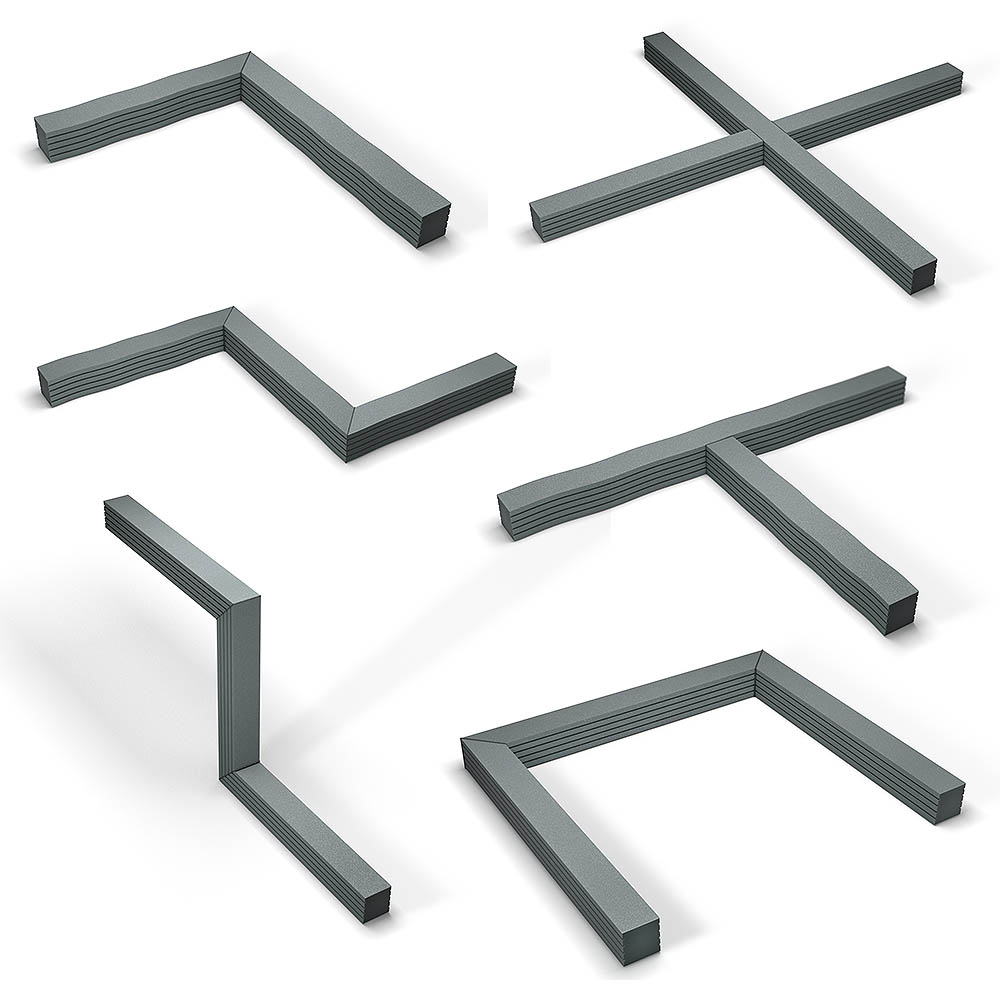

Specials
Custom-made solutions are available for this product.

Request Price/Sample

Request a Vexcolt sample

Category: Tags: , ,

Description

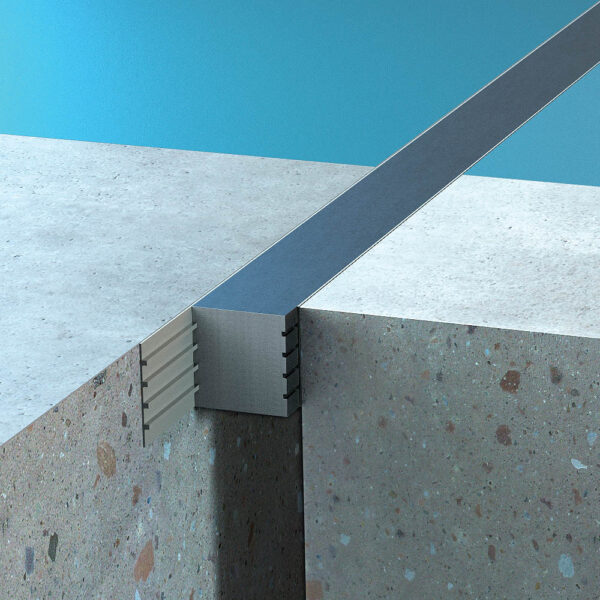

The FlexAtec 1000-A01 is a flush, smooth-surface waterproof expansion joint with high movement capacity and 120-minute fire resistance with a fire barier.

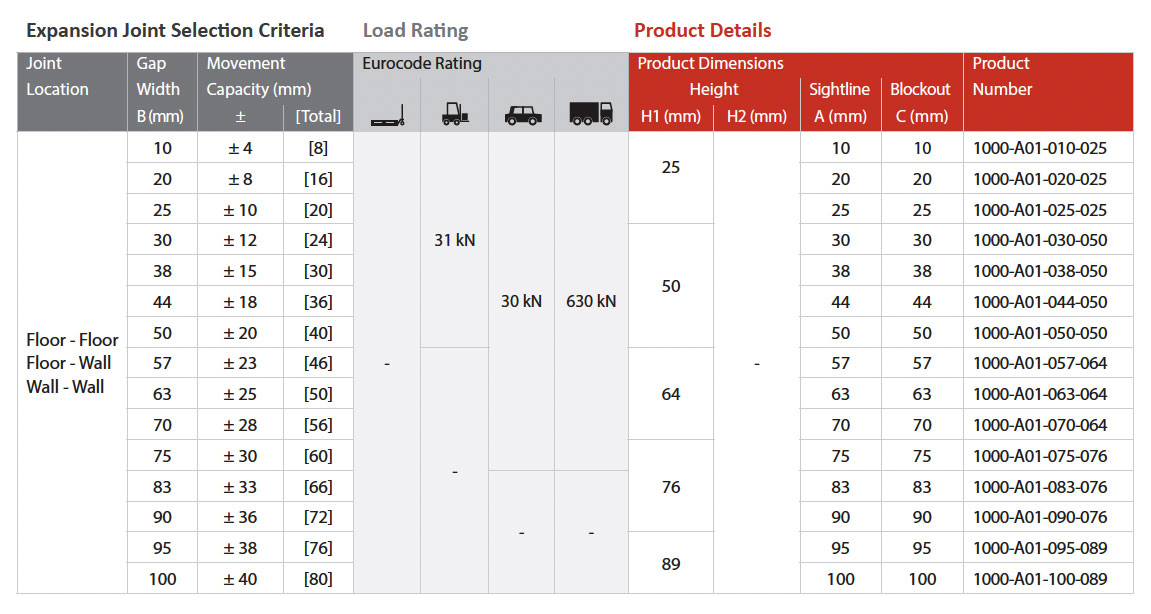

Expansion Joint Selection Criteria Load Rating Product Details

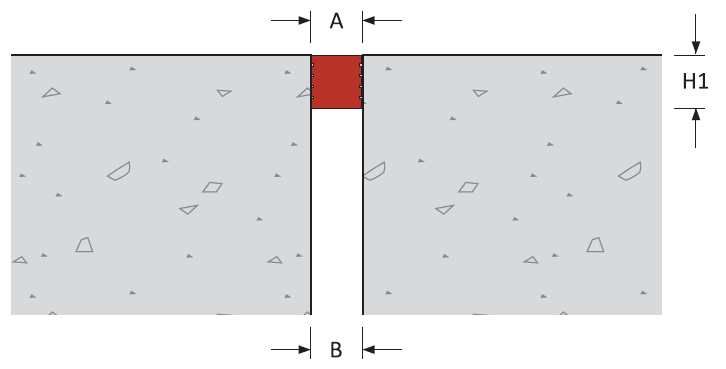

Joint
Location		 Gap
Width
B (mm)		 Movement
Capacity (mm)		 Eurocode Rating Product Dimensions
Height		 Sightline
A (mm)		 Blockout
C (mm)		 Product
Number
± [Total] Pallet truck Reach truck Car Truck H1 (mm) H2 (mm)
Floor – Floor
Floor – Wall		 10 ± 4 [8] – 31 kN 30 kN 630 kN 25 – 10 10 1000-A01/2-010-025
20 ± 8 [16] 20 20 1000-A01/2-020-025
25 ± 10 [20] 25 25 1000-A01/2-025-025
30 ± 12 [24] 50 30 30 1000-A01/2-030-050
38 ± 15 [30] 38 38 1000-A01/2-038-050
44 ± 18 [36] 44 44 1000-A01/2-044-050
50 ± 20 [40] 50 50 1000-A01/2-050-050
57 ± 23 [46] – 64 57 57 1000-A01/2-057-064
63 ± 25 [50] 63 63 1000-A01/2-063-064
70 ± 28 [56] – – 70 70 1000-A01/2-070-064
75 ± 30 [60] 76 75 75 1000-A01/2-075-076
83 ± 33 [66] 83 83 1000-A01/2-083-076
90 ± 36 [72] 90 90 1000-A01/2-090-076
95 ± 38 [76] 89 95 95 1000-A01/2-095-089
100 ± 40 [80] 100 100 1000-A01/2-100-089

Additional information

Gap width(s)

10, 20, 25, 30, 38, 44, 50, 57, 63, 70, 75, 83, 90, 95, 100 mm
Height(s)

25, 50, 64, 76, 80, 89 mm
Colour(s)

Concrete Grey, Black, White
UV (Ultraviolet) Protection

Black
UV Sensitive

Concrete Grey, White
Fire barrier

120 minutes
Pre-assembly in factory
