Description

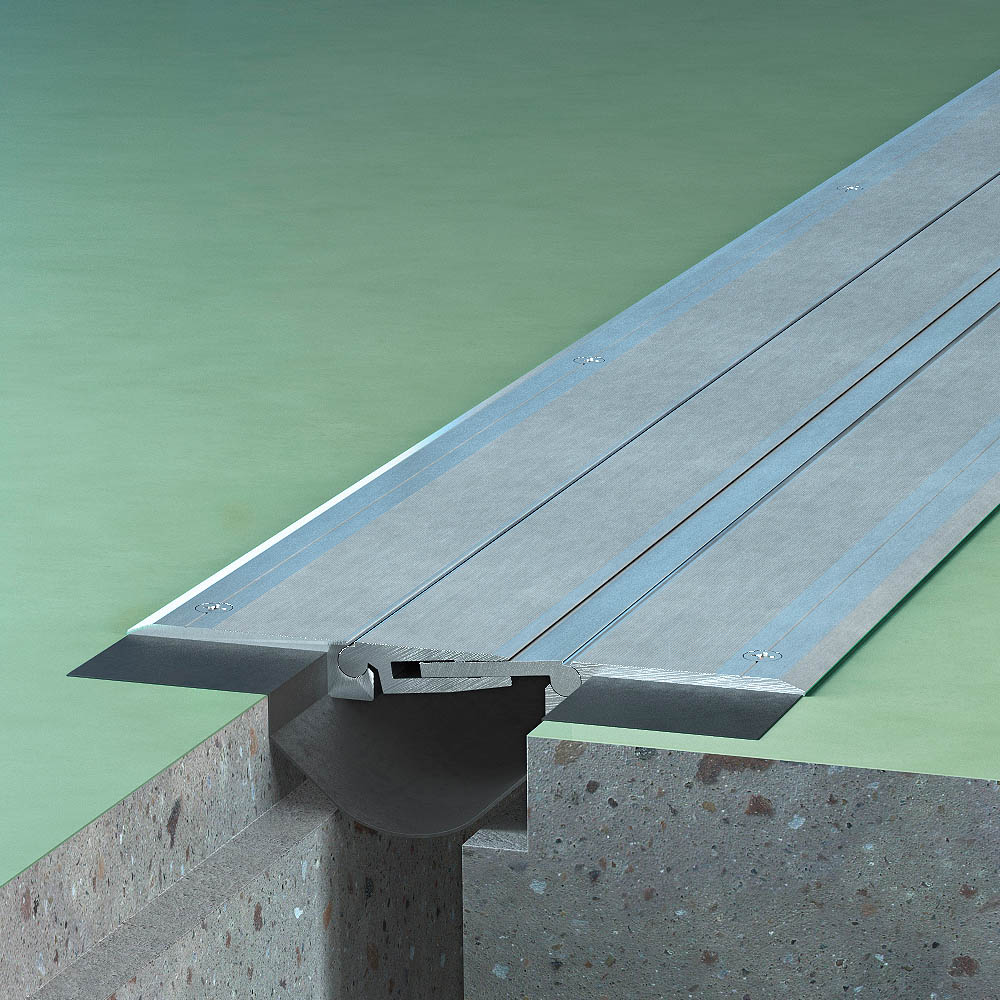

MegAtec 320 A01 A02 is a heavy-duty aluminium floor expansion joint for 25–150 mm joint widths, offering smooth transit and slip-resistant performance.

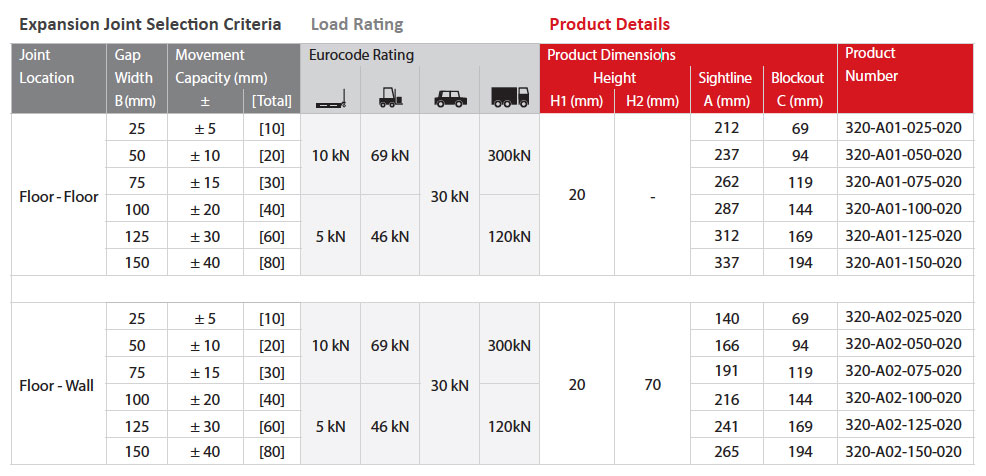

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

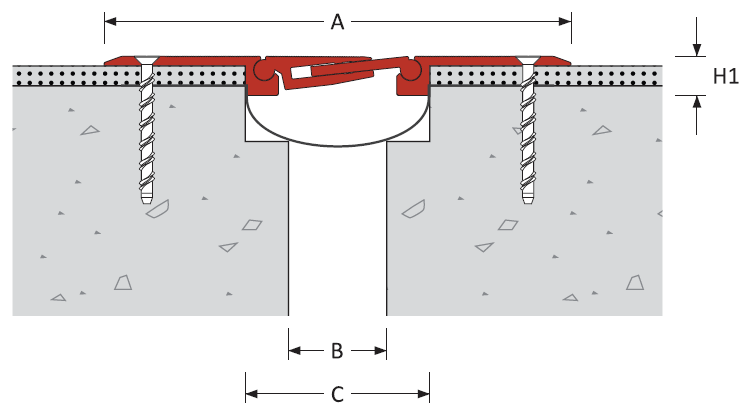

| Floor – Floor | 025 | ± 5 | [10] | 10 kN | 69 kN | 30 kN | 300kN | 20 | – | 212 | 69 | 320-A01-025-020 |
| 050 | ± 10 | [20] | 237 | 94 | 320-A01-050-020 | |||||||
| 075 | ± 15 | [30] | 262 | 119 | 320-A01-075-020 | |||||||
| 100 | ± 20 | [40] | 287 | 144 | 320-A01-100-020 | |||||||
| 125 | ± 30 | [60] | 5 kN | 46 kN | 120kN | 312 | 169 | 320-A01-125-020 | ||||
| 150 | ± 40 | [80] | 337 | 194 | 320-A01-150-020 | |||||||

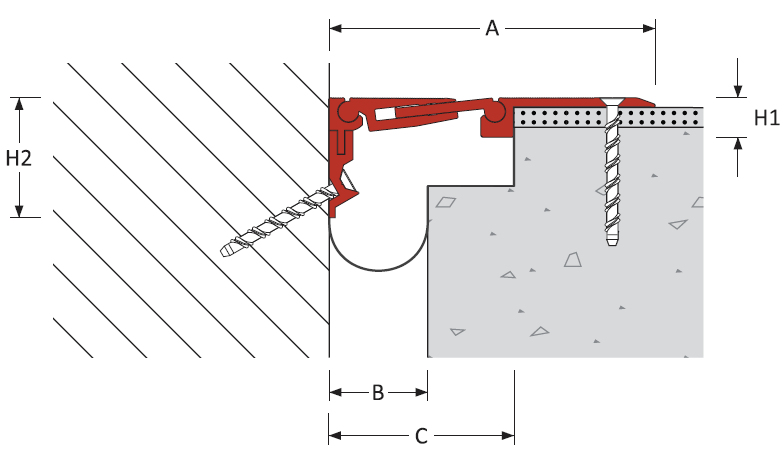

| Floor – Wall | 025 | ± 5 | [10] | 10 kN | 69 kN | 30 kN | 300kN | 20 | 70 | 140 | 69 | 320-A02-025-020 |
| 050 | ± 10 | [20] | 166 | 94 | 320-A02-050-020 | |||||||
| 075 | ± 15 | [30] | 191 | 119 | 320-A02-075-020 | |||||||
| 100 | ± 20 | [40] | 216 | 144 | 320-A02-100-020 | |||||||
| 125 | ± 30 | [60] | 5 kN | 46 kN | 120kN | 241 | 169 | 320-A02-125-020 | ||||
| 150 | ± 40 | [80] | 265 | 194 | 320-A02-150-020 | |||||||
