Description
The MegAtec 361-A07 is a floor-to-wall transition expansion joint with aluminium cover plate, 120-minute fire barrier, and multi-directional movement capacity.

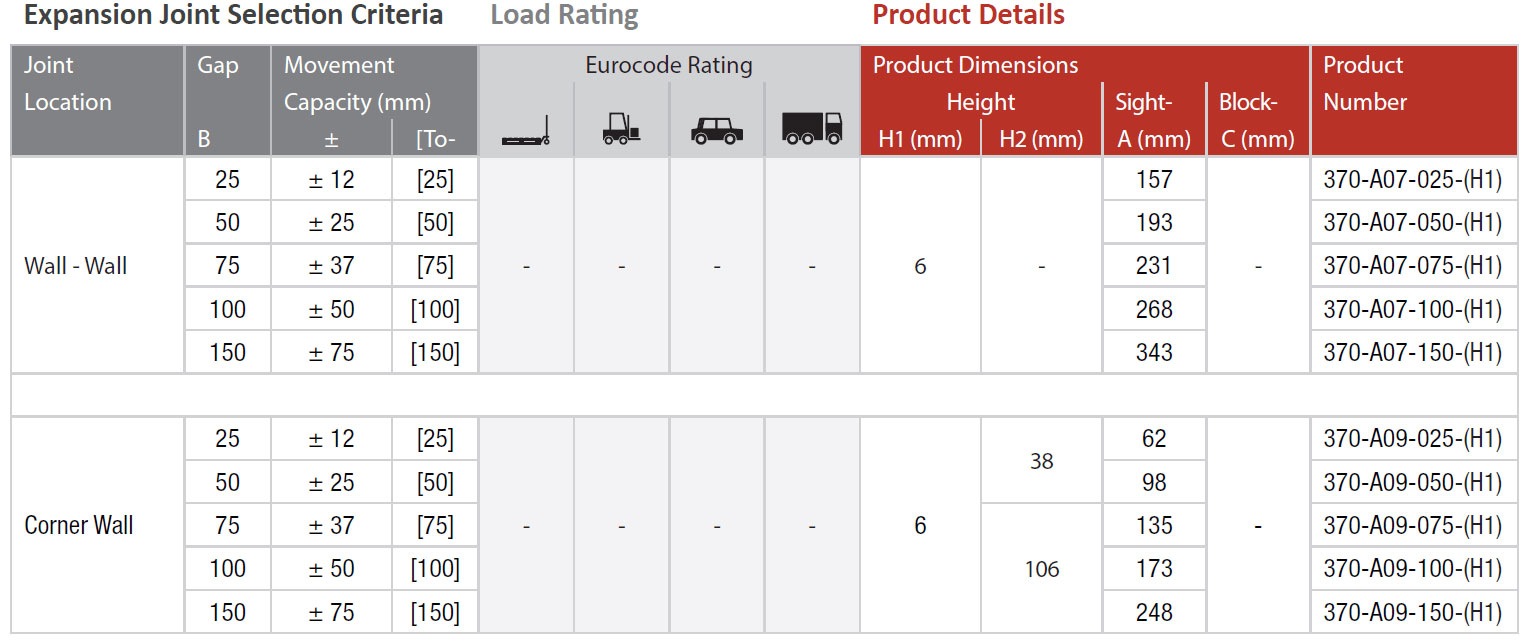

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

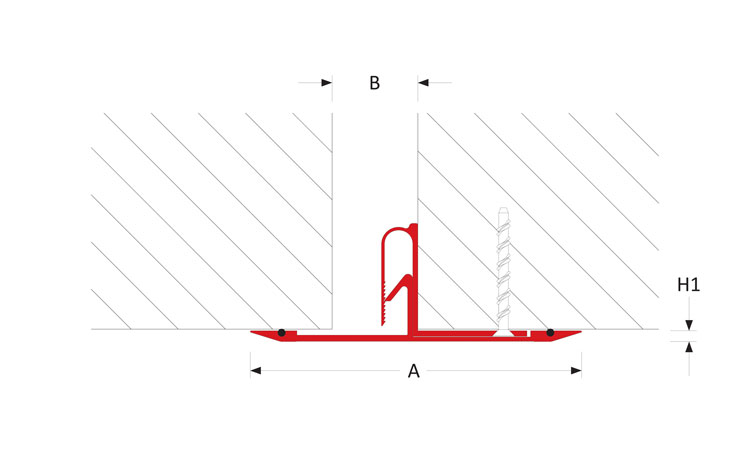

| Wall – Wall | 025 | ± 12 | [25] | – | – | – | – | 6 | – | 157 | – | 370-A07-025-(H1) |
| 050 | ± 25 | [50] | 193 | – | 370-A07-050-(H1) | |||||||
| 075 | ± 37 | [75] | 231 | – | 370-A07-075-(H1) | |||||||
| 100 | ± 50 | [100] | 268 | – | 370-A07-100-(H1) | |||||||
| 150 | ± 75 | [150] | 343 | – | 370-A07-150-(H1) | |||||||

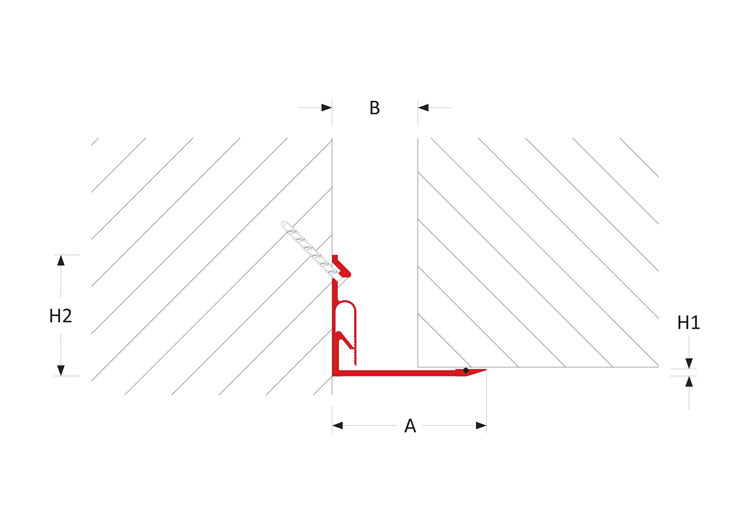

| Corner Wall | 025 | ± 12 | [25] | – | – | – | – | 6 | 38 | 62 | – | 370-A09-025-(H1) |
| 050 | ± 25 | [50] | 98 | – | 370-A09-050-(H1) | |||||||
| 075 | ± 37 | [75] | 106 | 135 | – | 370-A09-075-(H1) | ||||||
| 100 | ± 50 | [100] | 173 | – | 370-A09-100-(H1) | |||||||
| 150 | ± 75 | [150] | 248 | – | 370-A09-150-(H1) | |||||||
