Description

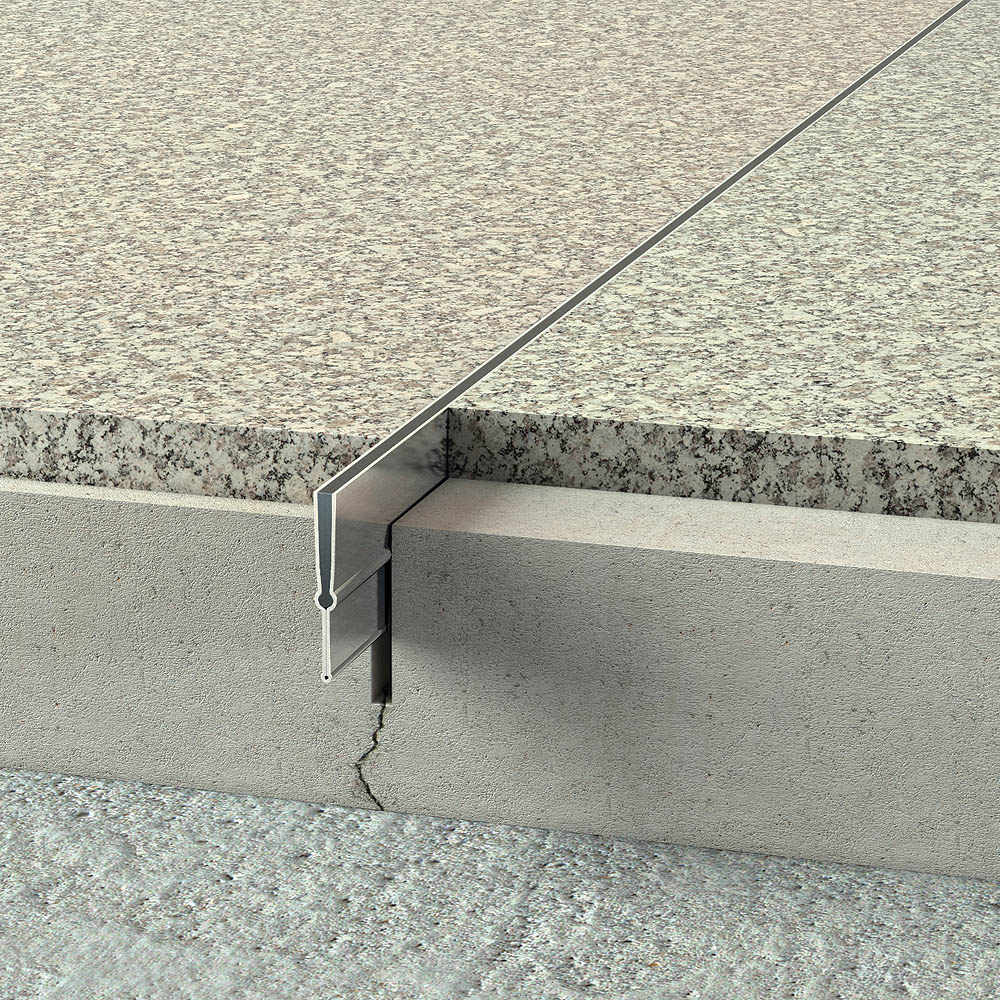

MicrAtec is a unique movement joint for all floors with hard finishes, from industrial floors to living rooms. The profile replaces the well-known sealant joint and other smaller profiles in floors.

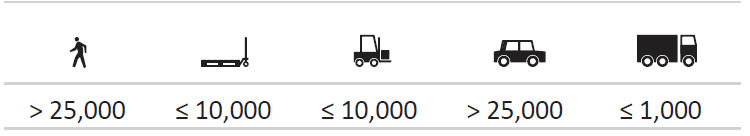

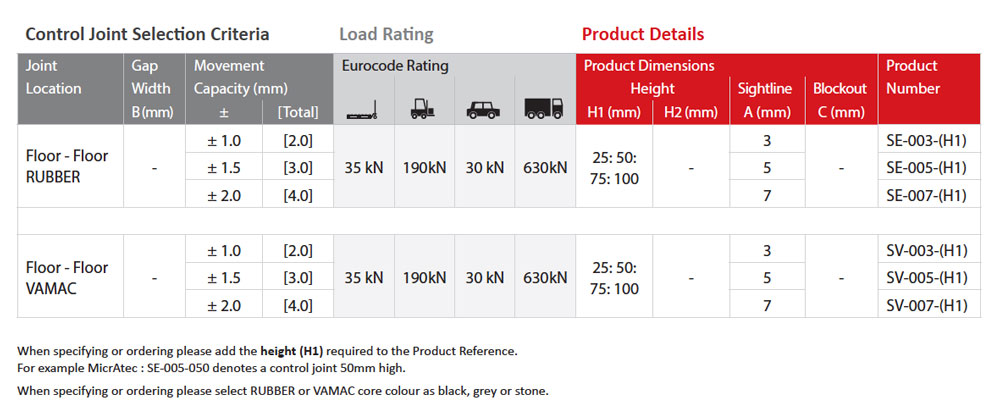

| Control Joint Selection Criteria | Load Rating | Product Details | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) ± [Total] |
 |
 |
 |
 |

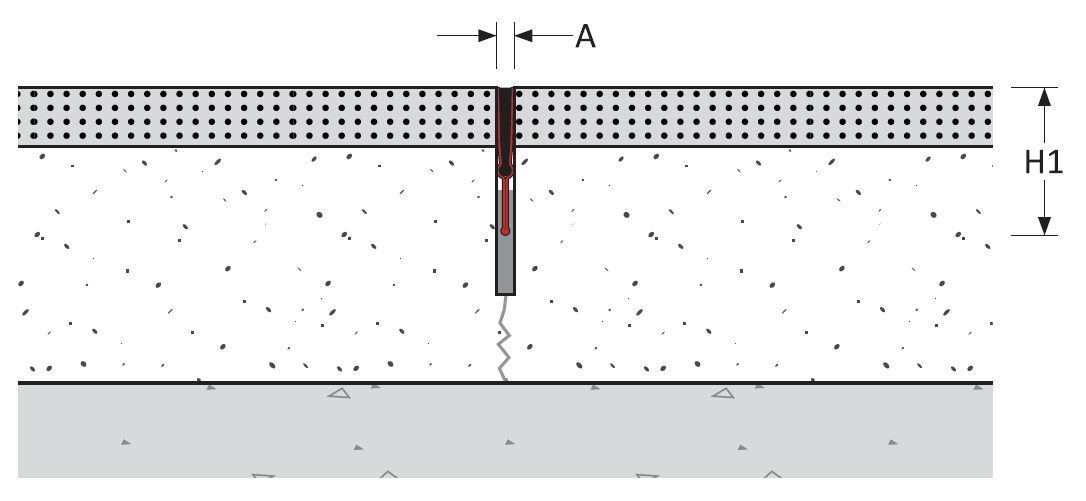

Product Dimensions Height H1 (mm) |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
| Floor – Floor RUBBER |
– | ± 1.0 [2.0] | 35 kN | 190kN | 30 kN | 630kN | 25: 50: 75: 100 |
3 | – | SE-003-(H1) |
| ± 1.5 [3.0] | 5 | SE-005-(H1) | ||||||||
| ± 2.0 [4.0] | 7 | SE-007-(H1) | ||||||||
| Floor – Floor VAMAC |
– | ± 1.0 [2.0] | 35 kN | 190kN | 30 kN | 630kN | 25: 50: 75: 100 |
3 | – | SV-003-(H1) |
| ± 1.5 [3.0] | 5 | SV-005-(H1) | ||||||||
| ± 2.0 [4.0] | 7 | SV-007-(H1) | ||||||||

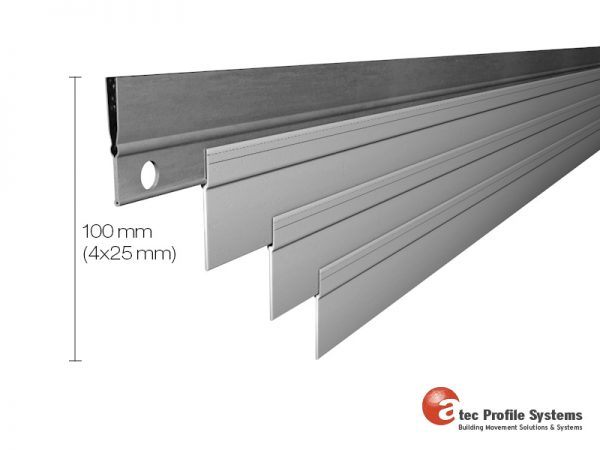

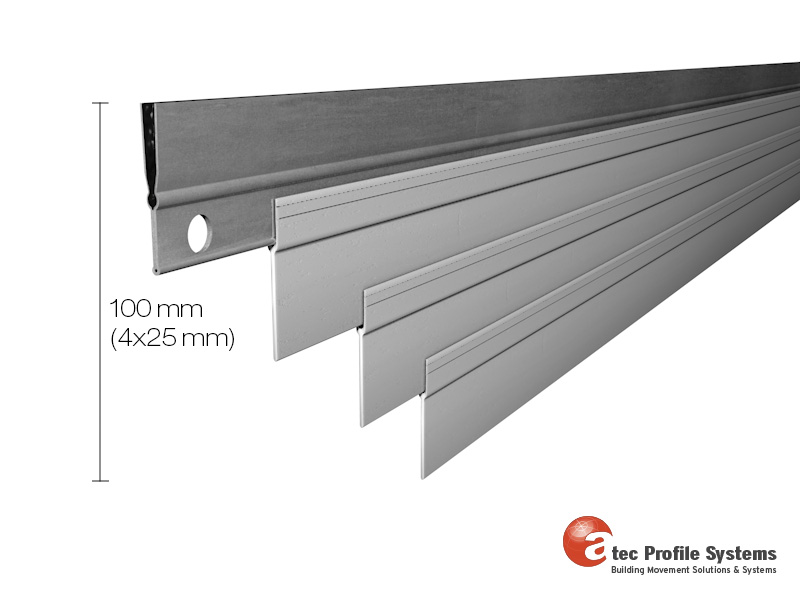

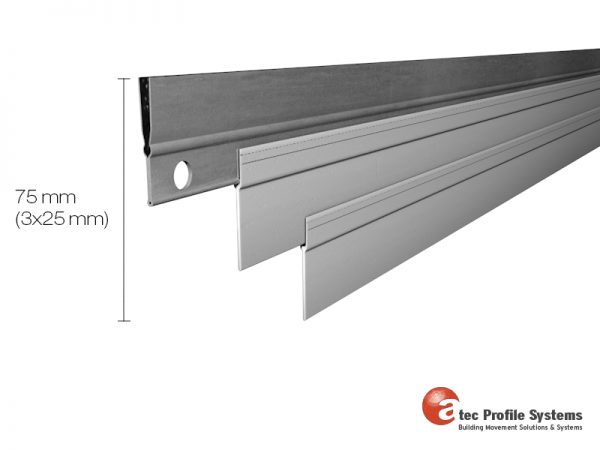

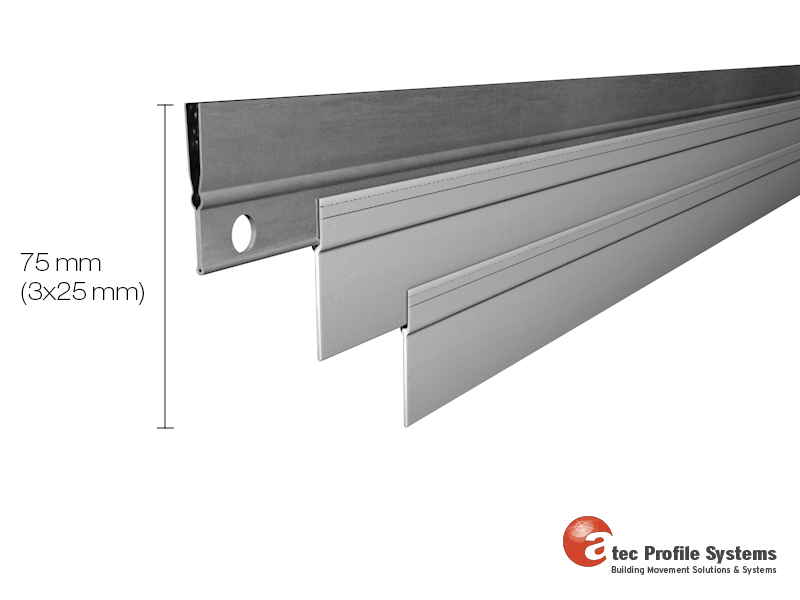

When specifying or ordering please add the height (H1) required to the Product Reference.

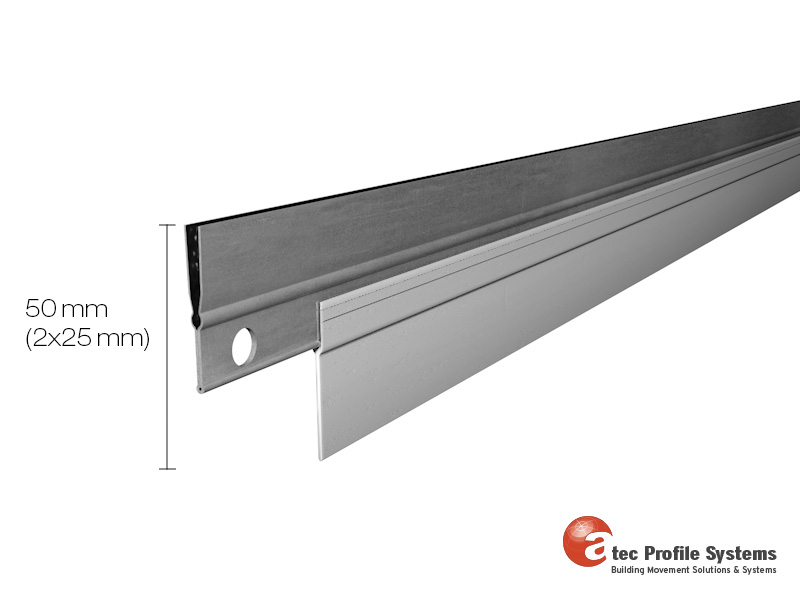

For example MicrAtec : SE-005-050 denotes a control joint 50mm high.
When specifying or ordering please select RUBBER or VAMAC core colour as black, grey or stone.
