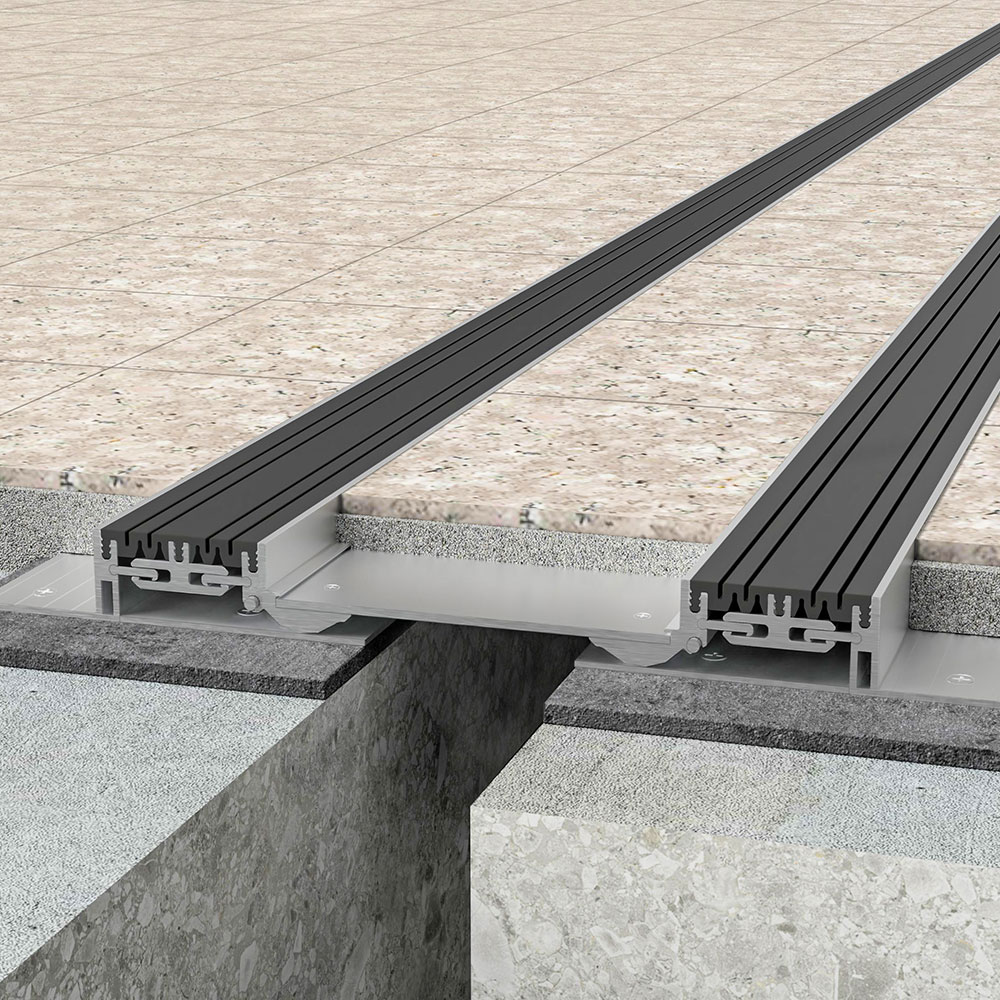

MaxAtec 200-A01/A02 – Recessed Floor Expansion Joint

MaxAtec 200 A01-A02

Surface
Ribbed surface for improved slip resistance Centre supported and Americans with Disabilities Act (ADA) compliant across the entire movement cycle.

Movement
Good movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind

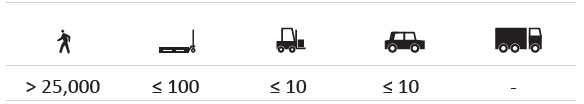

Traffic Frequency per day

Downloads

Request Price/Sample

Category: MaxAtec Tags: MaxAtec-Floor, Recessed

Description
Additional information

Description

MaxAtec 200-A01/A02: recessed floor expansion joint, gap widths 25–75 mm, ribbed slip-resistant surface, ADA compliant, ASTM E-1399 rated.

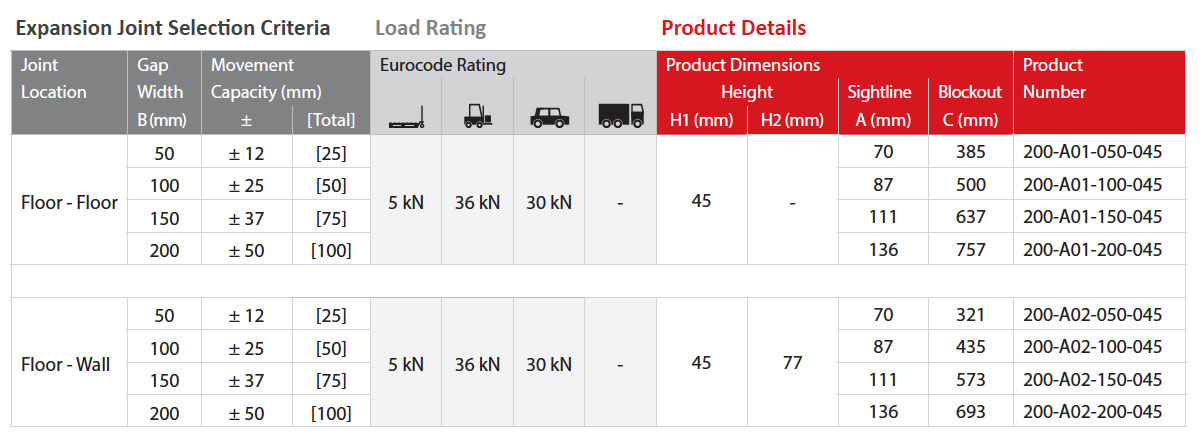

Expansion Joint Selection Criteria				Load Rating				Product Details
Joint Location	Gap Width B (mm)	Movement Capacity (mm)		Eurocode Rating				Product Dimensions Height		Sightline A (mm)	Blockout C (mm)	Product Number
Joint Location	Gap Width B (mm)	±	[Total]					H1 (mm)	H2 (mm)	Sightline A (mm)	Blockout C (mm)	Product Number

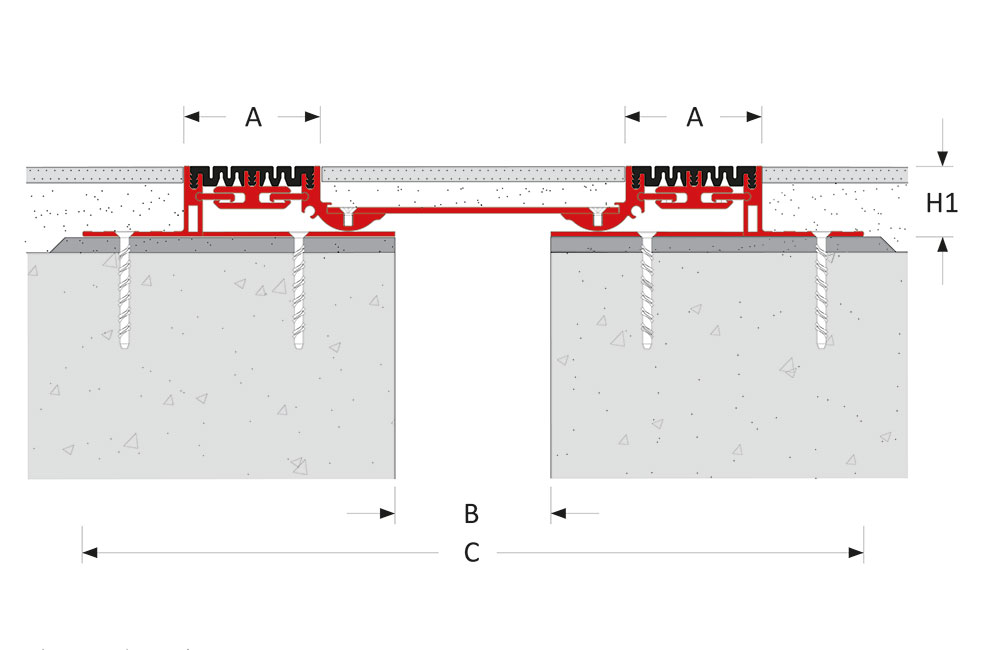

Floor – Floor	050	± 12	[25]	5 kN	36 kN	30 kN	–	45	–	70	385	200-A01-050-045
	100	± 25	[50]							87	500	200-A01-100-045
	150	± 37	[75]							111	637	200-A01-150-045
	200	± 50	[100]							136	757	200-A01-200-045

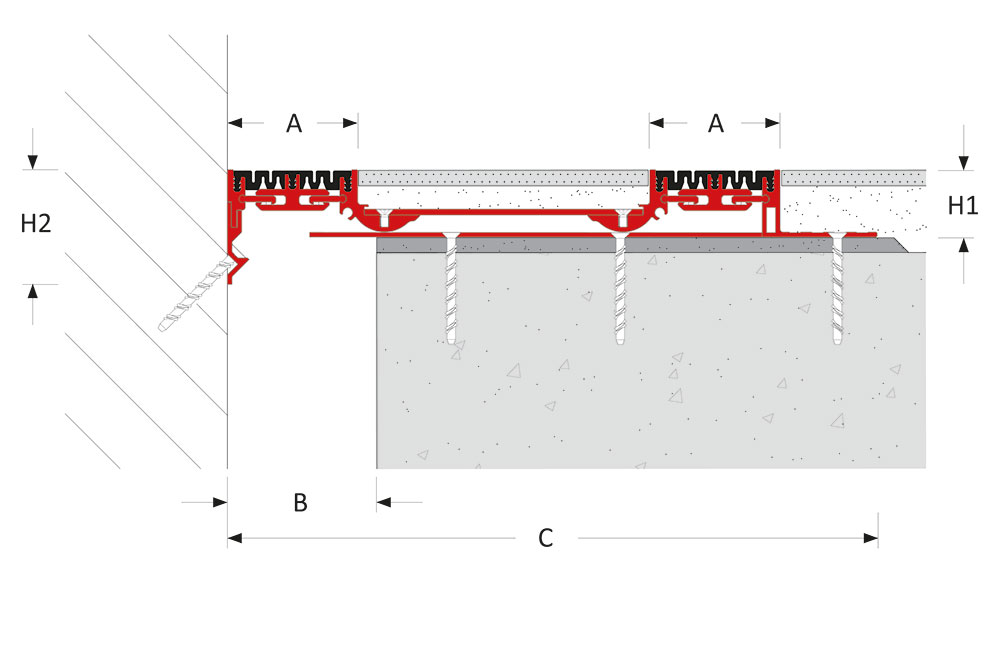

Floor – Wall	050	± 12	[25]	5 kN	36 kN	30 kN	–	45	77	70	321	200-A02-050-045
	100	± 25	[50]							87	435	200-A02-100-045
	150	± 37	[75]							111	573	200-A02-150-045
	200	± 50	[100]							136	693	200-A02-200-045

Additional information

Gap width(s)	50, 100, 150, 200 mm
Height(s)	45 mm
Metal type(s)	6063 T5 & T6 Aluminium
Seal colour(s)	Black (RAL 7021) Grey (RAL 7038) Beige (RAL 1015)
Fire barrier	120 minutes
Waterproofing	Moisture barrier
Pre-assembly in factory	Contact Vexcolt
