Description

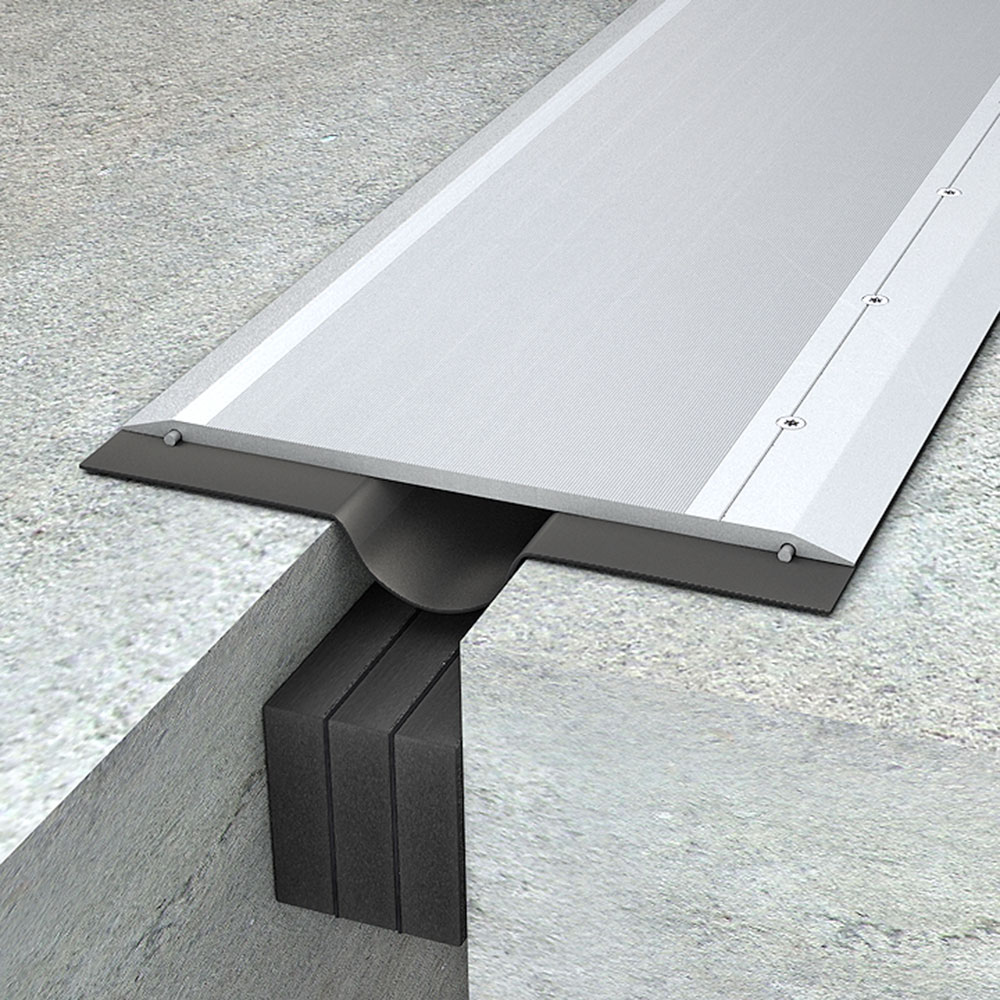

MegAtec 376 C01 C02 is a heavy-duty aluminium floor and wall expansion joint for 50–150 mm gaps, offering high movement , fire resistance and ADA complient.

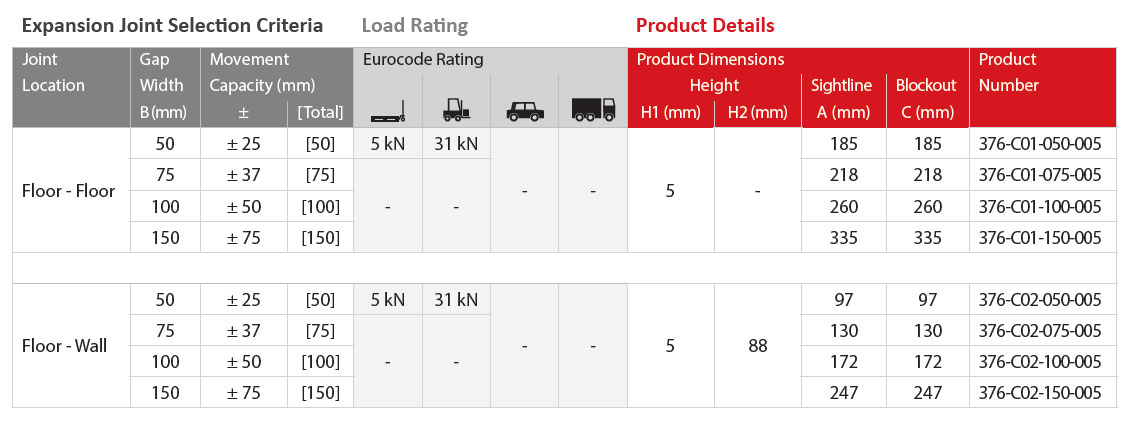

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap Width B (mm) |
Movement Capacity (mm) |
Eurocode Rating | Product Dimensions Height |
Sightline A (mm) |
Blockout C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||

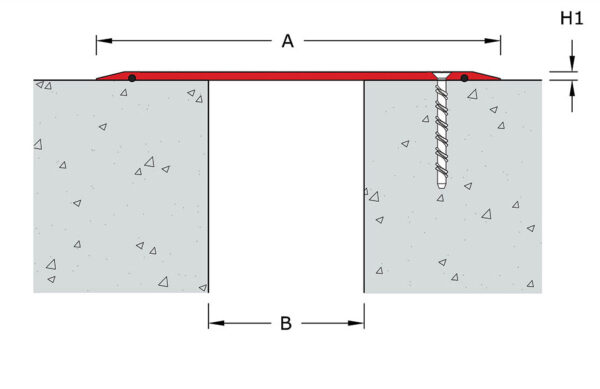

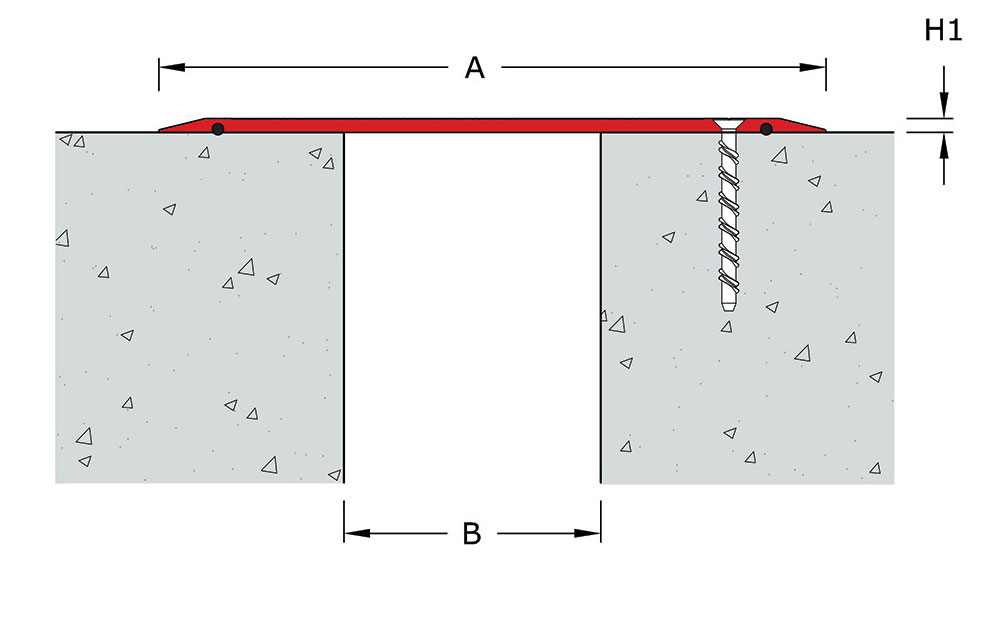

| Floor – Floor | 050 | ± 25 | [50] | 5 kN | 31 kN | – | – | 5 | – | 185 | 185 | 376-C01-050-005 |
| 075 | ± 37 | [75] | – | – | 218 | 218 | 376-C01-075-005 | |||||
| 100 | ± 50 | [100] | 260 | 260 | 376-C01-100-005 | |||||||
| 150 | ± 75 | [150] | 335 | 335 | 376-C01-150-005 | |||||||

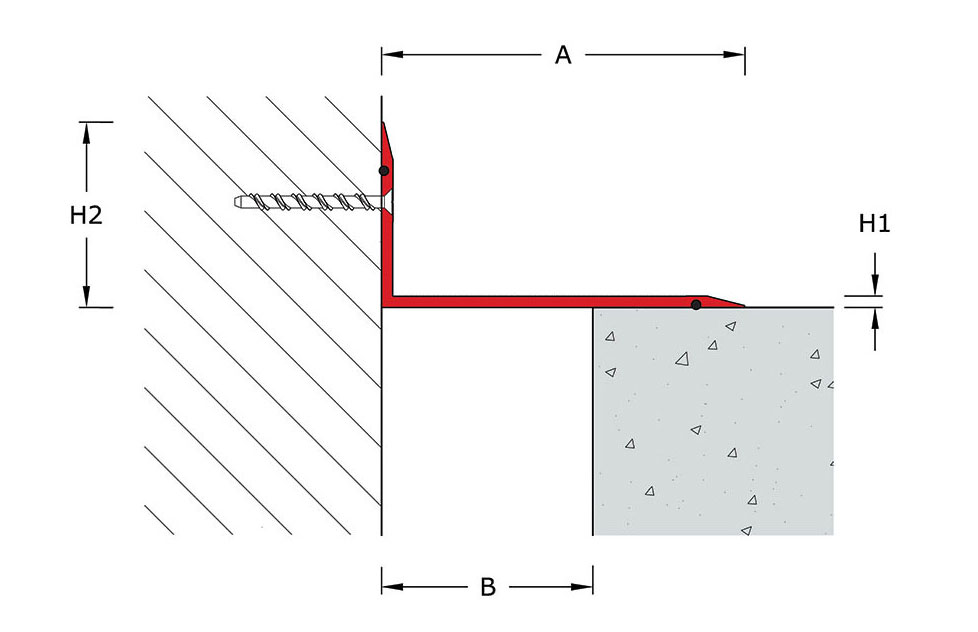

| Floor – Wall | 050 | ± 25 | [50] | 5 kN | 31 kN | – | – | 5 | 88 | 97 | 97 | 376-C02-050-005 |
| 075 | ± 37 | [75] | – | – | 130 | 130 | 376-C02-075-005 | |||||
| 100 | ± 50 | [100] | 172 | 172 | 376-C02-100-005 | |||||||
| 150 | ± 75 | [150] | 247 | 247 | 376-C02-150-005 | |||||||
