Description

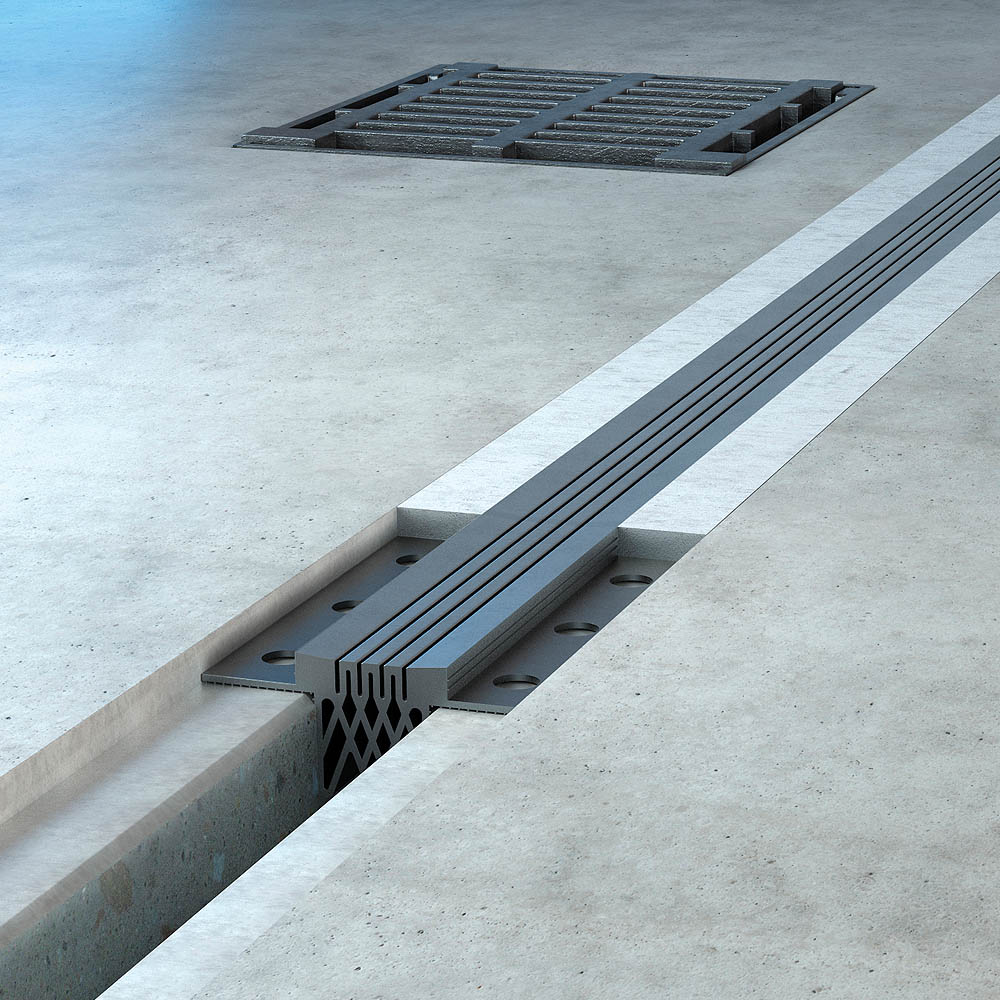

The FlexAtec 1210-A01 is an ADA-compliant floor expansion joint with ribbed slip-resistant surface, 120-minute fire barrier.

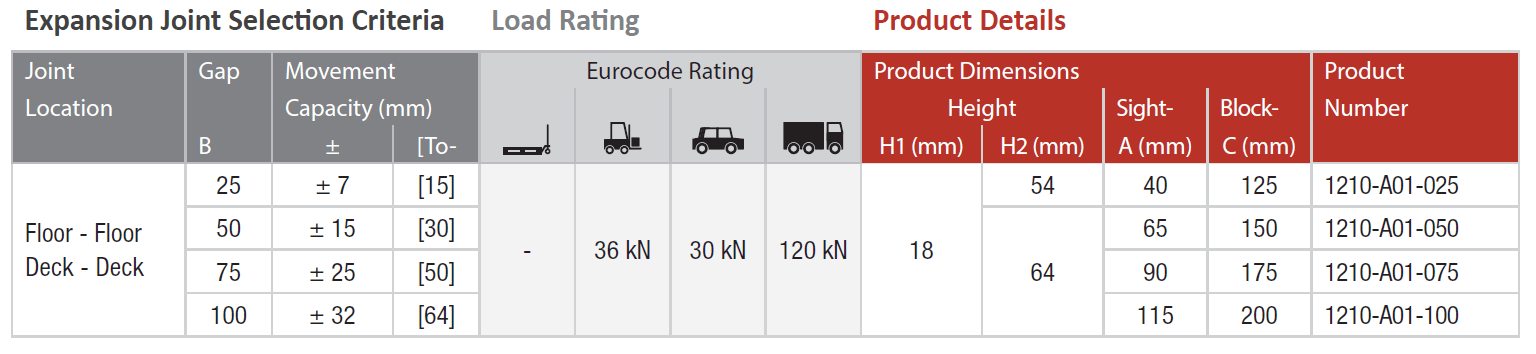

| Expansion Joint Selection Criteria | Load Rating | Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Joint Location |
Gap B (mm) |
Movement Capacity (mm) |

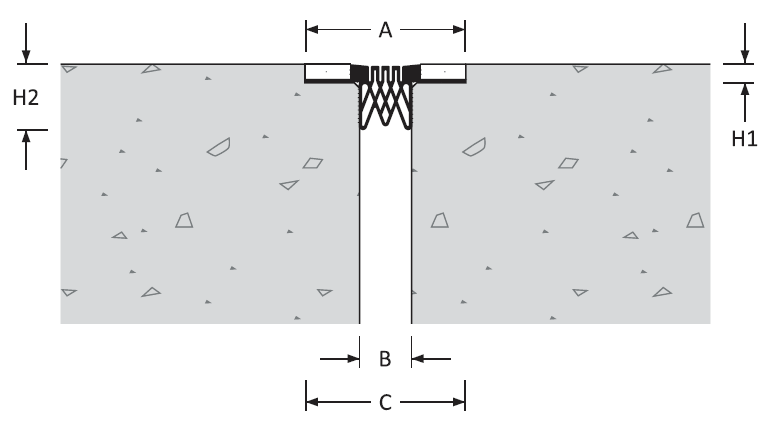

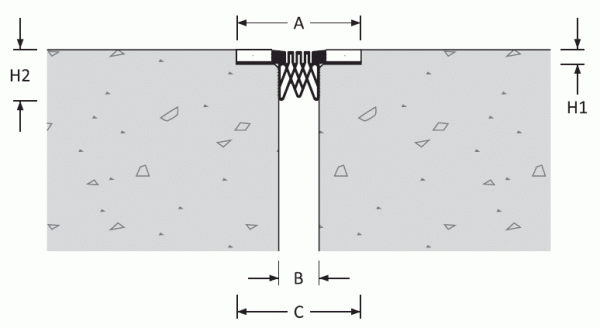

Eurocode Rating | Product Dimensions Height |
Sight- A (mm) |
Block- C (mm) |
Product Number |
|||||
| ± | [Total] |  |
 |
 |
 |
H1 (mm) | H2 (mm) | |||||
| Floor – Floor Deck – Deck |
25 | ± 7 | [15] | – | 36 kN | 30 kN | 120 kN | 18 | 54 | 40 | 125 | 1210-A01-025 |
| 50 | ± 15 | [30] | 64 | 65 | 150 | 1210-A01-050 | ||||||
| 75 | ± 25 | [50] | 90 | 175 | 1210-A01-075 | |||||||
| 100 | ± 32 | [64] | 115 | 200 | 1210-A01-100 | |||||||
